Planning Before Installing 3-3
3.1.2 Determining Total Area Required Based on Drive Dimensions
Drive dimensions and weights are listed in table 3.2. Overall drive dimensions are
illustrated in figure 3.1 as an aid in calculating the total area required by the drive.
Table 3.2 – Dimensions and Weights for 2 to 30 Amp Drives
U.S.
Model
Number
European
Stock
Number
Physical Dimensions in mm (in) Weight
Width Dim A
mm (in)
Height Dim B
mm (in)
Width Dim C
mm (in)
Mounting
Height Dim D
mm (in)
Depth Dim E
mm (in) kg lb
31ER40xx
31ET40xx
896.01.11
896.01.31
95 (3.74) 378 (14.88) 38 (1.50) 422 (16.61) 200 (7.87) 5.5 12
38ER40xx
38ET40xx
896.02.11
896.02.31
95 (3.74) 378 (14.88) 38 (1.50) 422 (16.61) 200 (7.87) 5.5 12
55ER40xx
55ET40xx
896.03.11
896.03.31
95 (3.74) 378 (14.88) 38 (1.50) 422 (16.61) 200 (7.87) 5.5 12
85ER40xx
85ET40xx
896.05.11
896.05.31
95 (3.74) 378 (14.88) 38 (1.50) 422 (16.61) 200 (7.87) 5.5 12
126ER40xx
126ET40xx
896.06.11
896.06.31
95 (3.74) 378 (14.88) 38 (1.50) 422 (16.61) 200 (7.87) 5.5 12
150ER40xx
150ET40xx
896.07.11
896.07.31
95 (3.74) 378 (14.88) 38 (1.50) 422 (16.61) 200 (7.87) 5.5 12
240ER40xx
240ET40xx
896.08.11
896.08.31
195 (7.68) 374 (14.72) 61 (2.40) 422 (16.61) 200 (7.87) 10 22
300ER40xx
300ET40xx
896.09.11
896.09.31
195 (7.68) 374 (14.72) 61 (2.40) 422 (16.61) 200 (7.87) 10 22

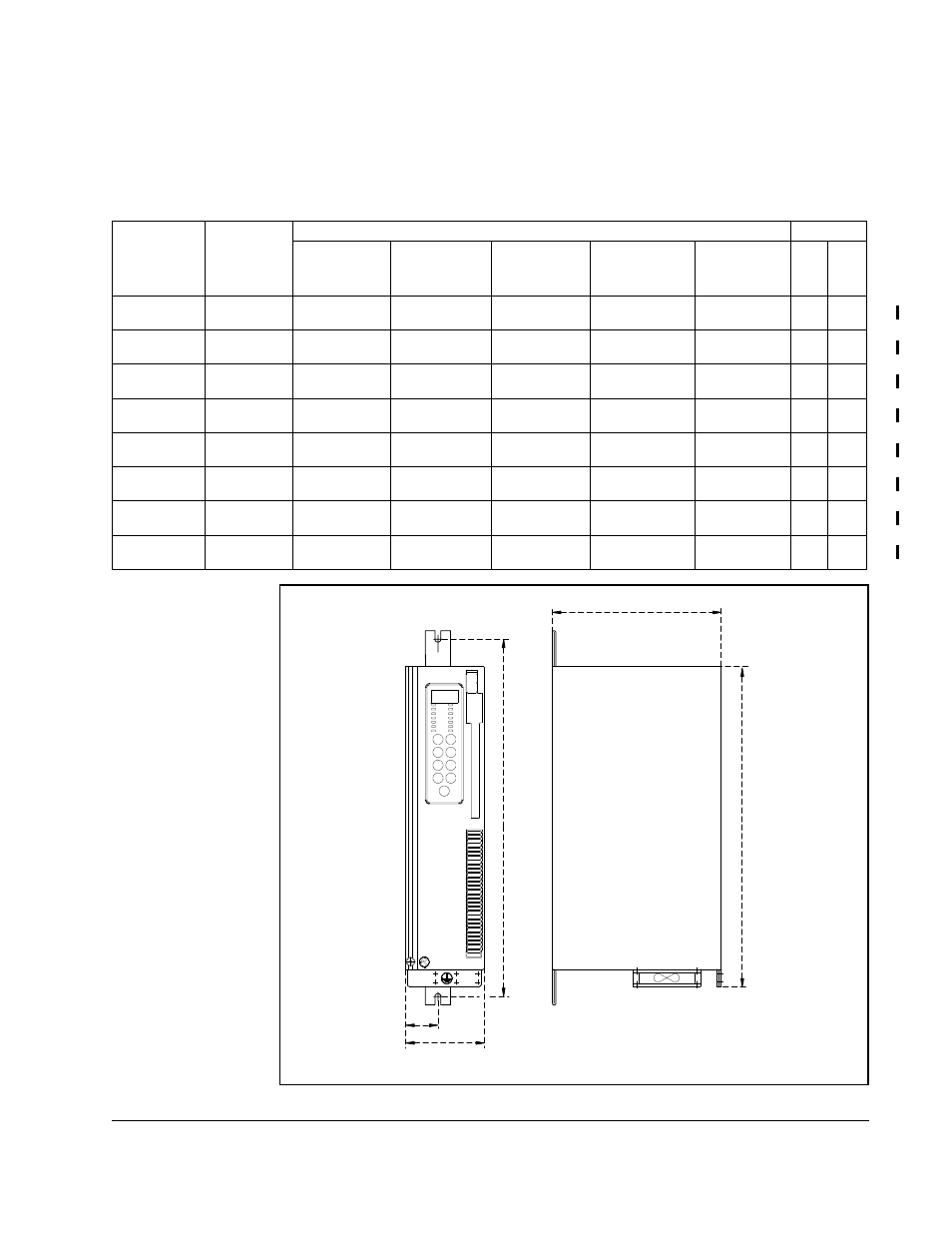

Figure 3.1 – Dimensions for 2 to 30 Amp Drives
A
B
E
D
C
Front View Side View
