Rockwell Automation 1203-USB Converter User Manual
Page 36
3-4
Configuring the Converter
PowerFlex 1203-USB Converter User Manual
Publication DRIVES-UM001D-EN-P
9. Enter the following settings.
10. Click OK.

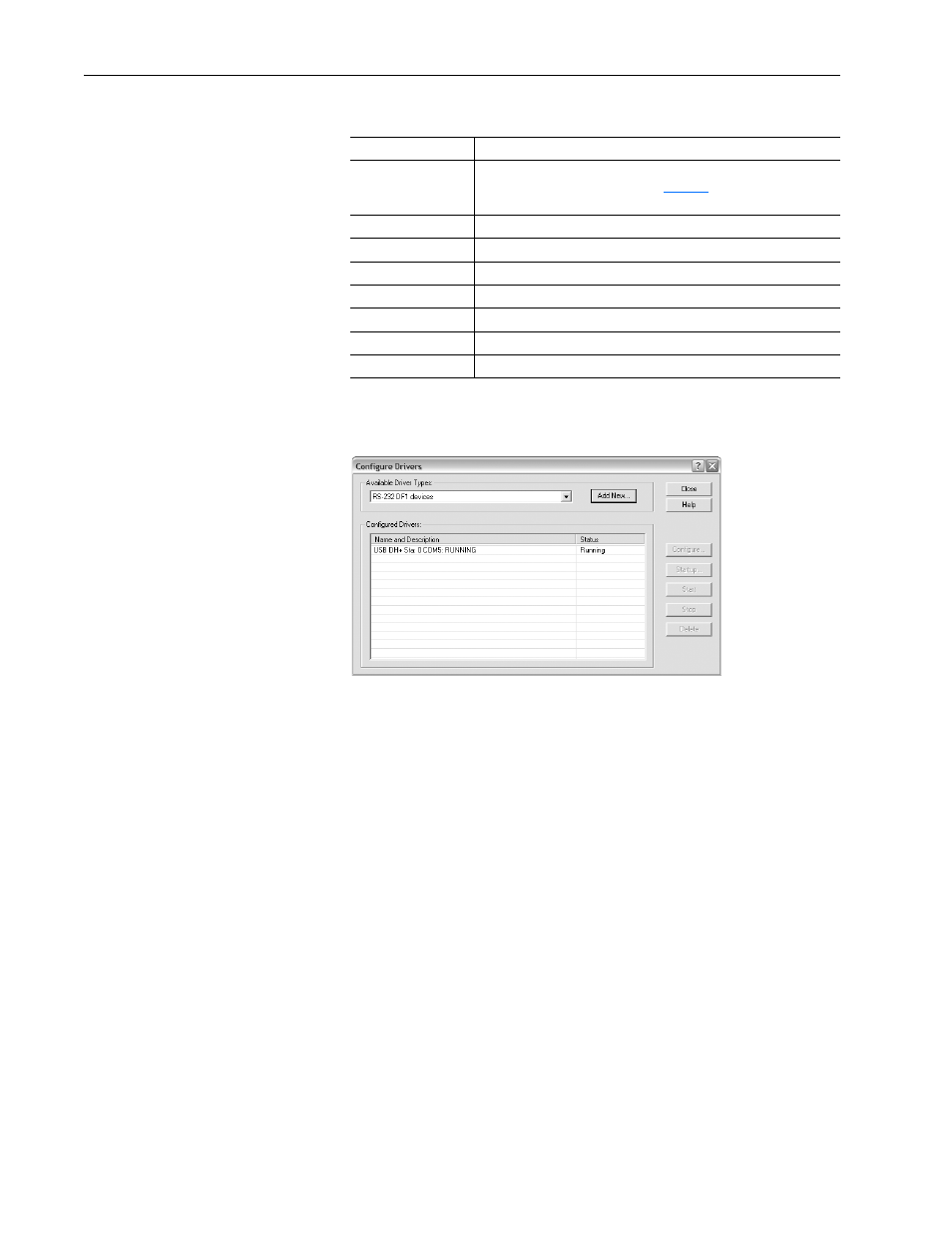

The Configure Drivers dialog box appears.
11. Verify that the status of the newly created driver is ‘Running’.
12. Click Close.
13. From the Communications menu, choose RSWho to display the browse
window.
14. Expand the treeview in the left pane to display the ‘DPI’ or ‘DSI’ icon
to verify that the driver is communicating with the device.
Depending on the type of drive to which the 1203-USB converter is
connected, the converter will show up as either a DSI device (DSI icon)
or DPI device (DPI icon). The browse window should look similar to
this example window.
Configuration Field
Setting
Comm Port
Select the same COM port established during installation of the
1203-USB driver (noted in step 1 on
). For this example,
COM5 is used.
Device
1770-KF2/1785-KE/SCANport
Baud Rate
115200
Station Number
00 (default)
Parity
None (default)
Error Checking
BCC (default)
Stop Bits
1 (default)
Protocol
Full Duplex (default)
