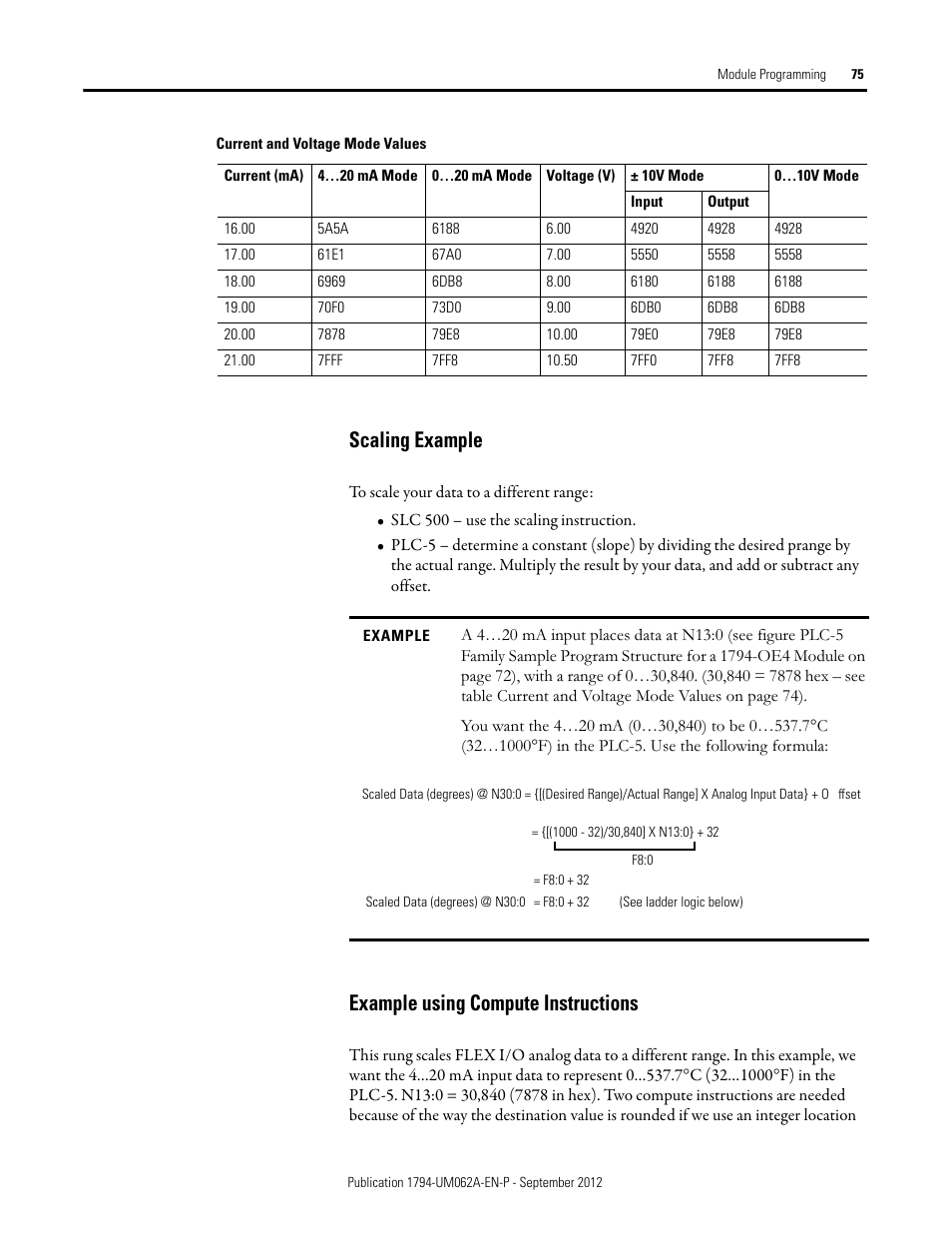

Scaling example, Example using compute instructions, Scaling example example using compute instructions – Rockwell Automation 1794-XXXX FLEX I/O High-Density Analog Modules User Manual
Page 83
