Page 41

3–2
Downloading Match Codes from a Host Device
Publication 2755-6.8

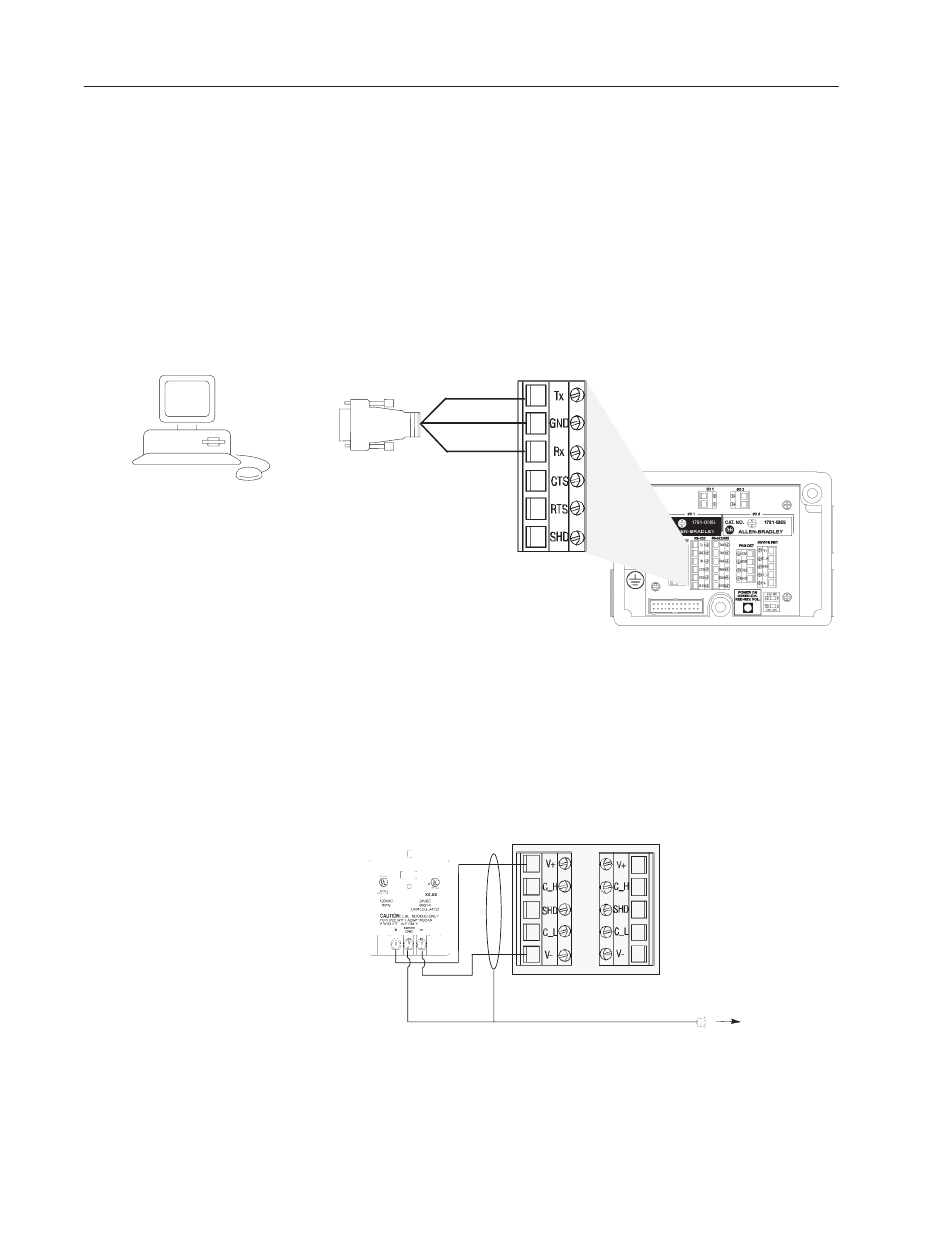

The following illustration shows the wiring base connections
between the AdaptaScan Bar Code Reader and the personal
computer. This RS-232 serial connection is used to download match
codes to the reader from a terminal emulator. Do not connect the
cable to the computer until after the application is downloaded to the
reader (see page 3–10).
Create a cable using Belden 8303 (or equivalent) and a connector (to
match your computer’s RS-232 port). The other end of the cable is
wired to the RS-232 port in the reader wiring base.
Tx
GND
RX
To Computer
Wiring Base of Reader
Use Belden 8303 (or equivalent)
To Connector Compatible
with Your Computer RS-232 Port
The following illustration shows how to connect a 2755-PW46 or
-PW47 power supply to a single bar code reader.
Use a shielded cable (Belden 9316 recommended) to make the
connections. Connect the shield to the ground screw on the reader’s
wiring base.
V-
24V+
Ground Screw
on Wiring Base
Reader
2755-PW46
Power Supply
DeviceNet Connector
Verify the connection by applying power to the wiring base and
observing the polarity LED. The LED should be green. If the LED
is red, the polarity needs to be reversed. Disconnect power from
wiring base until the reader is installed.
Connecting a Computer to
the Reader
Connecting a Power
Supply to the Reader
