What is a label setup – Rockwell Automation 2755 AdaptaScan Software User Manual
Page 85
6–3
Publication 2755-838

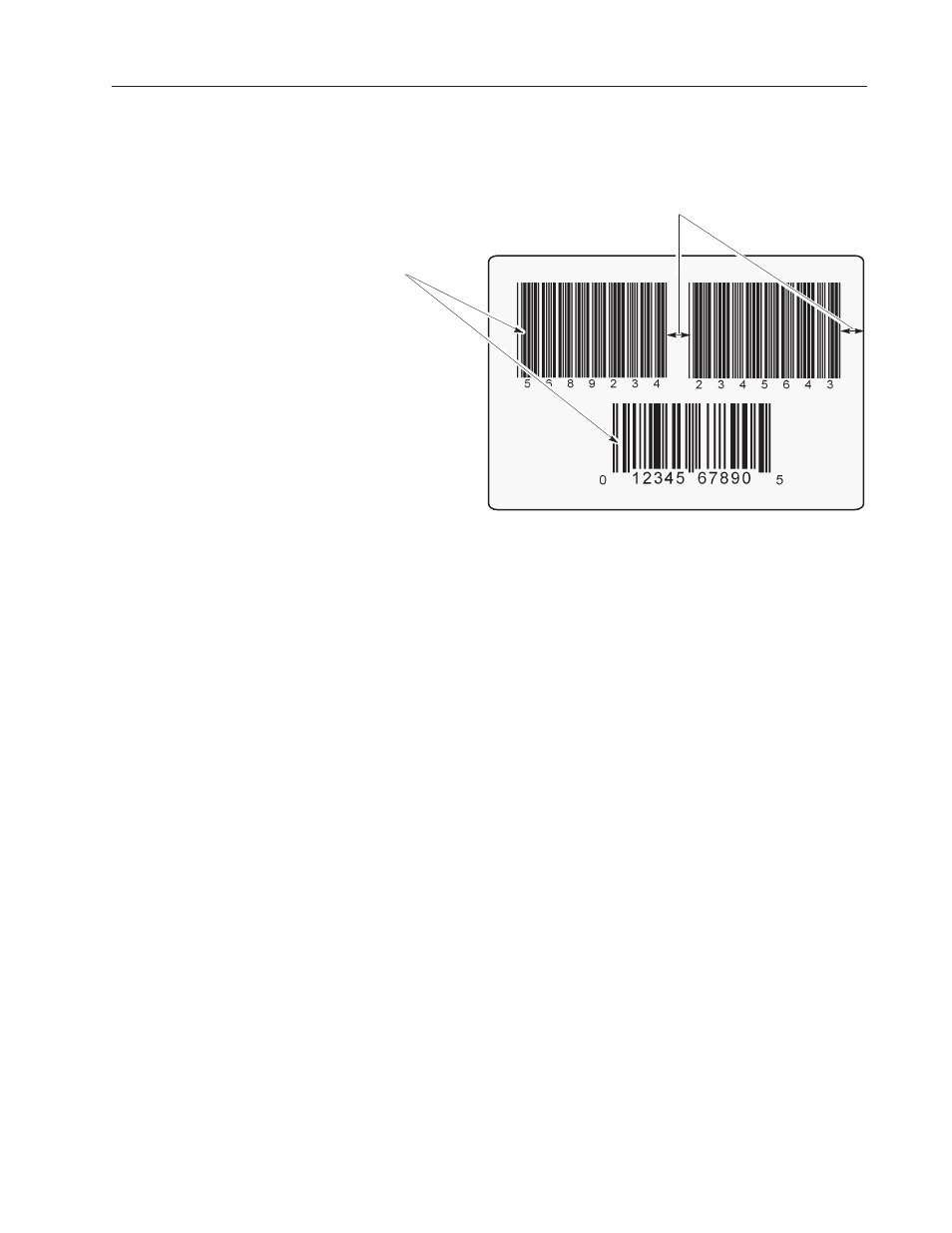

A label setup defines what labels the Reader is to scan. A typical
label is defined below.
Model Number
Manufacturing No.
Symbols Per Scan
Two Code 39 bar code symbols
are scanned followed by a single
UPC-A symbol. Symbols per
Scan is set to Any.
Symbology
Two Code 39 bar code symbols are scanned followed by a single
UPC-A symbol. Code 39 labels do not use a check character and the
UPC-A label does not have any supplements.
Quiet Zone Ratio
Set to default of 7.
Negative Image
All symbols are positive images (black bars) so Negative Image is not
selected.
Specific Lengths
UPC-A symbols are always 12 characters so a length cannot be spe-
cified. The Code 39 symbols are set to a specific length of 7.
Indentifier
Identifier is not required.
What is a Label Setup?
