Rockwell Automation 2755 AdaptaScan Software User Manual
Page 178
12–6
Publication 2755-838
4. Highlight the Reader configurations you want to upload.
Readers selected for upload may or may not be part of the current
project but only select Readers that are online (online Readers
display the connection icon)

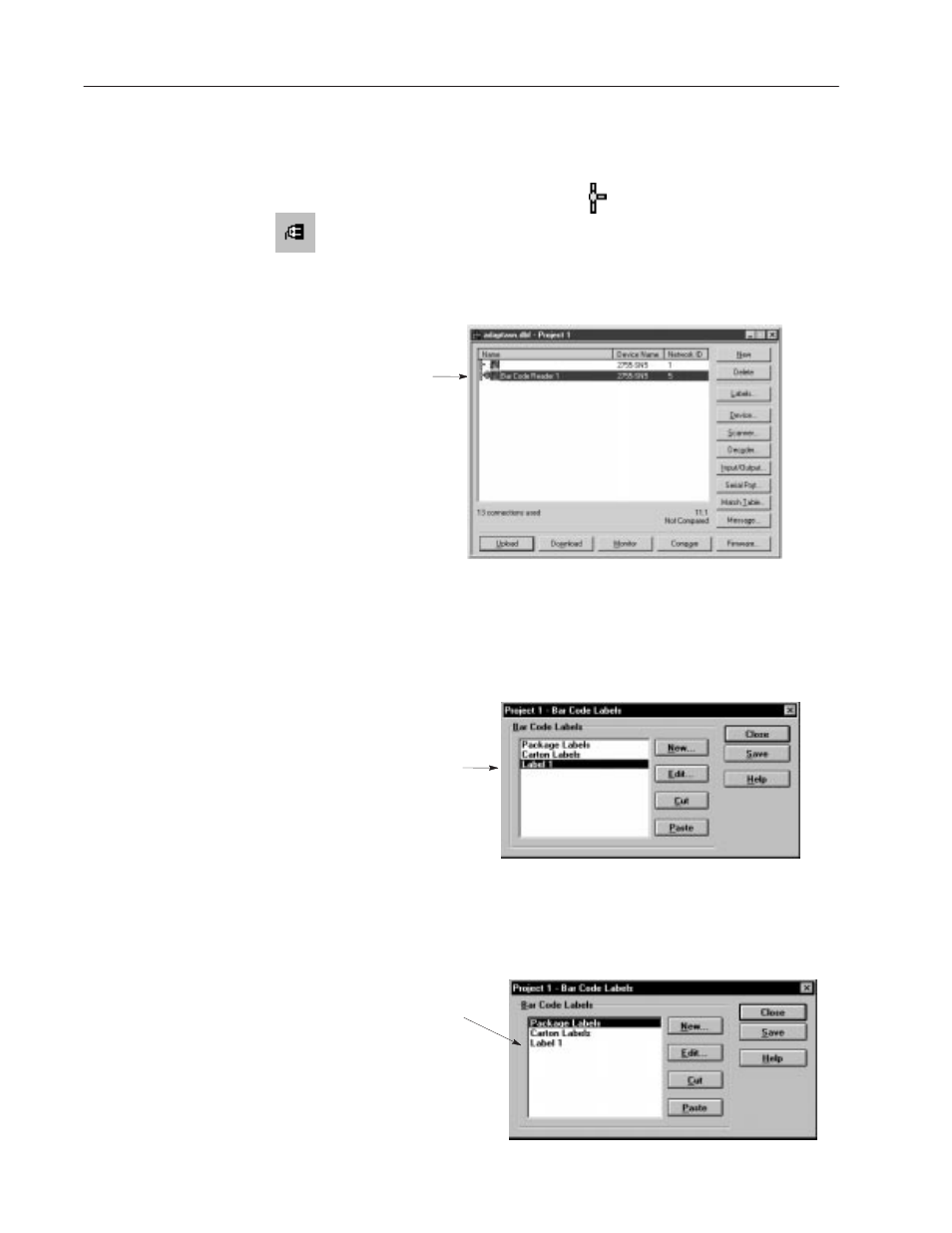

5. On the Project Window, click the Upload button or click the
upload icon on the toolbar .
The Reader configuration is uploaded to the AdaptaScan
Software (in this example Reader 1).
Uploaded
Configuration
6. If you open the uploaded configuration, note that all of the
configuration names are set to their default values. The Reader’s
label setup data is added to the existing label setups currently in
the project. Shown below is the Bar Code Labels dialog.
Uploaded
Label Setup
If you upload the same label data from the same or different
Reader, it will use the previously existing label from the project.
A duplicate label setup is not created.
First Label Setup
Uploaded
