Seven discrete DeviceNet inputs are available for each Reader.
These inputs are listed on the available inputs on the Input & Output
dialog. Use these inputs like any other trigger source. The
DeviceNet Input dialog allows you to assign a name to the input.

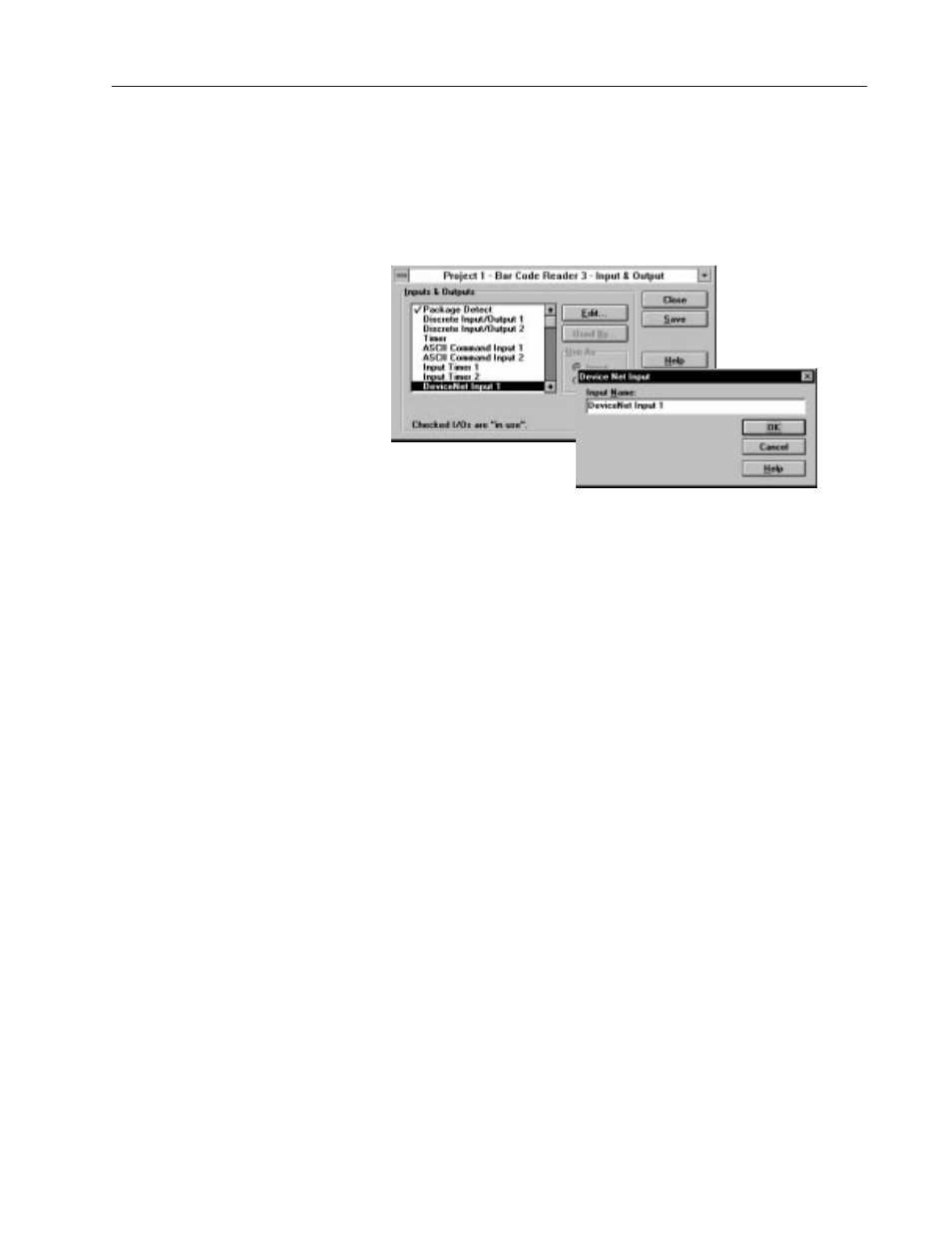

Open this dialog by selecting a DeviceNet Input from the list on the
Input & Output dialog and clicking the Edit button.
Each input can only be used once and inputs are only available for
use by the Reader configuring the input. For example, if you
configure a DeviceNet input for Bar Code Reader 2, you will only be
able to use DeviceNet inputs from Bar Code Reader 2. Once
selected, an input will not be available for use by other
configurations (appears greyed out on dialogs).
If you need to trigger more than one function using a single input,
“chain the triggers”. For example, DeviceNet Input #1 triggers
decoding on a Reader. The match function for the Reader is then
triggered by the [decoder] function.
Configuring DeviceNet
Inputs
☞
Or double-click on a
DeviceNet Input to open the
dialog.
