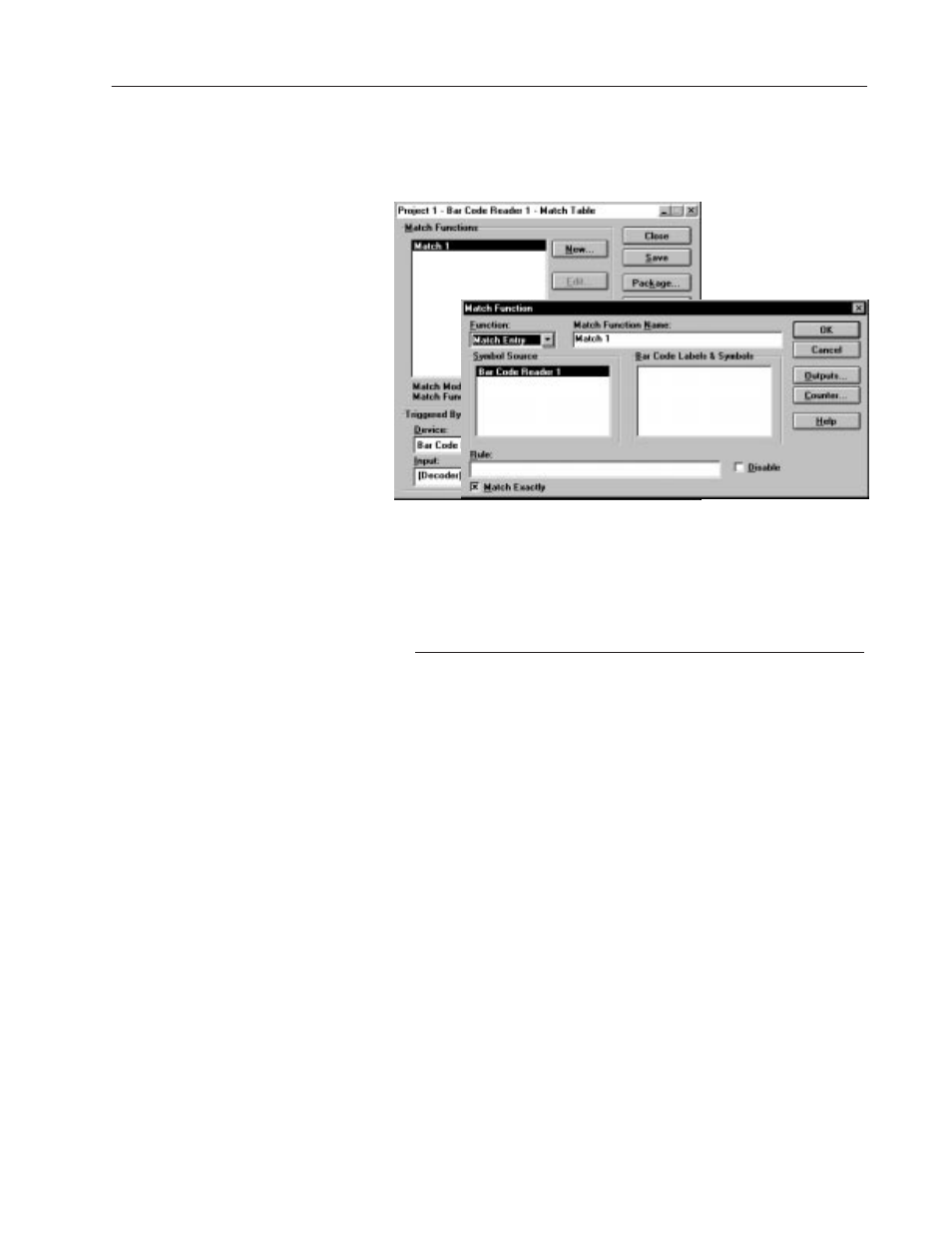

The Match Function dialog defines both the contents of the match
table and the source of the symbols to be matched. Open this dialog
by selecting the New or Edit button on the Match Table dialog.
Functions
Specifies the type of match required between a match table entry and
decoded bar code data.
Select: To:
Match Entry Specify a match occurs when the contents of the Rule field
matches data from a bar code symbol.
Symbols Equal Specify a match occurs when the same symbol is decoded
from each of the specified sources.
Auto-Load Specify that bar code data is inserted into the match table as
the data is decoded. After Auto-Load has been completed, the
match function automatically changes to Match Entry.
Match Function Name
Specifies a unique name for the match function. This name appears
in the Match Table functions list and as a selection on the Packages
dialog where match functions are selected to define a package.
Symbol Source
Specifies the Reader decoding the bar code data being compared
with the match table entry. When a Reader is selected, the label
setups and label symbols that have been assigned to the Reader
appear in the Bar Code Labels and Symbols box.
Configuring the
Contents of Match Tables
☞
Or double-click the match
function to open the dialog.
