Publication 1756-UM534B-EN-P - November 2010 85
Link Module Configuration with RSLogix 5000 Project Chapter 4

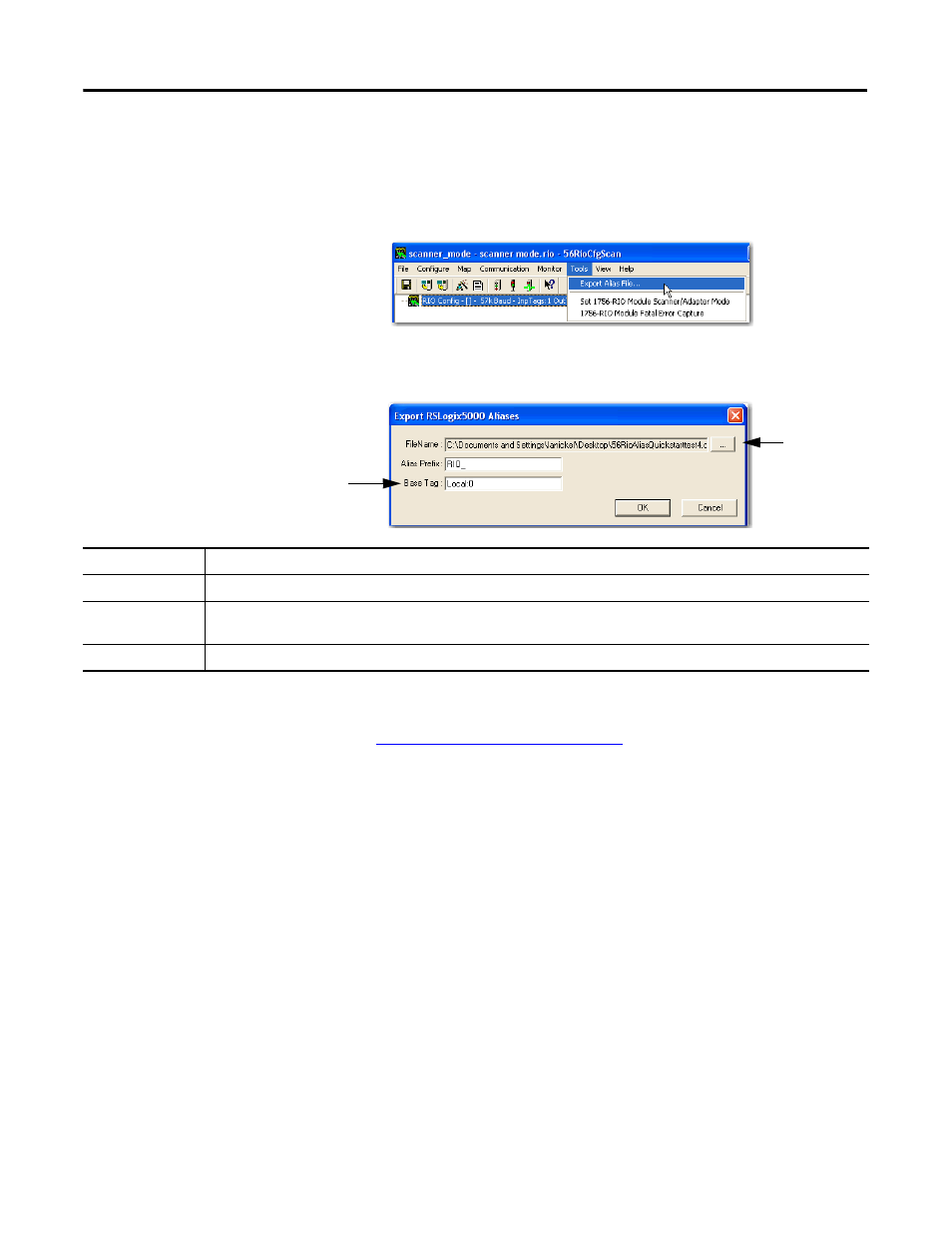

Export Aliases in Scanner Mode
To export aliases in scanner mode, follow these steps.
1. On the Tools menu, choose Export Alias File.
2. On the Export RSLogix 5000 Aliases dialog box, enter the FileName,
location, Alias Prefix, and Base Tag.
3. Click OK.
See Scanner Mode I/O Map on page 129 in Appendix C for more
information.
Field Description
FileName Use the browse button to change the file location.
Alias Prefix Use to distinguish between aliases for different 1756-RIO modules. If you have multiple 1756-RIO modules in the
RSLogix 5000 project, assign each module a unique Alias Prefix so that the tags for each one are unique.
Base Tag Use the base tag to identify the 1756-RIO module location on the ControlLogix chassis.
This example shows the 1756-RIO module location
in slot 0 of the local chassis.
Browse Button
