Chapter 2 Configure Scanner Mode
Configure Scanner
Summary The following list summarizes the steps to configure the 1756-RIO module in
scanner mode.
1. Set the baud rate.
2. Autoconfigure online racks on the network. (Make sure the controller is
set to Program Mode.)
3. Set the communication path.
4. Manually add any additional racks that are not online.
5. Manually add and configure block transfer modules.
6. Map/Automap the data.

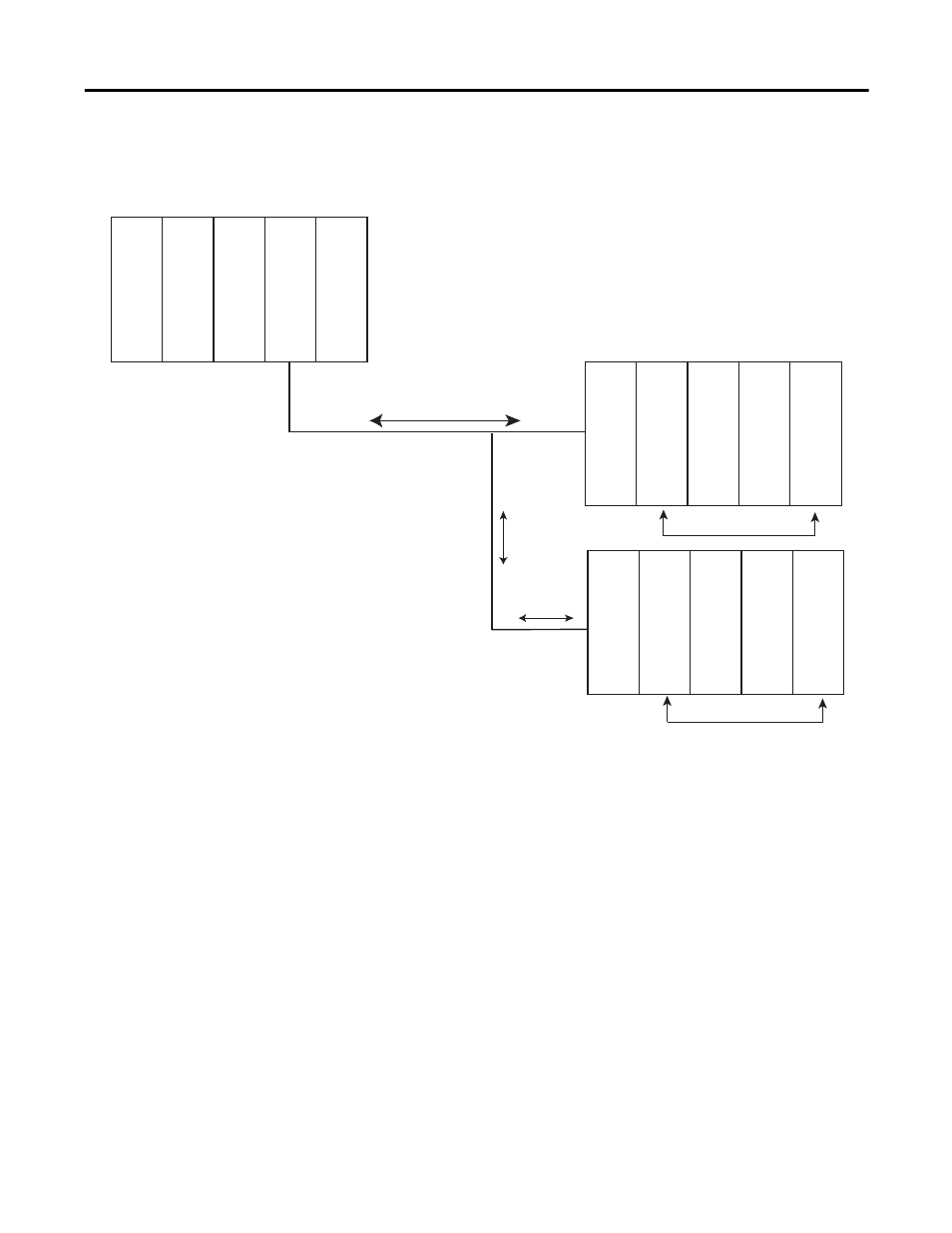

1756 C
ontr
oller
Remot
e I/O M
odule
Scanner M
ode
1771-ASB Remot
e I/O A
dapt
er
1771
I/O I/O I/O
1747-ASB Remot
e I/O A
dapt
er
1746
I/O I/O I/O
1771 I/O
1746 I/O
Univ
ersal Remot
e I/O Net
w
o
rk
Scanner Mode
44803
