48 Publication 1756-UM534B-EN-P - November 2010
Chapter 2 Configure Scanner Mode

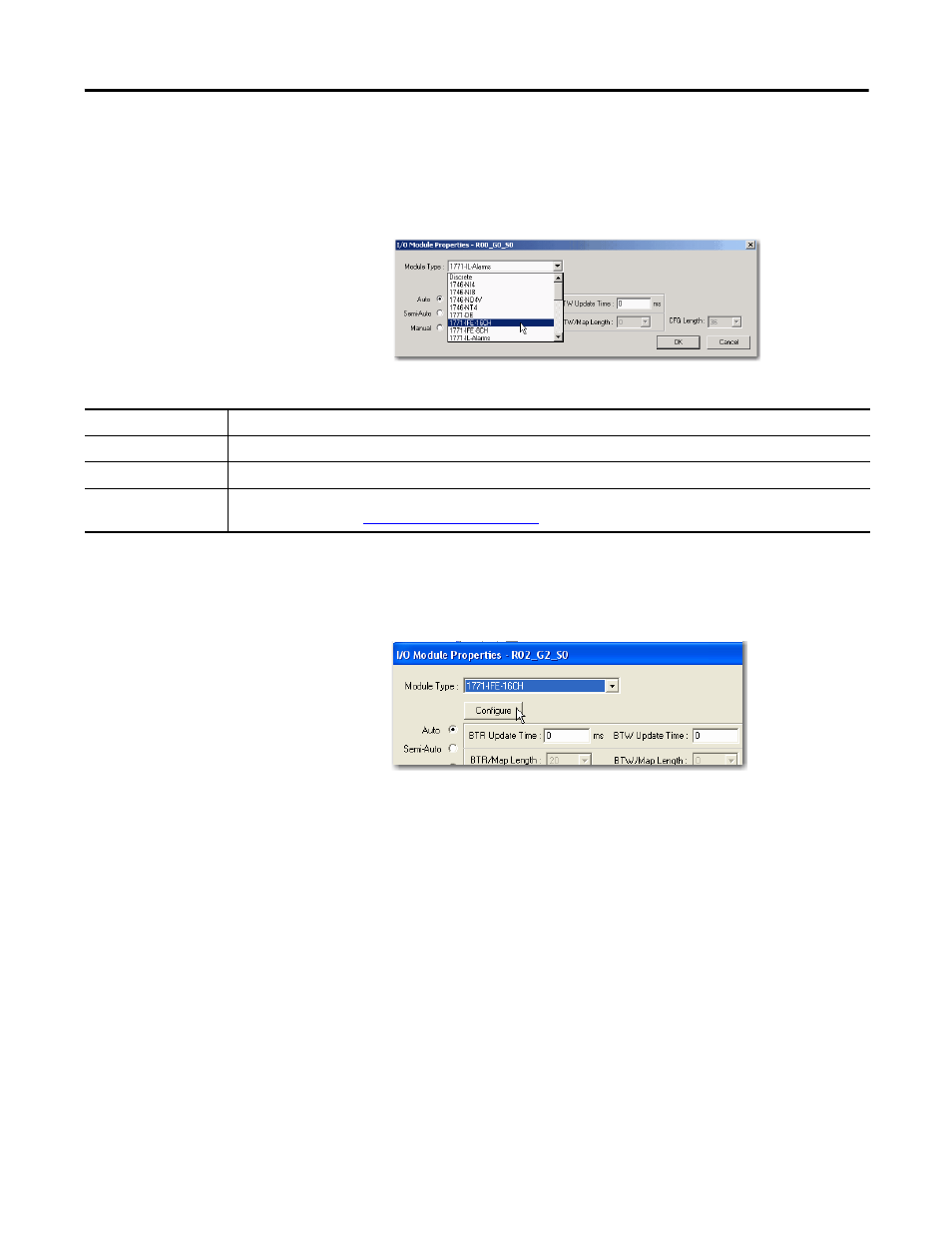

3. On the I/O Module Properties dialog box, from the Module Type pull-
down, select the type.
4. Click OK.
The I/O Module Properties dialog box displays.
5. Click Configure to display the BT Module Parameterization
configuration dialog box to configure the module.
This example shows the BT Module Parameterization dialog box for a
16-channel 1771-IFE module. Each module is different.
Use the dialog box to set parameters for a block transfer module. These
parameters are defined in the template file for the block transfer module
and are typical quantities, such as scaling parameters, and alarms.
Module Types
Type Description
Discrete A block transfer module does not exist at this location.
BT-MODULE Any other block transfer module not listed by part number in the system.
1746-xxx…1794-xxx Part number of block transfer (analog) modules with template files in the system that are compatible with the
1756-RIO module. See
Supported Modules on page 12 for the complete list.
