Configure Adapter Mode Chapter 3
Perform the AutoConfiguration
Follow these steps to perform autoconfiguration.

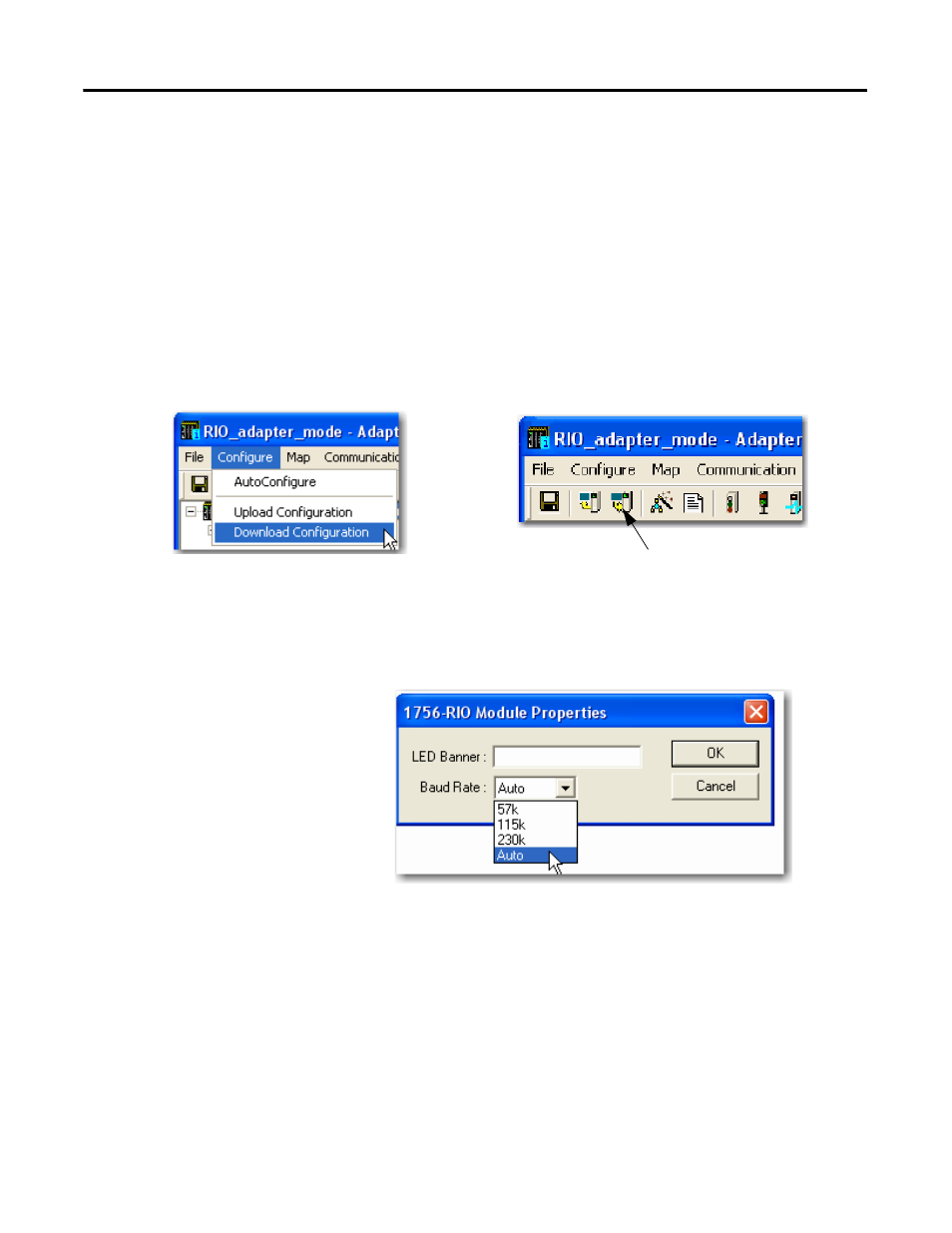

1. On the 56RioCfgAdpt dialog box, from the Configure menu, choose
Download Configuration, or click the Download Configuration button
on the toolbar.
This clears the previous configuration and downloads an empty
configuration to the 1756-RIO module.
2. Set the baud rate to Auto. On the 56RioCfgAdpt dialog box, right-click
on the controller in the I/O tree, and from the pull-down menu, select
1756-RIO Properties to enter the baud rate.
3. To automatically add block transfers, put the remote I/O scanner
module in Run mode (you set it to Program mode before you began the
autoconfiguration) and wait until the block transfers execute. Then put
the scanner back in Program mode.
Main Menu Toolbar
