Rockwell Automation 1746-BLM Blow Molding Module Installation Instructions User Manual
Page 26
26 Blow-molding Module
Publication 1746-IN014B-EN-P - January 2001

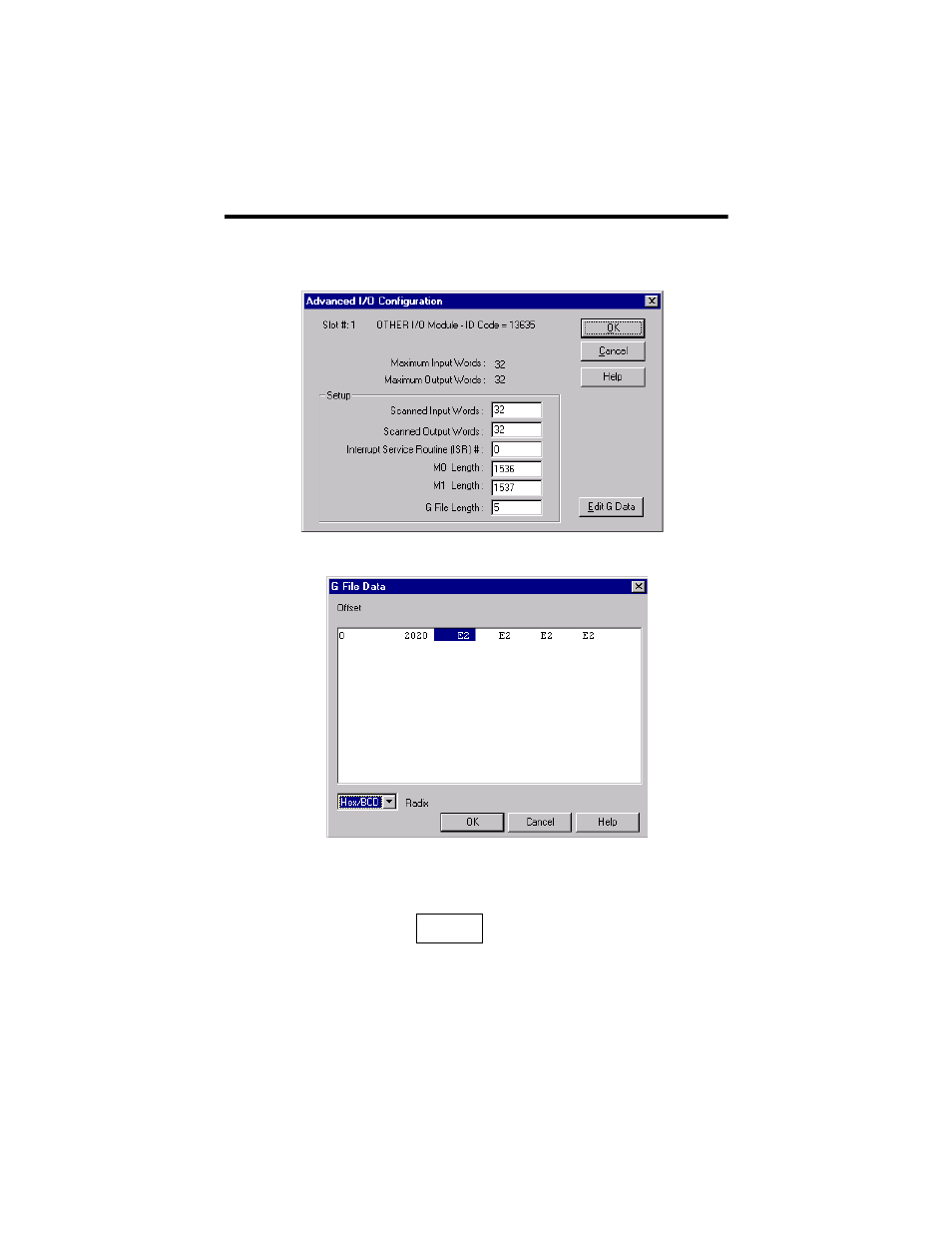

4. Select the Adv Configuration icon and launch it. Then select/enter:
a. Length of M0 file at 1536 words, M1 file at 1537 (listed in section 7).
b. Length of G file at 5 words.
5. Select and launch the Enter G Data icon.
a. Change the display radix to hex. You see:
b. Select word one (as shown) and enter the bit-selected data word that
corresponds to axis 1. You determine the equivalent hex value of this
word in next section. Repeat for G-file words 2-4 (for axes 2-4).
0 2020 0 0 0 0
