Overview
9
• Working temperature of -40…70 °C, humidity: 5…95% RH, which is
applicable for a range of different environments.
Controller Description

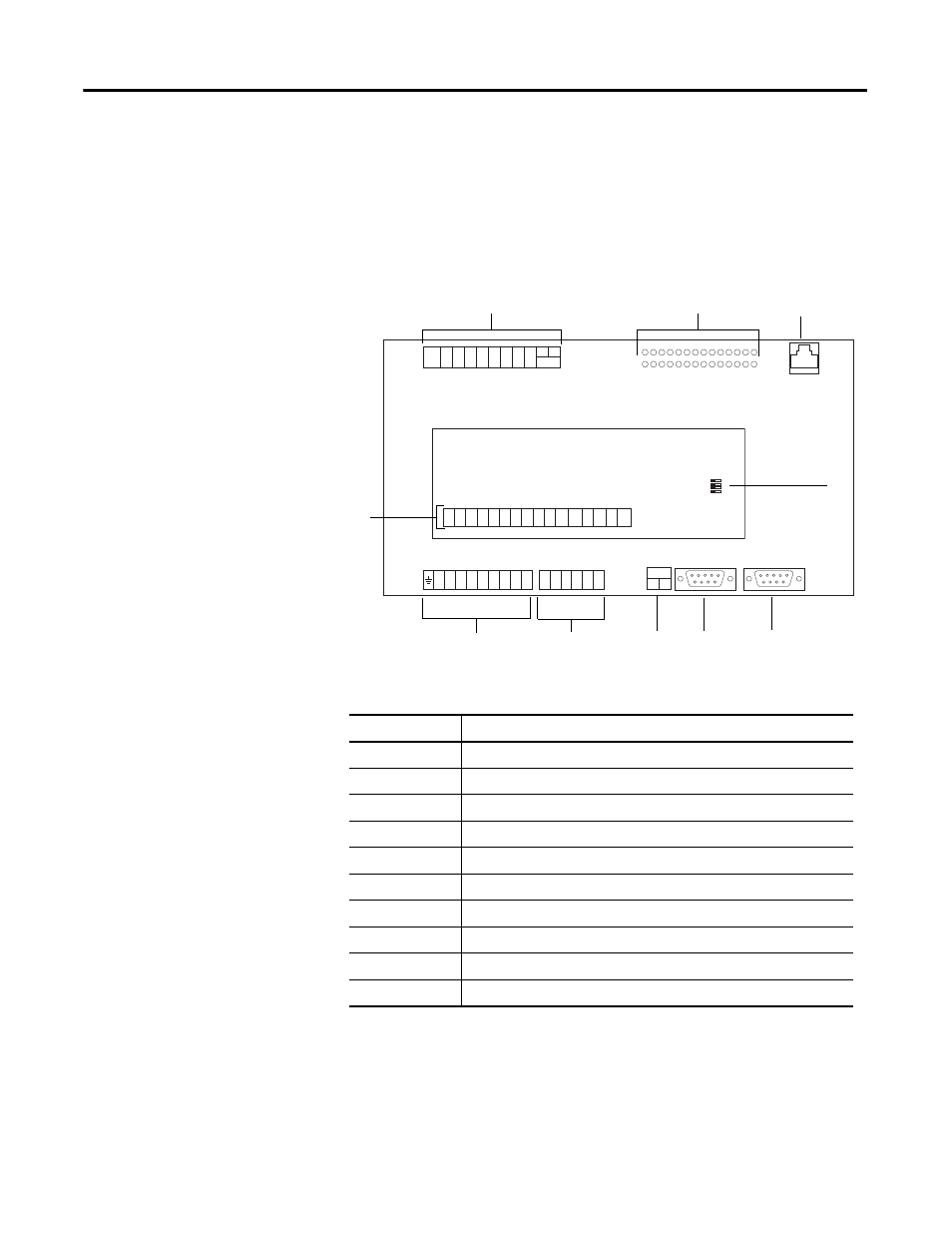

The components of the DataSite controller are shown here.
Item
Description
1
Discrete Input and wake-up connectors
2
Status indicators
3
Ethernet connector
4
RS232 COM 2 connector
5
RS232 COM 1 connector
6
RS485 COM 1 connector
7
Discrete Output connectors
8
Power Input and Analog Input connectors
9
HART, Pulse Input, and Analog Output connectors
10
Pulse Input Filter switches
DICOM DI0
V+ V- AI0 AI1 AI2 AI3 AI4 AI5 V-
DO0 DO1 DO2 DO3 V
DO+
V
DO-
DI1 DI2 DI3 DI4 DI5 DI6 DI7
WAKEUP
+
_
Data
+
_
19
20 21 22 23 24 25 26 27 28 29
2
3
4
5
6
7
8
9
10
1
11 12
13 14
15 16
17 18
P11
P10
H2-
H2+
H1-
H1+
H0-
H0+
P12 PI
COM
AOV+ AOV- AO0 AOV- AO1 AOV-
ON
0
1
2
37
36
35
34
33
32
31
30
38 39
40
41
42
43
44
45
44376
1
2
3
4
5
6
7
8
9
10
