Page 19

Publication 1758-UM001D-EN-P - June 2011
Installing the Controller
19
Controller Mounting
Dimensions

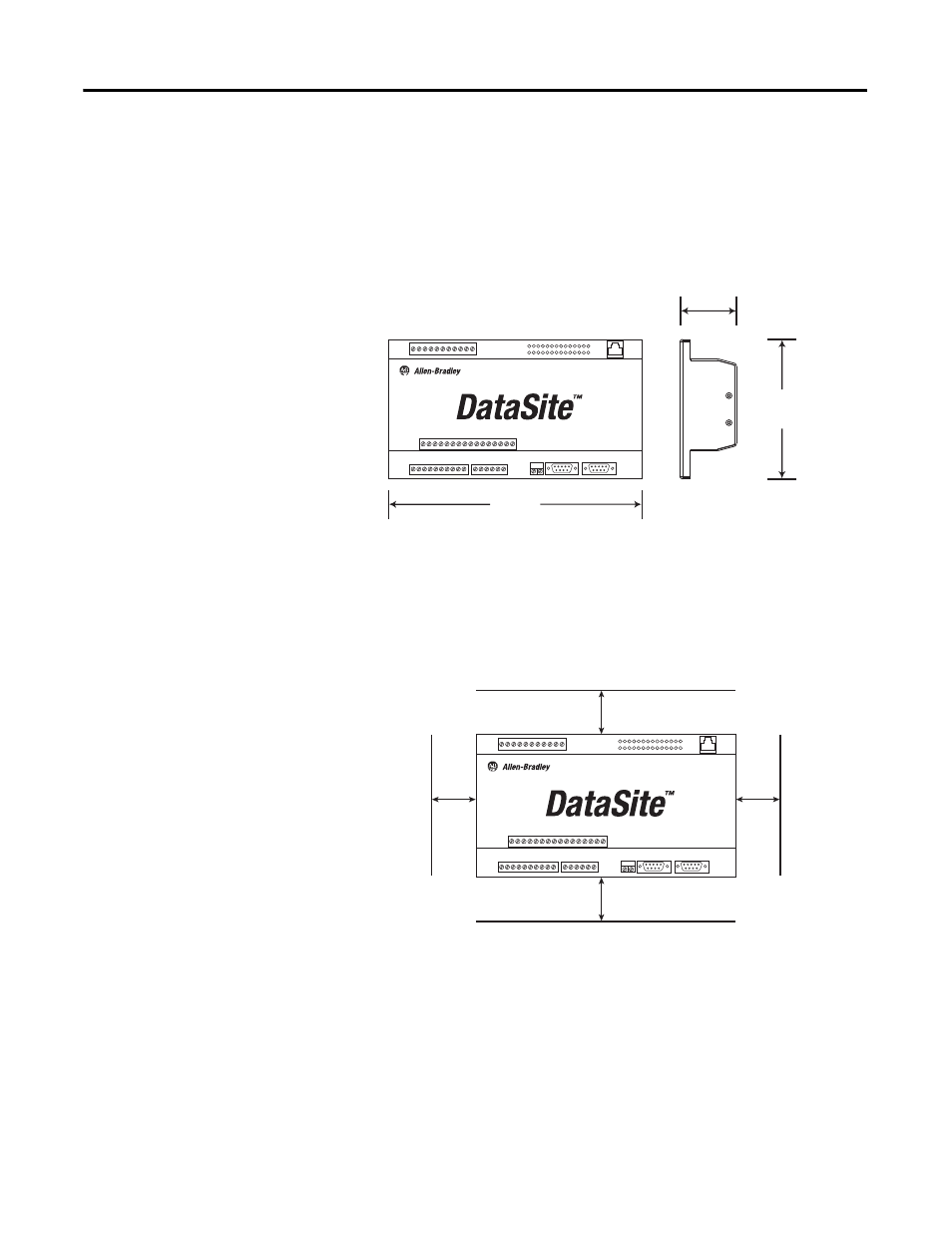

The dimensions of the DataSite controller are shown in this diagram.
The dimensions are identical for all DataSite catalog numbers.
1758-FLO301, 1758-FLO302, 1758-RTU201, 1758-RTU202
Controller Spacing
When mounting the controller, allow 25 mm (1 in.) of space on all sides for
adequate ventilation. Maintain spacing from enclosure walls, wireways,
adjacent equipment, and the like, as shown below.
Front view
13.0 cm
(5.12 in)
21.3 cm
(8.395 in)
44374
Side view
5.6 cm
(2.20 in)
Top
Bottom
Side
Side
44375
