3-4 Install and Wire Your Module
Set Jumper JW3
Use jumper JW3 to configure the memory module socket for one of
the following optional memory modules.
• 1747-M1, 8 KB EEPROM (1746-BAS module only)
• 1747-M2, 32 KB EEPROM (1746-BAS module only)
• 1747-M3, 8 KB UVPROM (1746-BAS module only)
• 1747-M4, 32 KB UVPROM (1746-BAS module only)
• 1771-DBMEM1, 8 KB EEPROM (1746-BAS-T module only)
• 1771-DBMEM2, 32 KB EEPROM (1746-BAS-T module only)

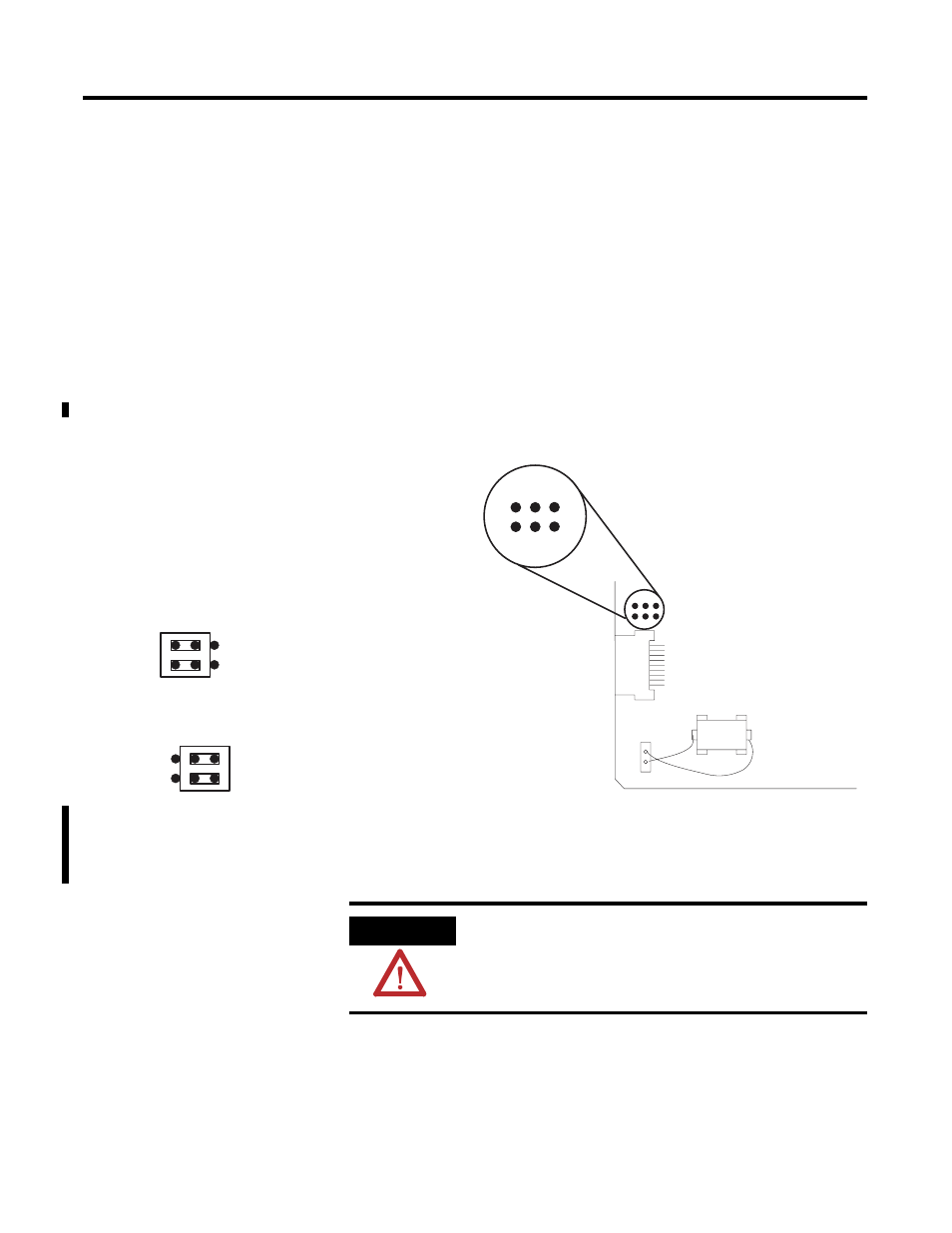

Figure 3.4 JW3 Pin Assignments and Settings
The 1747-M3 and 1747-M4 memory modules are no longer available
for sale from Rockwell Automation. Existing 1747-M3 and 1747-M4
memory modules are compatible with the 1746-BAS module and
1746-BAS-T module.
Documenting your selection provides others with information
necessary to integrate the module with their SLC 500 fixed or modular
controllers.
2 4 6
1 3 5
1747-M1 EEPROM (1746-BAS module only)
1747-M2 EEPROM (1746-BAS module only)
1747-M3 UVPROM (1746-BAS module only)
1771-DBMEM1 EEPROM (1746-BAS-T module only)
1771-DBMEM2 EEPROM (1746-BAS-T module only)
(shipped configuration)
1747-M4 UVPROM (1746-BAS module only)
Pin Assignments
ATTENTION
All other jumper settings for JW3 are illegal and may
cause damage to the module.
