Install and Wire Your Module 3-3
Use the worksheet in Appendix B to document the selected jumper
setting of jumper JW1. Documenting your selection provides others
with information necessary to integrate the module with their SLC 500
fixed or modular controllers.
Set Jumper JW2
Use jumper JW2 to select one of the following configurations for port
PRT2.
• RS-232/423
• RS-422
• RS-485

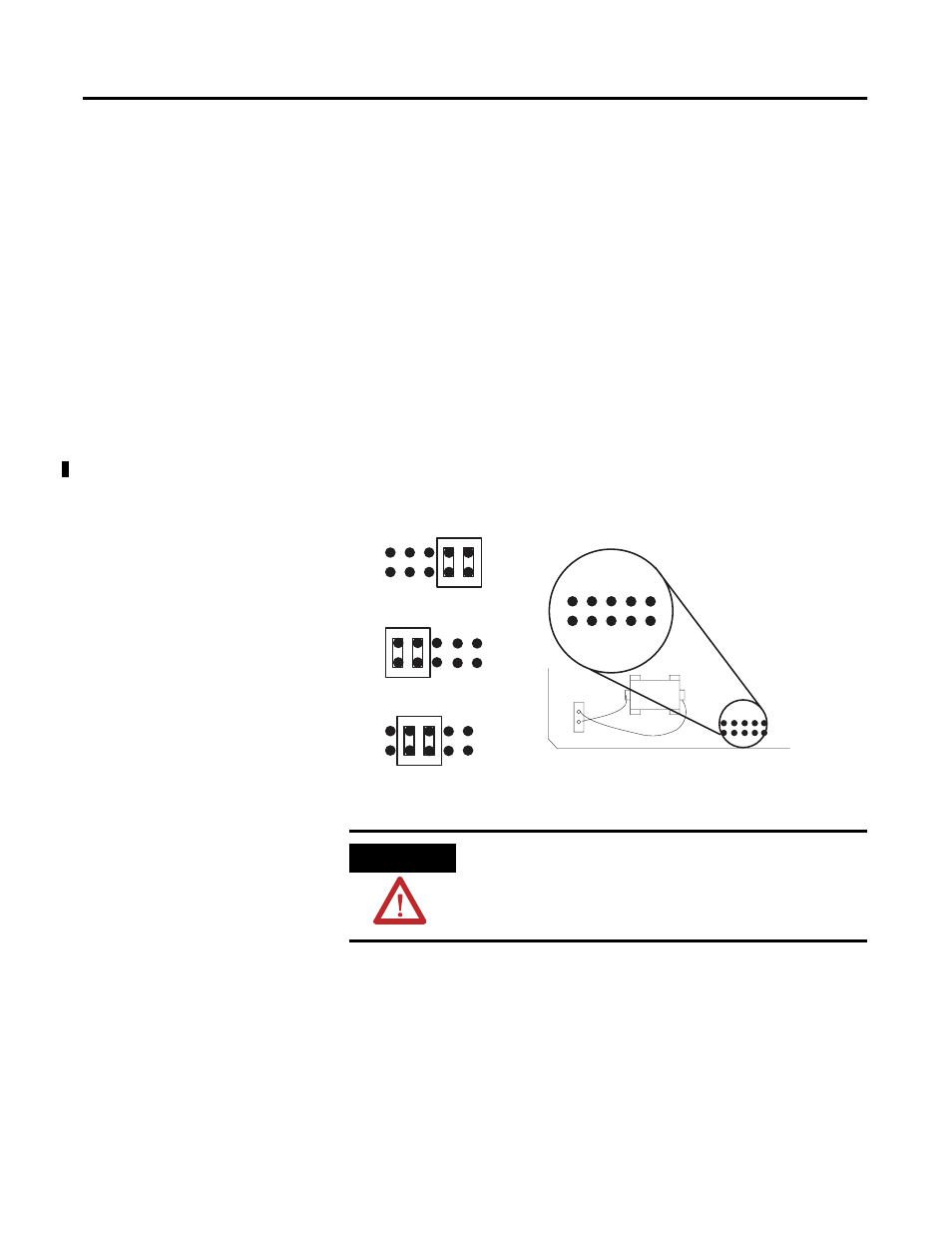

Figure 3.3 JW2 Pin Assignments and Settings
Use the worksheet in Appendix B to document the selected jumper
setting of jumper JW2. Documenting your selection provides others
with information necessary to integrate the module with their SLC 500
fixed or modular controllers.
1
3
5
7
9
2
4
6
8
10
Pin Assignments
RS-422
RS-232/-423 (shipped configuration)
RS-485
ATTENTION
All other jumper settings for JW2 are illegal and may
cause damage to the module.
