2-2 Component Selection
Optional Memory Module The optional memory module provides nonvolatile storage of user
BASIC programs and port configuration. The socket that holds the
optional memory module is located on the module’s mother board as
shown in Figure 2.1.

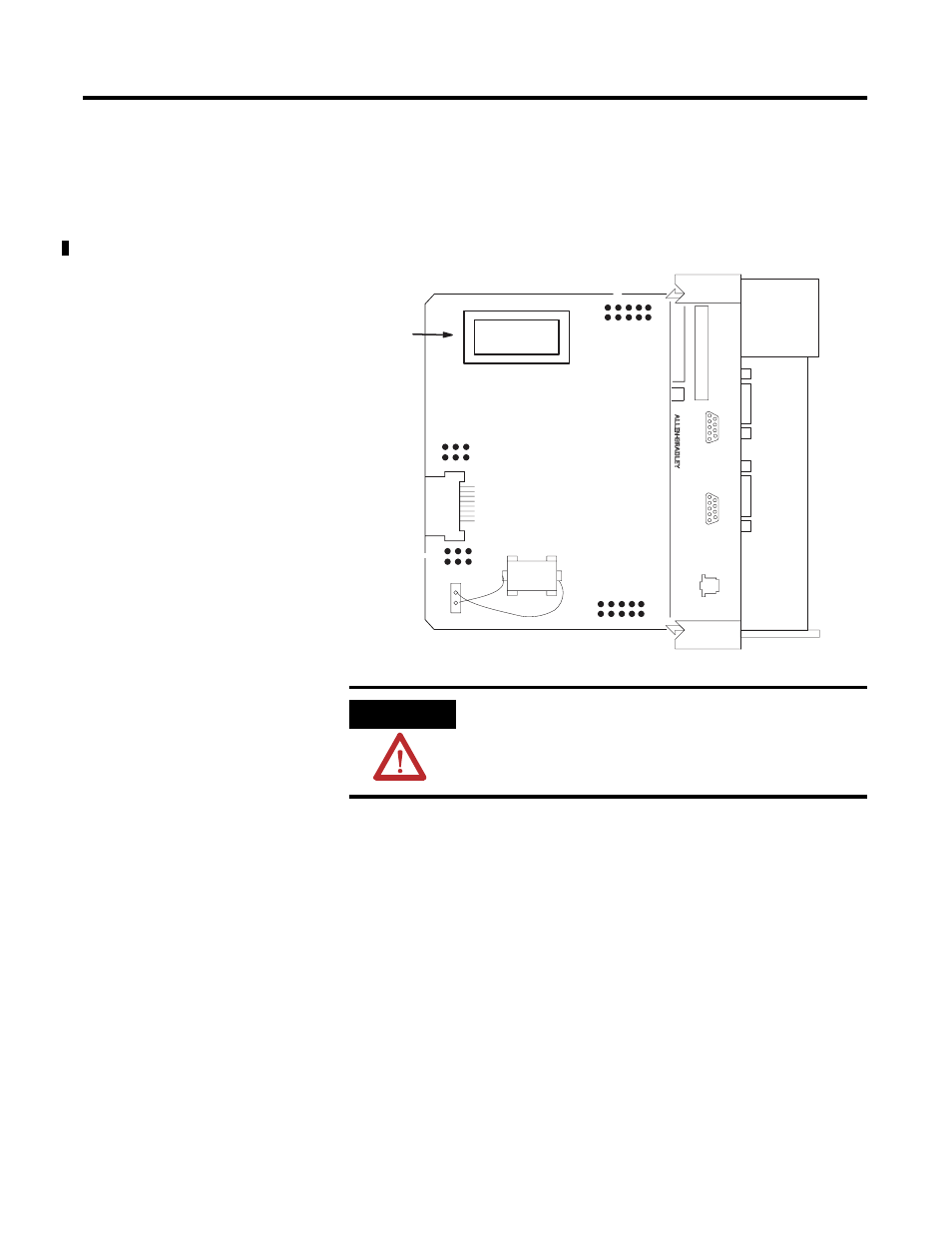

Figure 2.1 Optional Memory Module Socket Location
You may use any of the following memory module options with your
module.
• 1747-M1, 8 KB EEPROM (1746-BAS module only)
• 1747-M2, 32 KB EEPROM (1746-BAS module only)
• 1771-DBMEM1, 8 KB EEPROM (1746-BAS-T module only)
• 1771-DBMEM2, 32 KB EEPROM (1746-BAS-T module only)
SLC 500 BASIC MODULE
CA
T
SER
SERIAL
NO.
FRN
1
2
3
4
5
6
7
8
9
CONFIG
1
2
3
4
5
6
7
8
9
DF1
DH485
Memory Module Socket
ATTENTION
Do not expose the module to surfaces or other areas
that may typically hold an electrostatic charge.
Electrostatic charges can alter or destroy memory.
