Publication 1734-UM002C-EN-P - July 2003

Adding the 1734-ADN(X) to the DeviceNet Scanner’s Scanlist 5-5

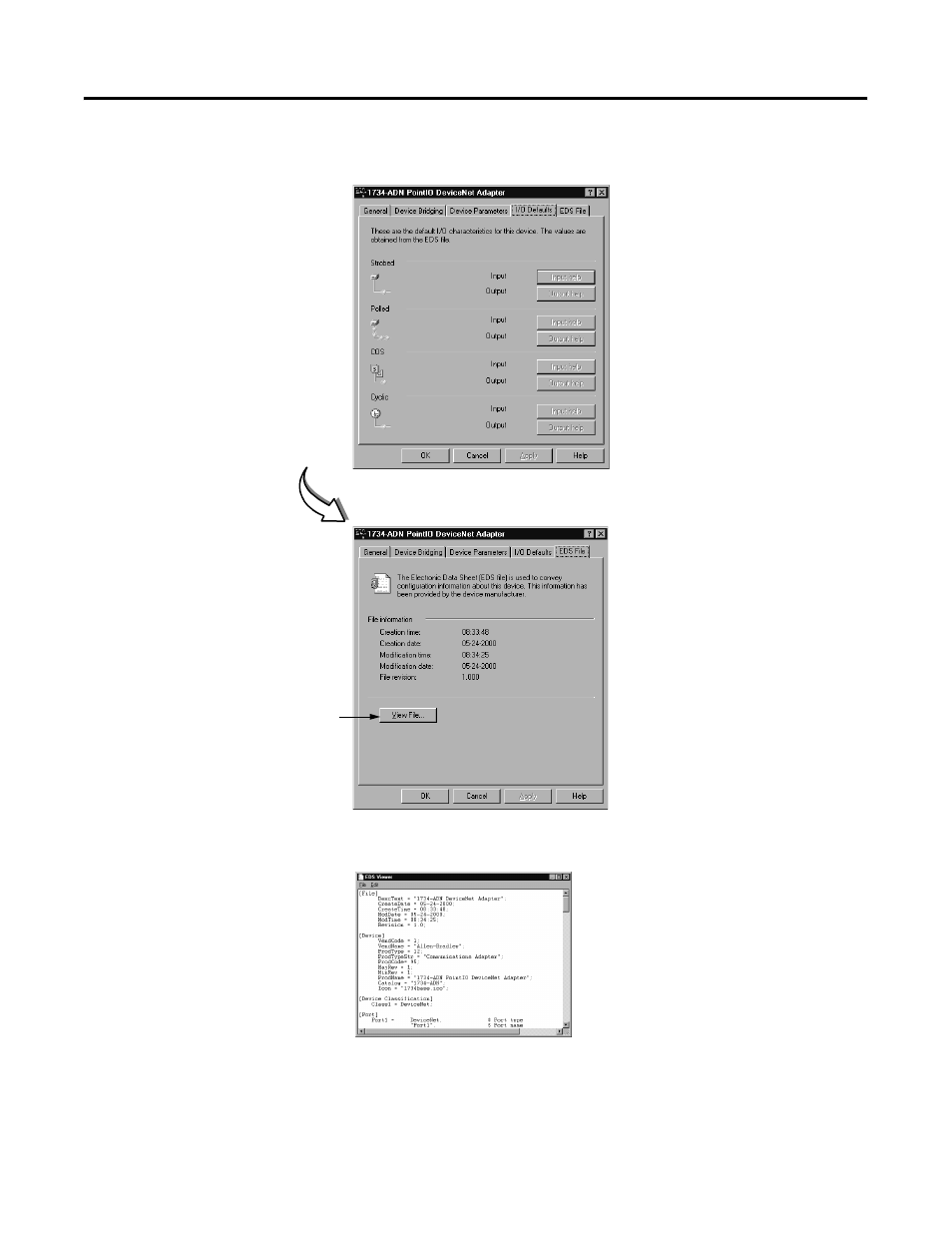

The screens below show the remaining configuration tabs.

The screen below shows an example EDS file.

This completes the configuration options. Your adapter must go
online for configuration to take effect.

Connection sizes appear only when the Subnet
network file has been associated using the
Device Bridging tab.

These values correspond to the 4 parameters
(Poll/COS Connection Consume Size, Poll
Connection Produce Size, COS Connection
Produce Size, Strobe Connection Produce Size)
found on the Device Parameter’s tab.

Click here to view the EDS
file. An example of the
EDS file is shown below.
