Publication 1734-UM002C-EN-P - July 2003
3-4 Using Auto Start Mode
Are There Any Requirements to Using Auto Start Mode?
There are two requirements to using the Auto Start Mode:
• Your 1734-ADN DeviceNet adapter must use firmware revision
2.001 or higher. If your adapter does not have the required
firmware, you can upgrade it with the ControlFlash tool. For
more information on how to upgrade your adapter’s firmware,
contact your Rockwell Automation representative.
• Your 1734-ADN(X) DeviceNet adapter must be free of I/O
connections on DeviceNet when you use Auto Start Mode. If
another scanner device has established I/O connections with the
adapter, the attempt to use Auto Start Mode is rejected. When
the adapter is configuring itself in Auto Start Mode, no other
device can establish I/O connections to the adapter.

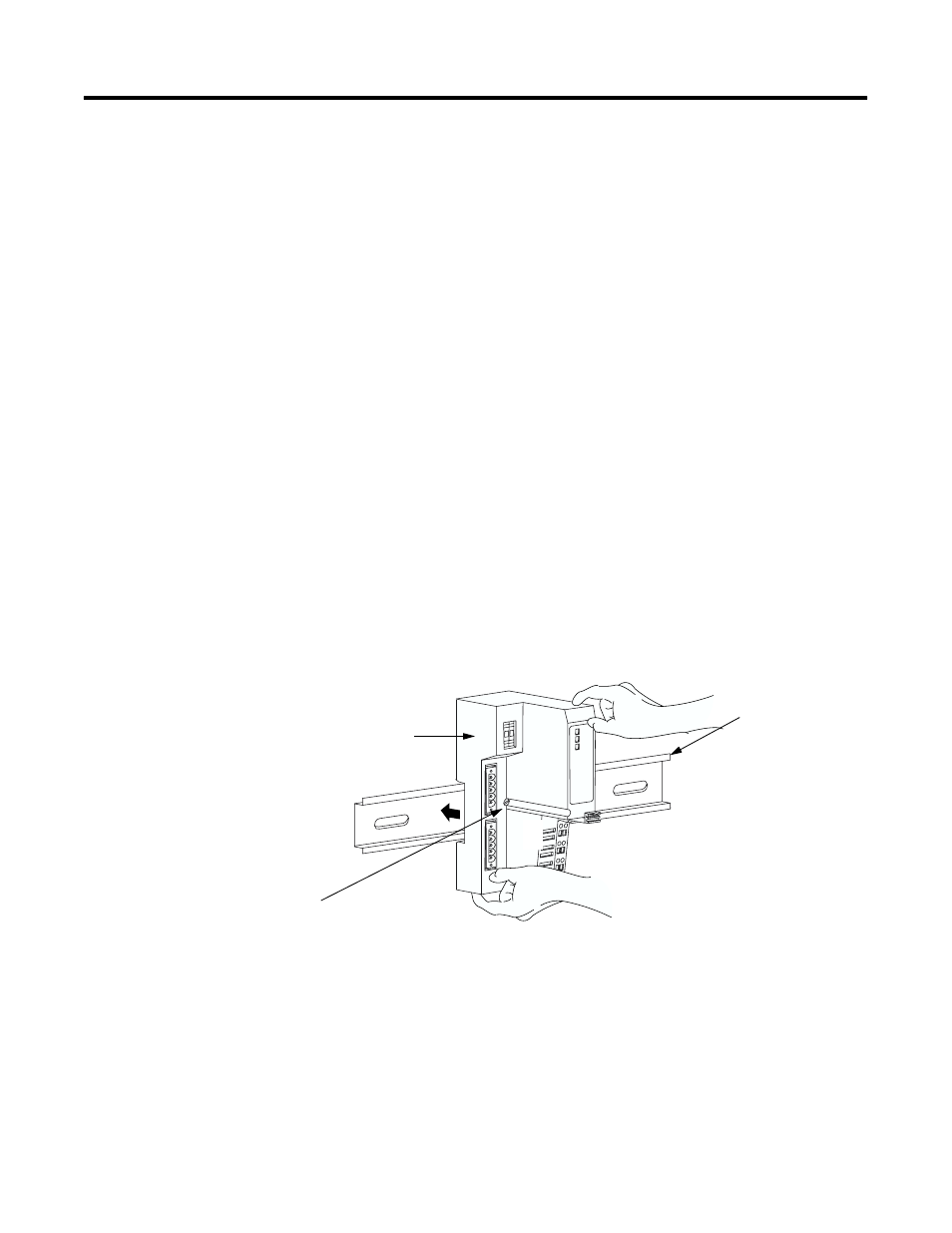

Installing the Adapter
To install the adapter on the DIN rail prior to installing other base
units, proceed as follows.
1. Position the adapter vertically in front of the DIN rail.
2. Press firmly to install the adapter on the DIN rail. The locking
mechanism locks the adapter to the DIN rail.
31110-MC
1734-ADN communication interface
DIN rail
Orange screw slot
