Page 52
Publication 1734-UM002C-EN-P - July 2003
3-8 Using Auto Start Mode

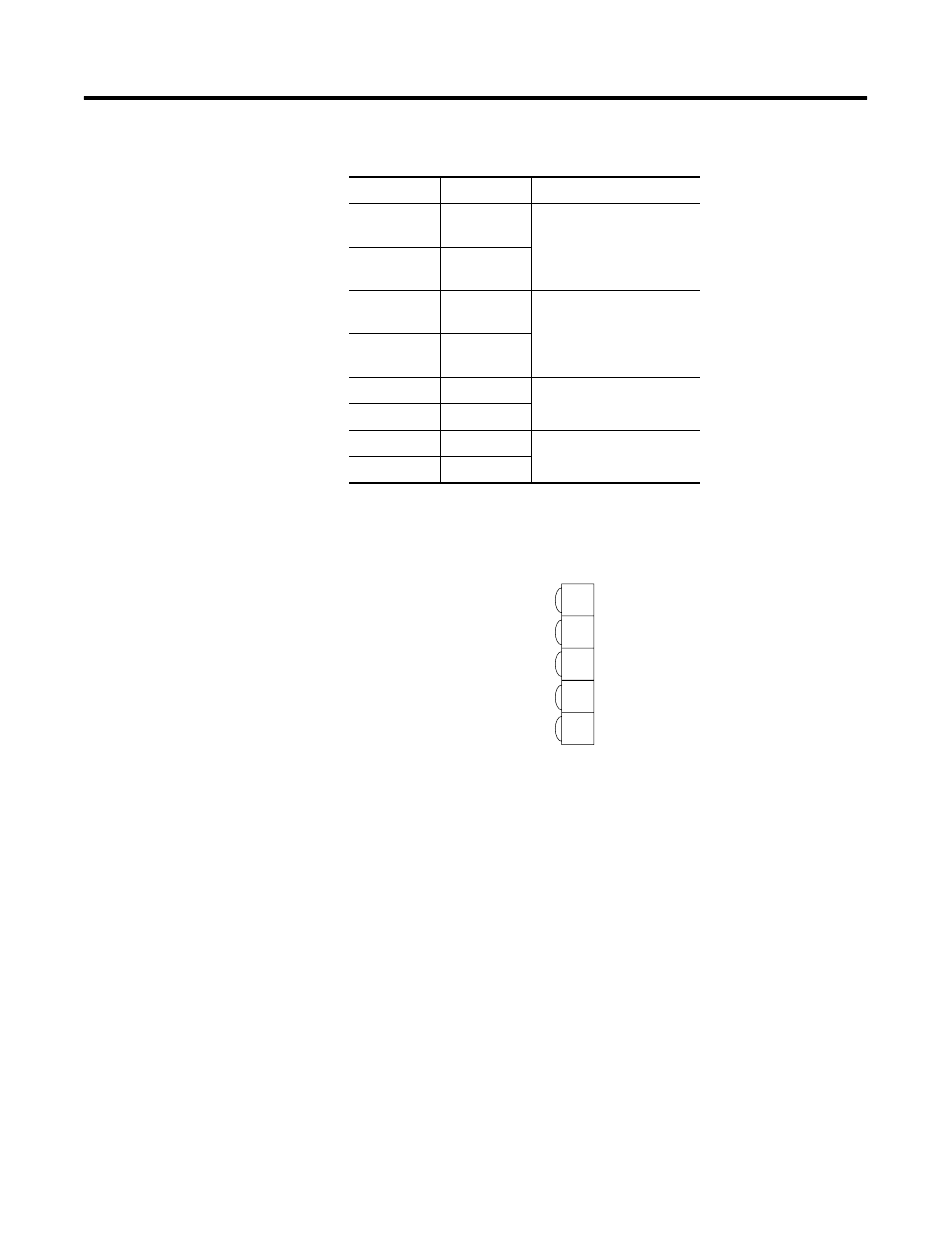

DeviceNet and Subnet Connector Plug Wiring
Installing the I/O Modules
After installing and wiring the adapter, you should install the
POINT I/O modules that will be used in your application.
For more information on installing and wiring the multiple POINT I/O
modules, see the installation instructions for each catalog number or
the POINT I/O Digital and Analog Modules and POINTBlock I/O
Modules user manual, publication 1734-UM001.
Terminal
Notes
0
No
connection
Reserved
1
No
connection
2
Chassis
Ground
3
Chassis
Ground
4
Common
5
Common
6
Voltage Input
Apply 12/24V dc. Connects
to the internal power bus.
7
Voltage Input
DeviceNet
connection
Black
Blue
Bare
White
Red
-V
CAN - Low
CAN - High
+V
1
2
3
4
5
42514
Shield
