Produced and consumed assembly configuration – Rockwell Automation 193-EDN E1Plus Overload Relays - DeviceNet Module User Manual
Page 22

Publication 193-UM006A-EN-P – October 2005
3-6 DeviceNet Node Commissioning
Produced and Consumed Assembly Configuration
The Input and Output Assembly format for the E1 Plus Overload Relay is
identified by the value in Parameter 28 (Output Assembly) and Parameter 29
(Input Assembly). These values determine the amount and arrangement of the
information communicated to the master scanner.

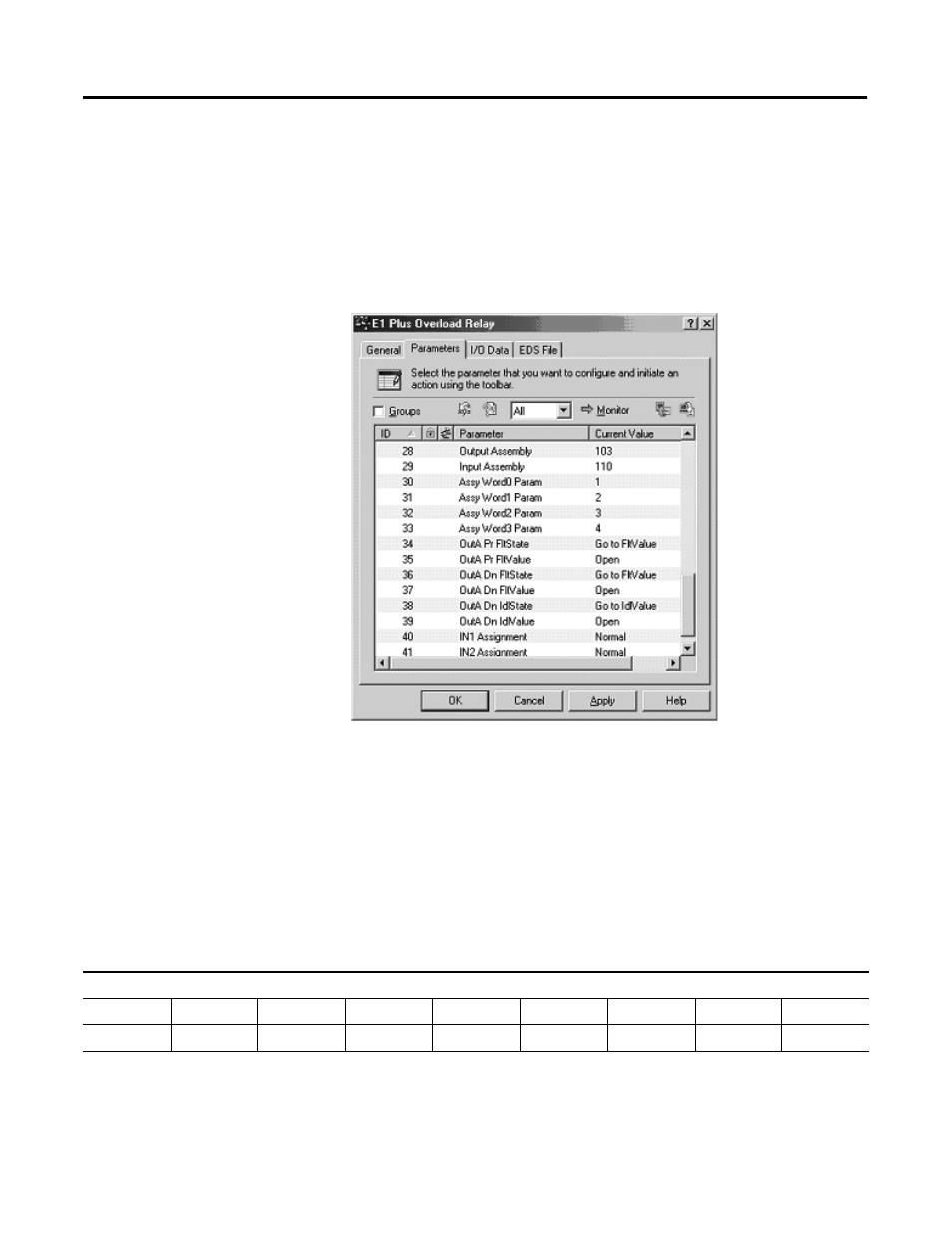

Figure 3.6 I/O Assembly Settings
Selection of Input and Output Assemblies (also referred to as Produced and
Consumed Assemblies) define the format of I/O message data that is
exchanged between the E1 Overload Relay and other devices on the network.
The consumed information is generally used to command the state of the slave
device's outputs, and produced information typically contains the state of the
inputs and the current fault status of the slave device.
The default Consumed and Produced Assemblies are shown below. For
additional formats, refer to Appendix B—DeviceNet Information.
Table 3.1 Instance 103 —E1 Plus Default Output (Consumed) Assembly
Instance 103– Similar to Basic Motor Starter Output Assembly in ODVA Starter Profile
Byte
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
0
Fault Reset
OutA
