Programming Chapter 3
For additional details on these procedures, see the 20-HIM-A6 or 20-HIM-C6S
module User Manual, 20HIM-UM001.

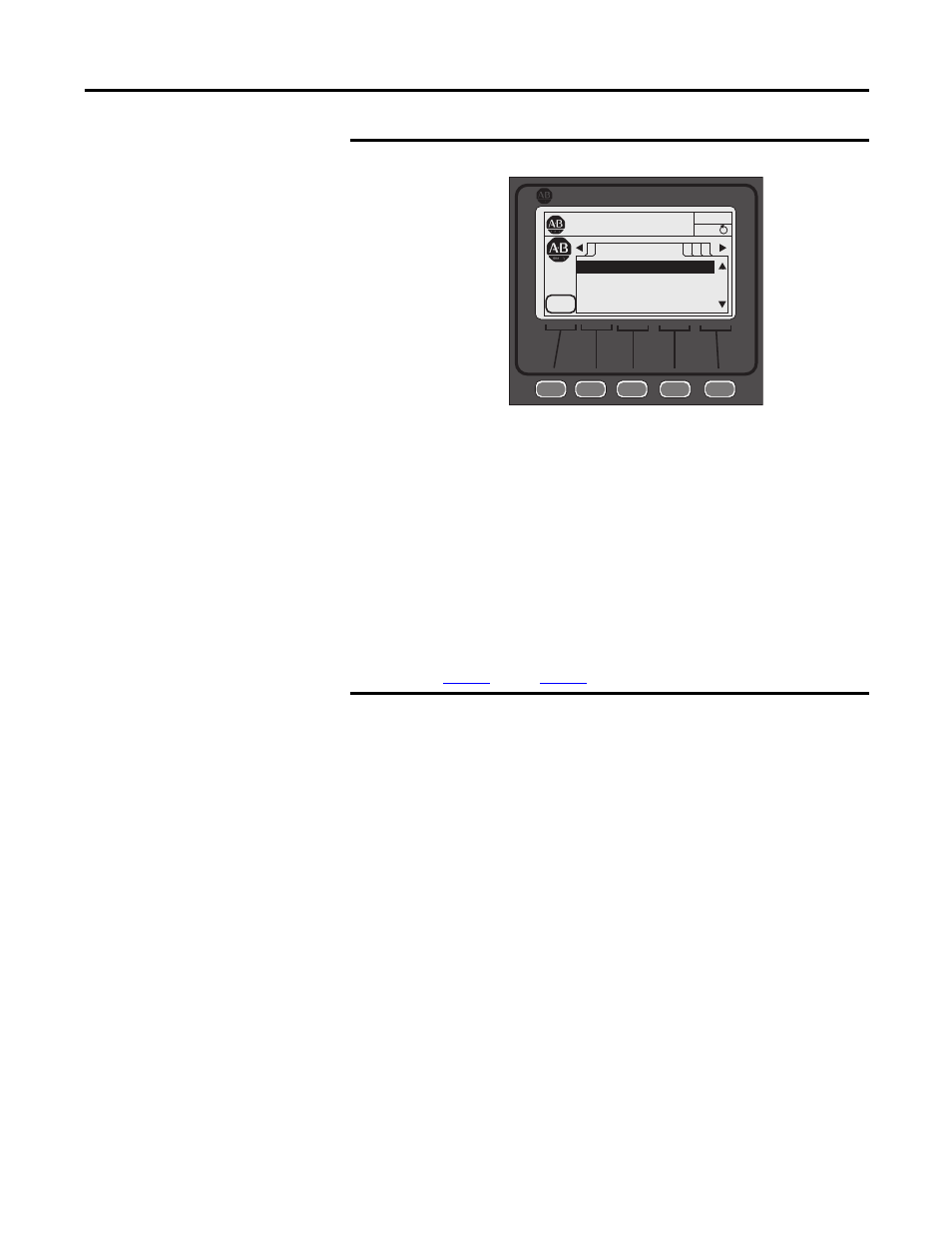

EXAMPLE 1. From the HIM power-up screen, press the FOLDERS single-function key.
2. Press the LEFT or RIGHT arrow key until the screen displays DEVPARAM.
3. Using the DOWN arrow key, scroll to the File-Group selection. Press
ENTER (keypad #5). The screen will display Port 00 Param File — Group at
the top of the screen.
4. Using the DOWN arrow key, scroll to the Set Up selection. Press ENTER.
The screen will display the Set Up categories (e.g., Basic, Starter, etc.).
5. With Basic highlighted on the screen, press ENTER.
6. Scroll to the desired parameter (e.g., Line Voltage) to modify it, then press
ENTER.
7. Press EDIT, enter the desired value, then press ENTER to save the value.
8. Press the ESC key to return to the Basic category.
9. To modify another parameter in the Basic category, follow step 5 through
step 7. To back out to a higher level category, press the BACK arrow key.
NOTE: By using the Device Parameter, DEV PARAM, folder screen and the
File-Group selection SMC-50 parameters can be selected and configured by
functional category. See the SMC Category/File Structure Parameters in
.
Linear List
File-Group
Changed Parameters
Param Access Level
AUTO
F
00
Stopped
0 Amps
Allen-Bradley
ESC
DEV PARAM
