Rockwell Automation Publication 150-QS003D-EN-P - November 2013

29

Installation Chapter 2

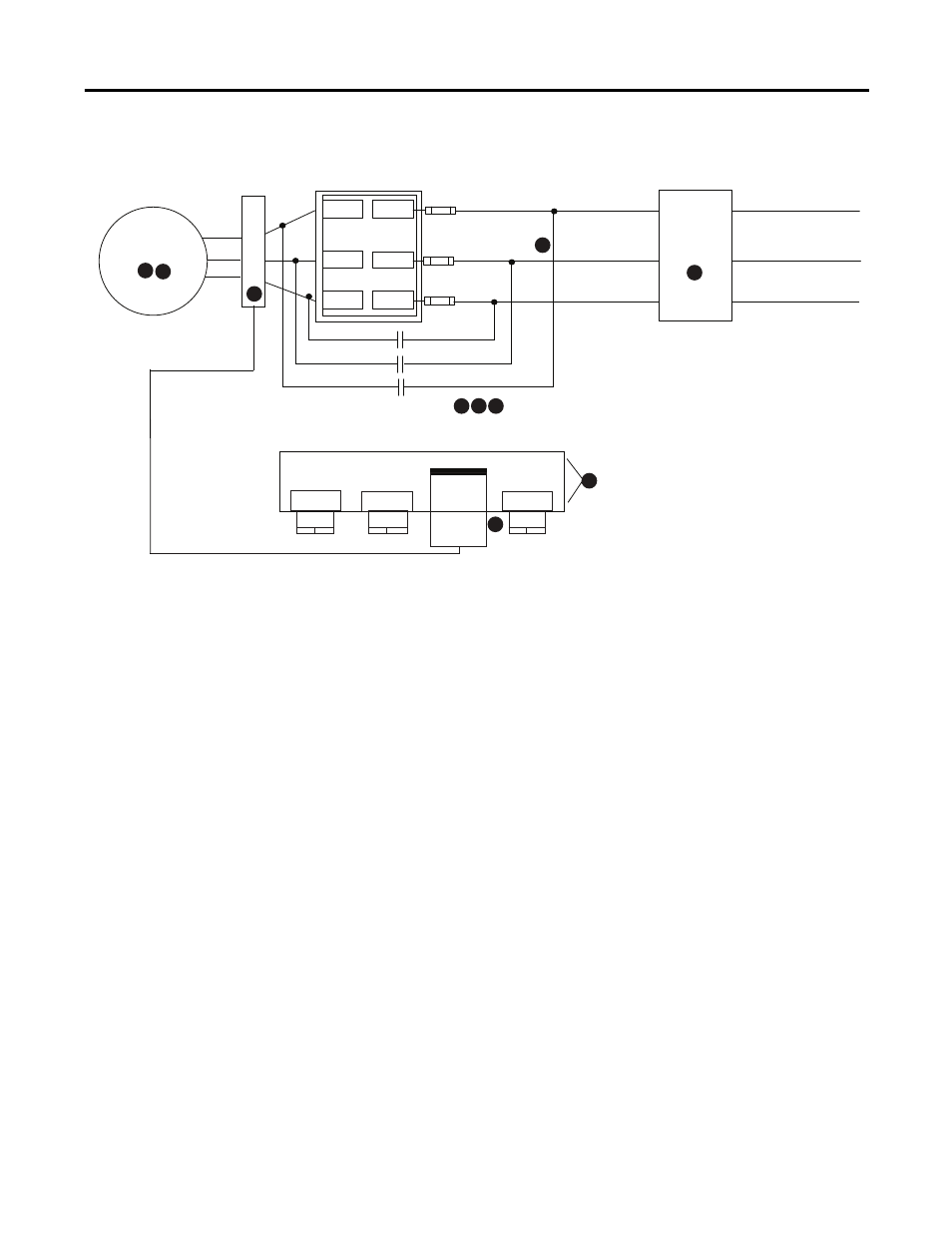

Figure 19 - Wiring Diagram using 825 Converter Module and 150-SM2 Devices

with Bypass Contactor

Customer supplied.

Due to current leakage through an SCR in the OFF state (controller stopped), some form of upstream line power isolation is recommended if maintenance

is required on the motor. See the Isolation Contactor Applications for details.

In Bypass Contactor RUN operation, the 825-MCM and the 150-SM2 module provide current-based protective feedback features including overload. Only

the cable provided with the 825-MCM converter can be used in this configuration. The maximum cable length is 4 m, thus the 825-MCM must be located
within 4 m of the SMC-50.

The order of the terminal numbers for the 150-SM2 module can be reversed depending on which expansion slot it is located in the control module.

However, the function associated with the terminal number remains the same.

Bypass must be controlled by an auxiliary contact of SMC-50 configured to external bypass.

In North America, size the bypass contactor per the motor Hp and FLA. In IEC, size the bypass contactor per the motor AC-1 rating. The short-circuit rating

of the bypass contactor must be similar to that of the SMC-50.

NOTE: In addition to a small amount of leakage current flowing through an SCR in the off-state, failure of one or more solid-state power switching

components allows uncontrolled current to flow to the winding(s) of the motor. This could potentially result in overheating or damage to the motor. To
prevent potential personal injury or equipment damage, the installation of an isolation contactor or shunt trip-type circuit breaker capable of interrupting
the motor’s locked rotor current on the line side of the SMC-50 is recommended. Operation of the isolation device should be coordinated using one of
the SMC-50 auxiliary contacts configured to NORMAL.

T1/2

T2/4

T3/6

L1/1

L2/3

L3/5

SMC-50

3-Phase AC

Line Power

Fast-Acting SCR
Fuses (optional)

Circuit

Protective

Device

825-MCM

Bypass Contactor (BC)

150-SM2 Option Module

TB2

TB2

TB3

TB4

TB3

TB4

RG25U
Female
RG25U

Male

M

1

1

1

1

2

3

5

3

4

6
