40 Rockwell Automation Publication 150-QS003D-EN-P - November 2013
Chapter 3 Programming

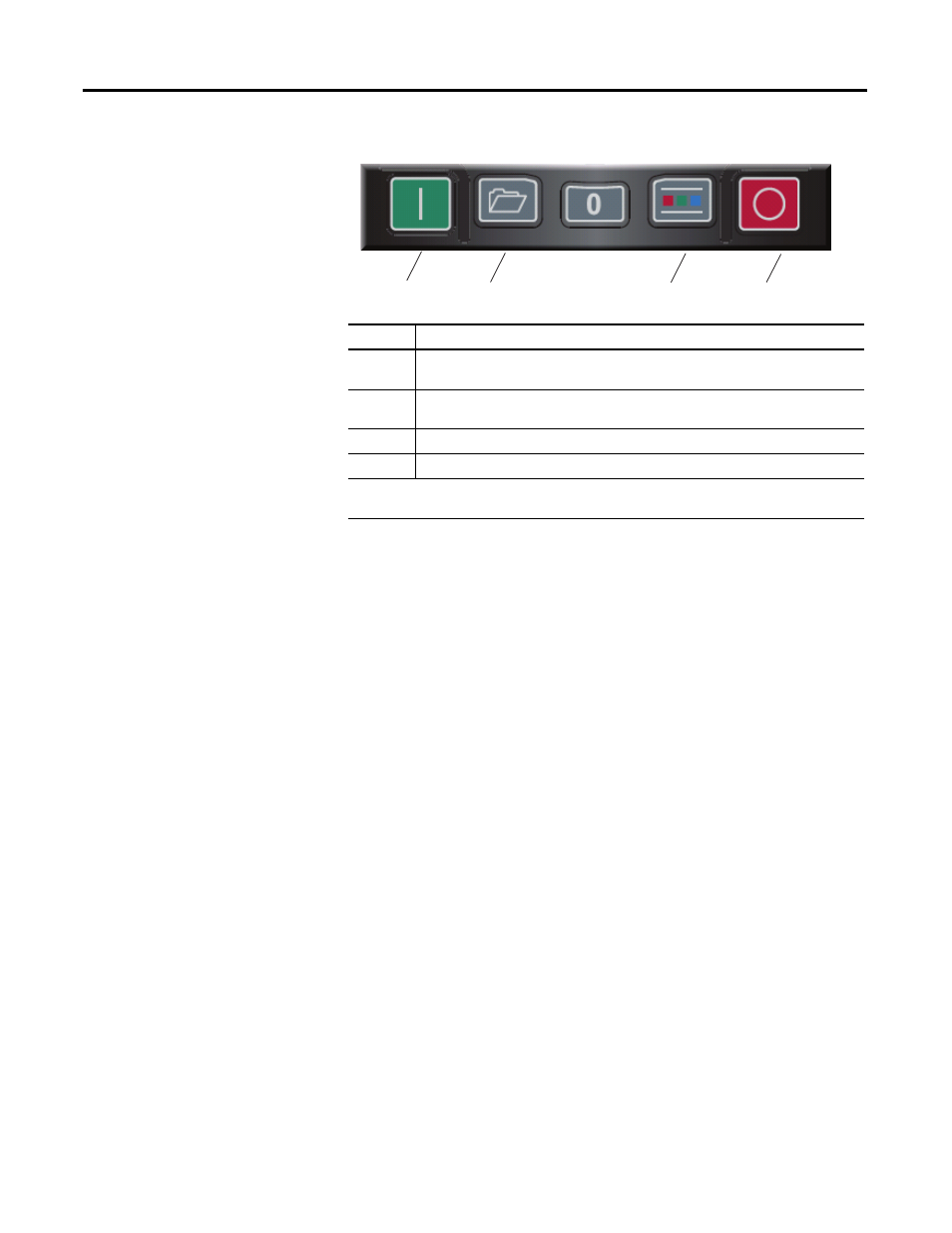

Figure 23 - HIM Single-Function Keys
HIM Soft Keys
Up to five dynamic soft keys can be shown at the bottom of the HIM screen.
Based on the specific screen or the data entry mode being used, a soft key name
and its function may change. When a soft key is active, its presentation function
and corresponding soft key label are shown at the bottom of the HIM screen.
Key Function
Start Starts the controller if the SMC-50 Logic Mask is enabled for the port the HIM is
connected to.
➊
Folders Accesses folders for parameters, diagnostics, memory functions, preferences, and
other tests.
Controls Accesses jog, direction, auto/manual, and other control functions.
Stop Stops the SMC-50 or clears a fault. The Stop key is always active.
➊ If the device (port) is enabled and removed under power or an expansion device is removed, a
fault is generated. The bit location (e.g., 0, 1, 2, etc.) corresponds to the DPI port numbers.
Start Folders Controls Stop
