Chapter 2 Installation

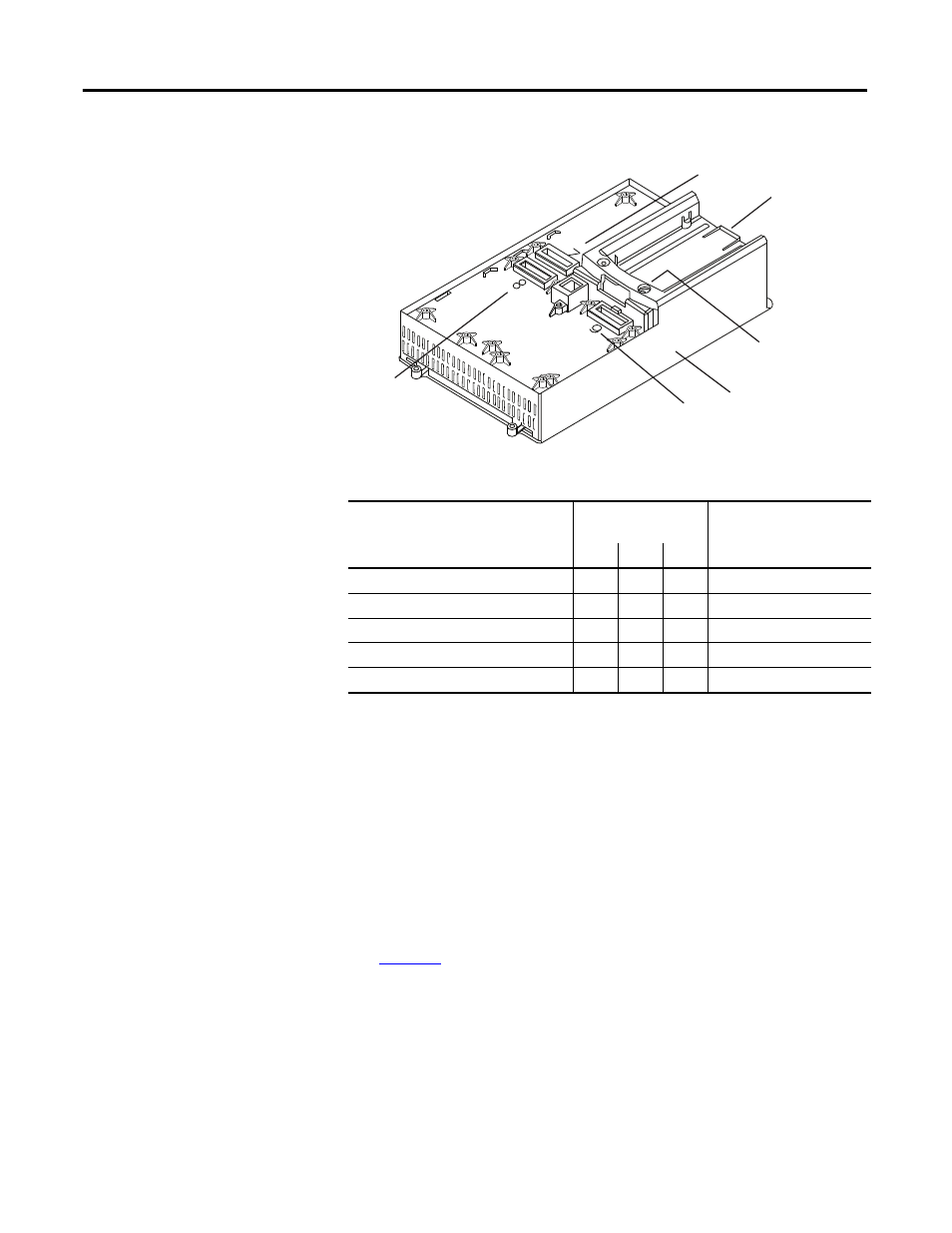

Figure 12 - Port Number Identification

Table 5 - Port Location for Compatible Option Modules

See the SMC-50 user manual for a list of compatible 20-COMM-X modules.

When installed in an SMC-50 controller, 20-COMM-X modules physically reside in the space assigned to Port 9,

but connect to DPI Port 4 with the ribbon cable that is supplied with the communication module.

Optional Cat. No. 150-SM4 Digital I/O Module

A Cat. No. 150-SM4 Digital I/O Option Module provides four 120...240V AC
digital on/off inputs and three relay outputs to provide additional auxiliary
control or indications (e.g., up-to-speed (UTS), alarm, etc.) functions. The
150-SM4 module can be located in any of the three control module option ports
(See

Figure 12

). Up to three 150-SM4 modules can be used with a single control

module. The 150-SM4 module terminal block used to wire the I/O is removable.

SMC-50 Control Module
Compatible Option Modules Cat. Nos.

Compatible Control
Module Port

Maximum Number of this
Type of Option Module
per Control Module

Port 7 Port 8 Port 9

150-SM2: Ground Fault/PTC/External CT

Yes

Yes

No

1

150-SM3: Analog I/O

Yes

Yes

Yes

3

150-SM4: Digital I/O

Yes

Yes

Yes

3

150-SM6: Parameter Configuration

Yes

Yes

Yes

1

20-COMM-X ❶➋

:

Communications

No

No

Yes

1

NOTE:

1 When installed in Control Module Port 7, the orientation of the module
terminal block is rotated 180° along with its terminals.

2 The Cat. No. 150-SM4 Digital I/O Module can NOT be configured using a
150-SM6 PCM. This module can be configured using a 20-HIM-A6, network card,
or communications software (e.g., Connected Components Workbench [CCW]).

Port 7

Port 9

HIM
Bezel

HIM
Port

SMC-50
Control Module
(shown without cover)

Port 8
