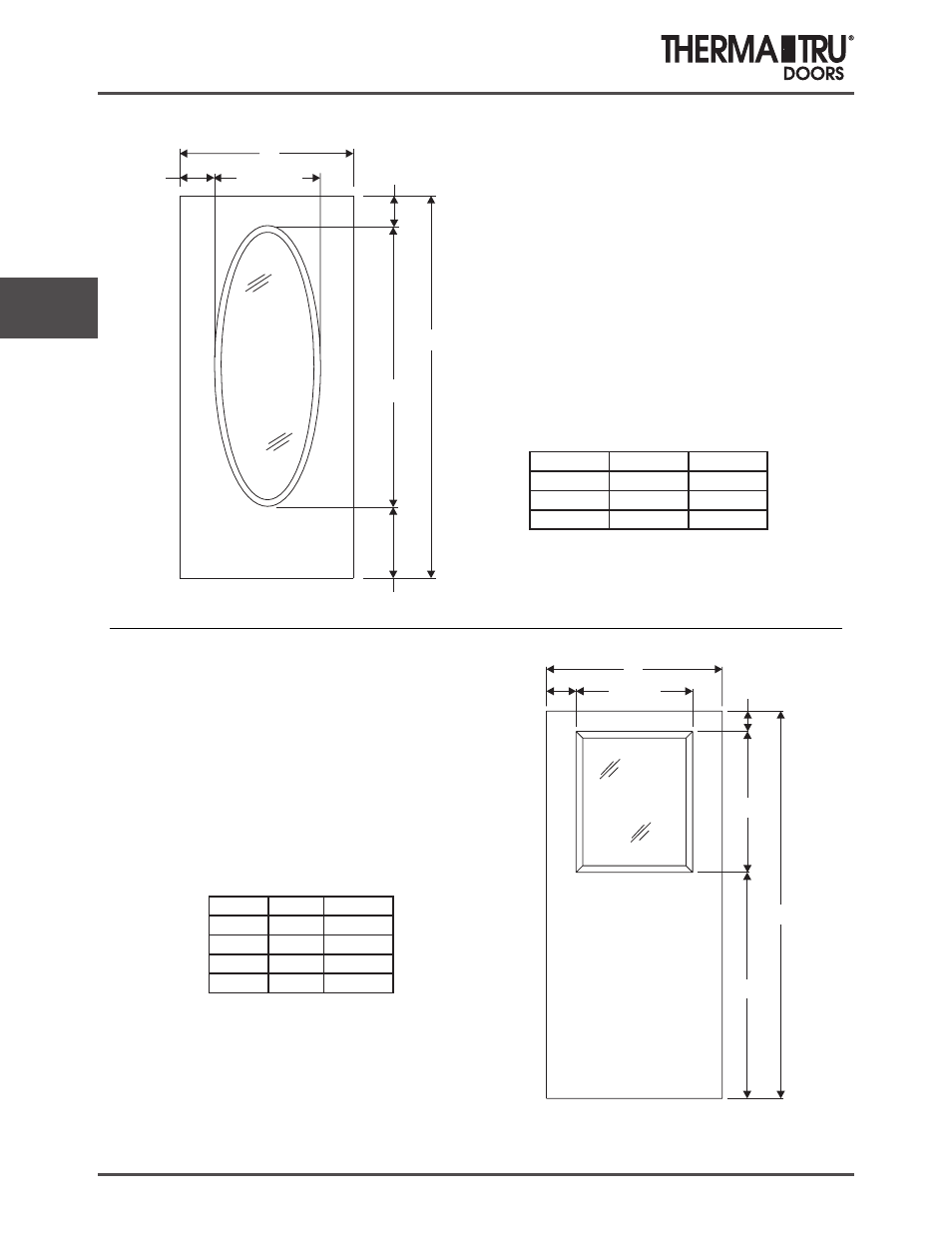

Smooth-Star
Door Panel
Dimensions
5.4 2014 (BOOK SIZE) Comp 5
6/8 Smooth-Star Doors
79-1/4 ”
6-1/2 ”
14- 21/32”
58-3/32 ”
21-31/32 ”
A
B
A
23-7/8 ” 4-5/32 ”
79-1/4 ”
28-7/8 ”
46-7/32 ”
B
Size A B
2/8 32” 5-1/32”
2/10 34” 6-1/32”
3/0 36” 7-1/32”
Size A B
2/6 30” 3-1/16”
2/8 32” 4-1/16”
2/10 34” 5-1/16”
3/0 36” 6-1/16”
Full Oval Flush
(103, 200, 2056)
(Slab - SS010)
1/3 Lite Flush
(105, 215, 2227)
(Slab-SS010)
Daylight Opening: 21-1/8" x 26-1/8"
(552 sq.in.)
Daylight Opening: 19-7/32" x 55-11/32"
(846 sq.in.)
