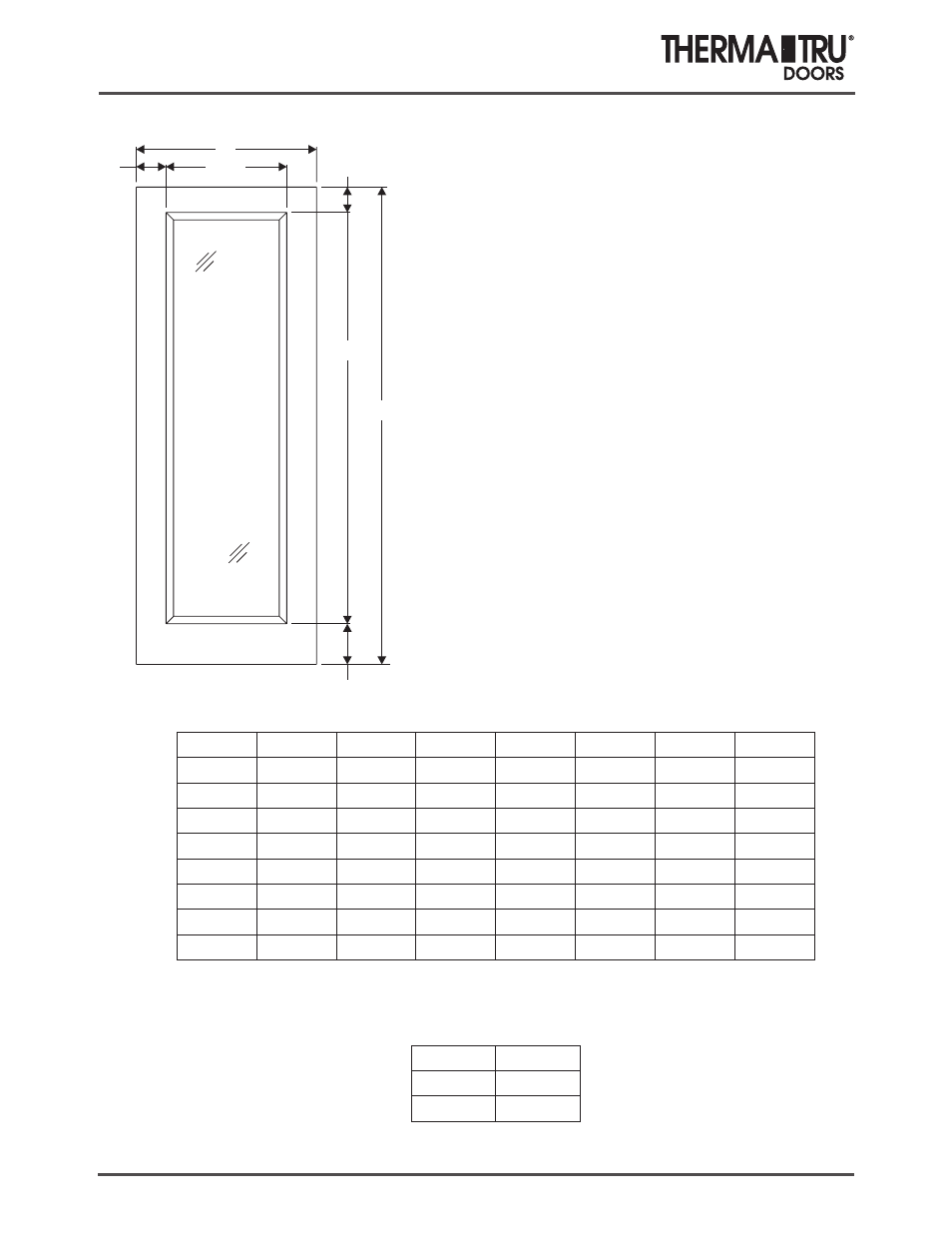

Therma-Tru COMP 5 Smooth-Star Door Panel Dimensions - Book Size - Manual (Page 36)

5.36 2014 (BOOK SIZE) Comp 5
8/0 Smooth-Star
Noise Reduction Doors
B C
E
D
G
F
A
Note:
For Optional Grille Locations,
See Arch 1.
Full Lite Flush
(2080, 2280)
(Slab-S8010STC)
(Slab-S76010STC)
Size A B C D E 8/0 F 7/6 F
2/6 30” 3-15/16” 22-1/8” 82-1/8” 5-1/16” 8-1/16” N/A
2/6 EC 30” 3-15/16” 22-1/8” 82-1/8” 2-15/16” 10-3/16” 4-3/16”
2/8 32” 4-15/16” 22-1/8” 82-1/8” 5-1/16” 8-1/16” N/A
2/8 EC 32” 4-15/16” 22-1/8” 82-1/8” 2-15/16” 10-3/16” 4-3/16”
2/10 34” 4-15/16” 24-1/8” 82-1/8” 5-1/16” 8-1/16” N/A
2/10 EC 34” 4-15/16” 24-1/8” 82-1/8” 2-15/16” 10-3/16” 4-3/16”
3/0 36” 5-15/16” 24-1/8” 82-1/8” 5-1/16” 8-1/16” N/A
3/0 EC 36” 5-15/16” 24-1/8” 82-1/8” 2-15/16” 10-3/16” 4-3/16”
EC - ELEVATED CUTOUT
Height G
7/6 89-1/4”
8/0 95-1/4”
Daylight Opening: 18-15/16" x 78-15/16"
(2080 for 1" glass) (1495 sq.in.)
Daylight Opening: 19-1/8" x 79-1/8"
(2080 for 1/2" glass) (1513 sq.in.)
Daylight Opening: 20-15/16" x 78-15/16"
(2280 for 1" glass) (1653 sq.in.)
Daylight Opening: 21-1/8" x 79-1/8"
(2280 for 1/2" glass) (1672 sq.in.)
