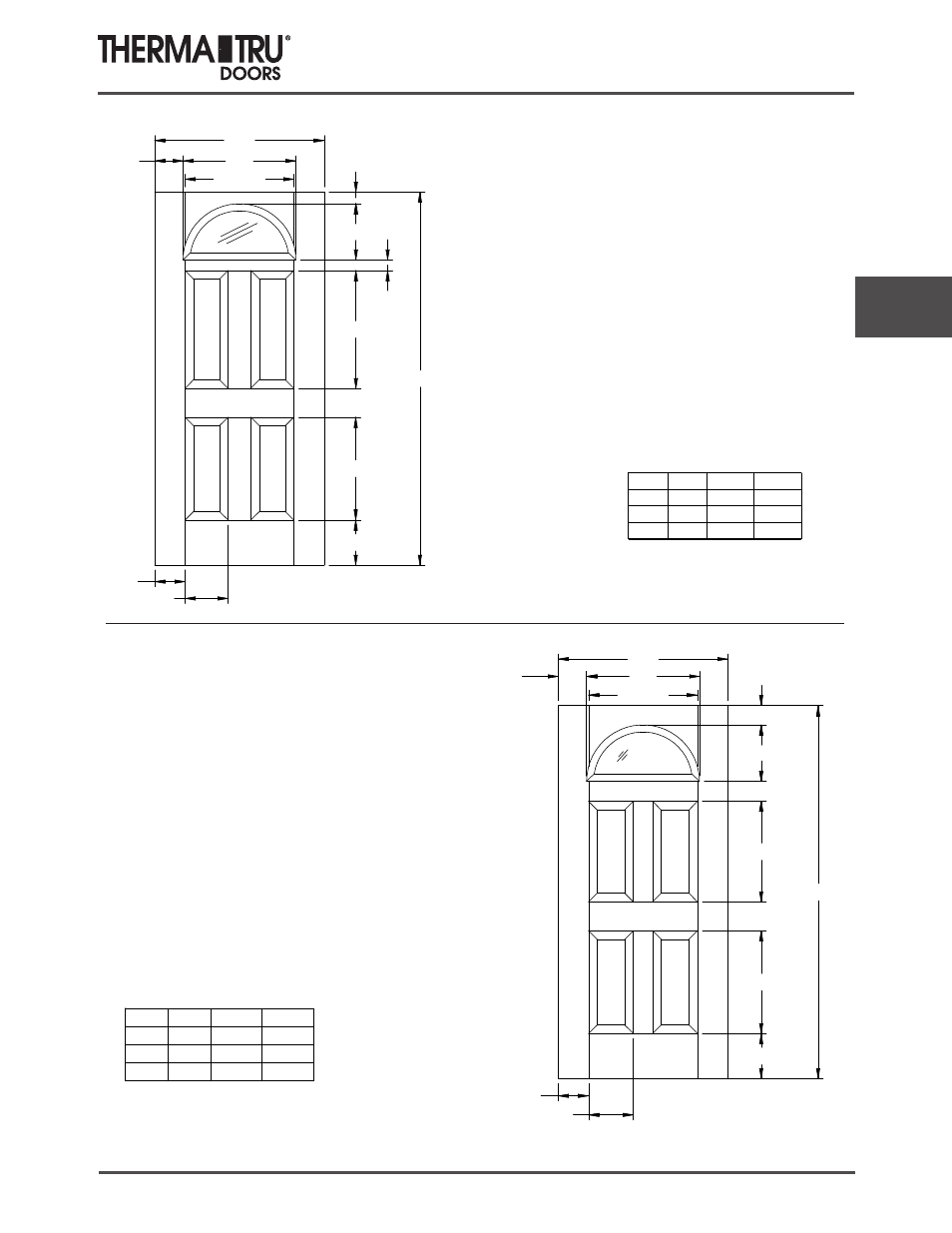

Smooth-Star
Door Panel
Dimensions
Comp 5 2014 (BOOK SIZE) 5.19
6/8 Smooth-Star Doors
23-1/8"
A
79-1/4"
C
9-1/8"
2-15/32"
11-29/32"
2-5/16"
25"
24" B Fan Lite 4 Panel - Cutout
(Glass - 2210R)
(Slab - SS020)
Size A B C
2/8 32" 4" 4-1/4"
2/10 34" 5" 5-1/4"
3/0 36" 6" 6-1/4"
21-13/16"
9-9/16"
Daylight Opening: 8-29/32" x 21"
(140 sq.in.)
Fan Lite 4 Panel - Molded Open
(Glass - 2210R)
(Slab - SO020)
A
B 24"
C
9 1/2"
11 29/32"
4 11/32"
21 5/16"
21 13/16"
Size A B C
2/8 32" 4" 4-1/4"
2/10 34" 5" 5-1/4"
3/0 36" 6" 6-1/4"
4 1/8"
9 9/16"
79 1/4"
23 1/8"
Daylight Opening: 8-29/32" x 21"
(140 sq.in.)
