8/0 smooth-star doors – Therma-Tru COMP 5 Smooth-Star Door Panel Dimensions - Book Size User Manual
Page 29

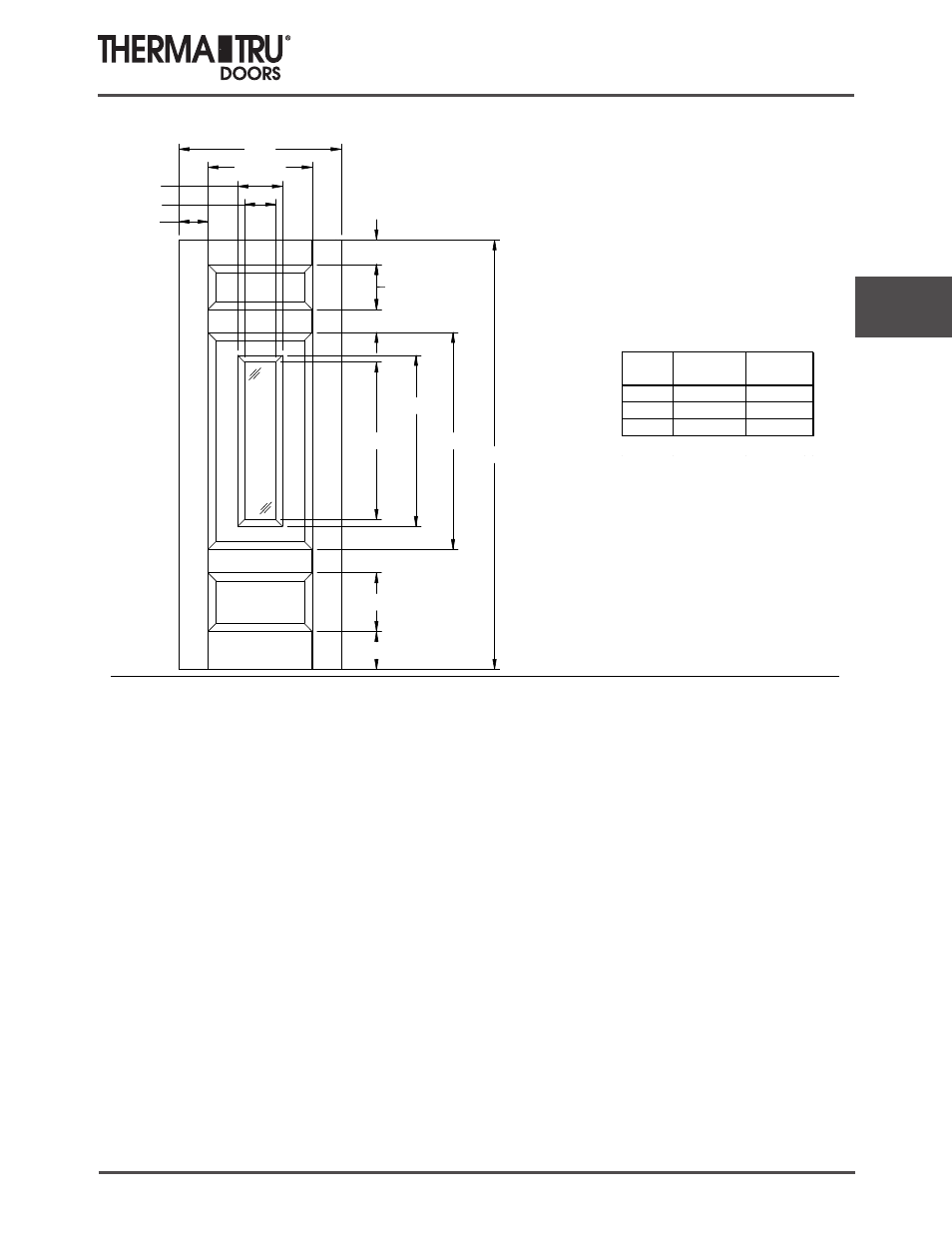

Smooth-Star
Door Panel
Dimensions
Comp 5
2014 (BOOK SIZE)
5.29
8/0 Smooth-Star Doors
5 7/16"
5 3/32"
48 1/8"
8 7/16"
A
B
23 1/8"
9 29/32"
37 29/32"
8' Center Lite 3 Panel
(Glass - 0836)
(Slab - S8030)
34 29/32"
6 29/32"
95 1/4"
10"
13"
2/8
32"
4 7/16 "
2/10
34"
5 7/16 "
3/0
36"
6 7/16 "
Size
A
B
Daylight Opening: 6-29/32" x 34-29/32"
(241 sq.in.)
