Smooth-Star
Door Panel
Dimensions
5.34 2014 (BOOK SIZE) Comp 5
8/0 Smooth-Star
Flush-Glazed Doors
95-1/4”
80-1/16”
5-9/16”
24”
9-5/8”
A
B
C
6-5/32”
95-1/4”
10-9/32”
Size A C
2/6 30” 5-3/32” 19-13/16”
2/8 32” 6-3/32” 19-13/16”
2/10 34” 5-3/32” 23-13/16”
3/0 36” 6-3/32” 23-13/16”
Note:
For Optional Grille Locations,
See Arch 1.
Note:
For Optional Grille Locations,
See Arch 1.

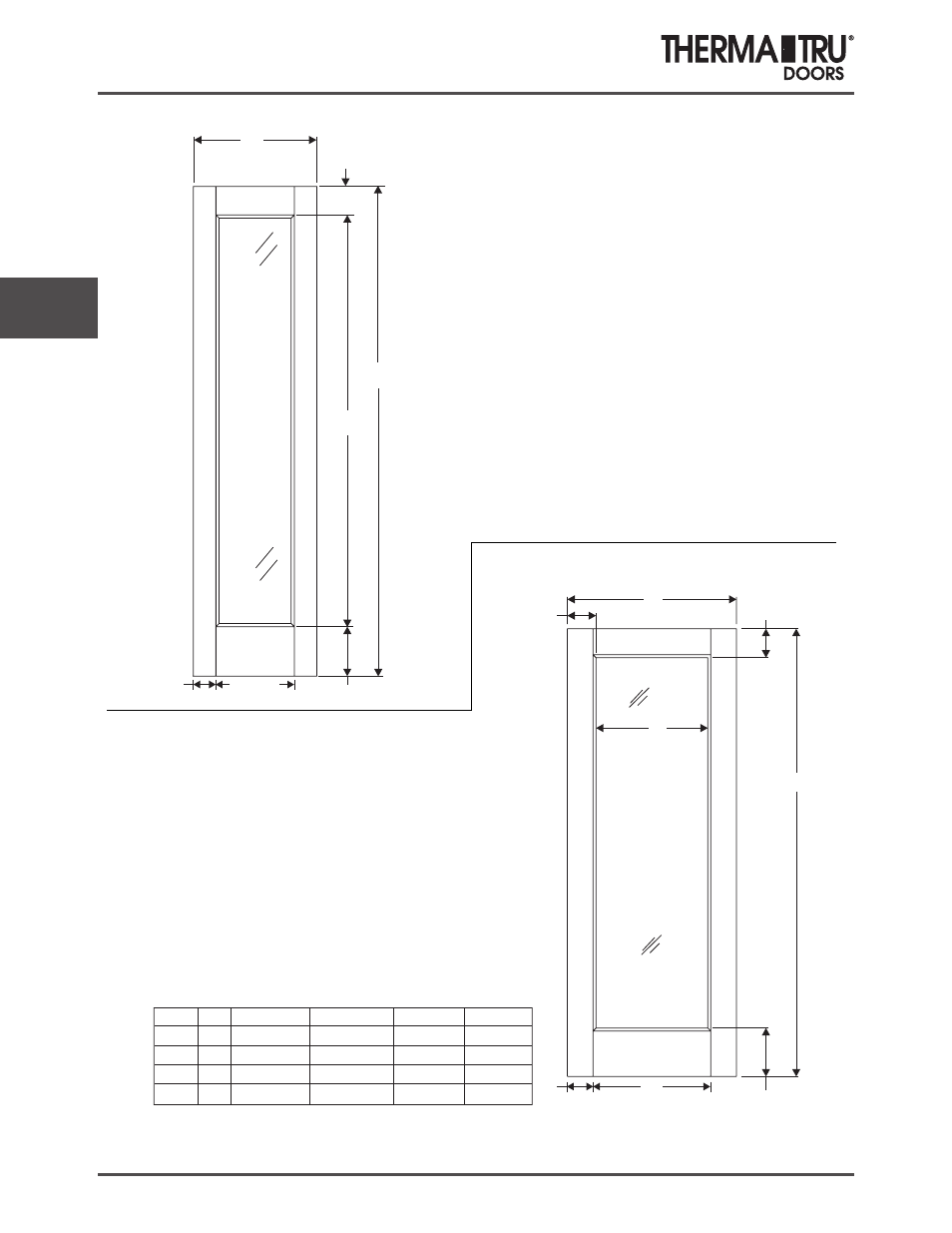

8’ Full Lite Flush-Glazed
(Slab - SN82014)
8’ Full Lite Flush-Glazed
(Slab - SN83025, SN82125,
SN82821, SN82621)
15-1/2” 4-1/4”
D E
B D
21-1/16”
21-1/16”
25-1/16”
25-1/16”
E
4-15/32”
5-15/32”
4-15/32”
5-15/32”
Daylight Opening: 14-1/4" x 78-13/16"
(1123 sq.in.)
Daylight Opening: 19-13/16" x 78-13/16"
(82180) (1561 sq.in.)
Daylight Opening: 23-13/16" x 78-13/16"
(82580) (1877 sq.in.)
