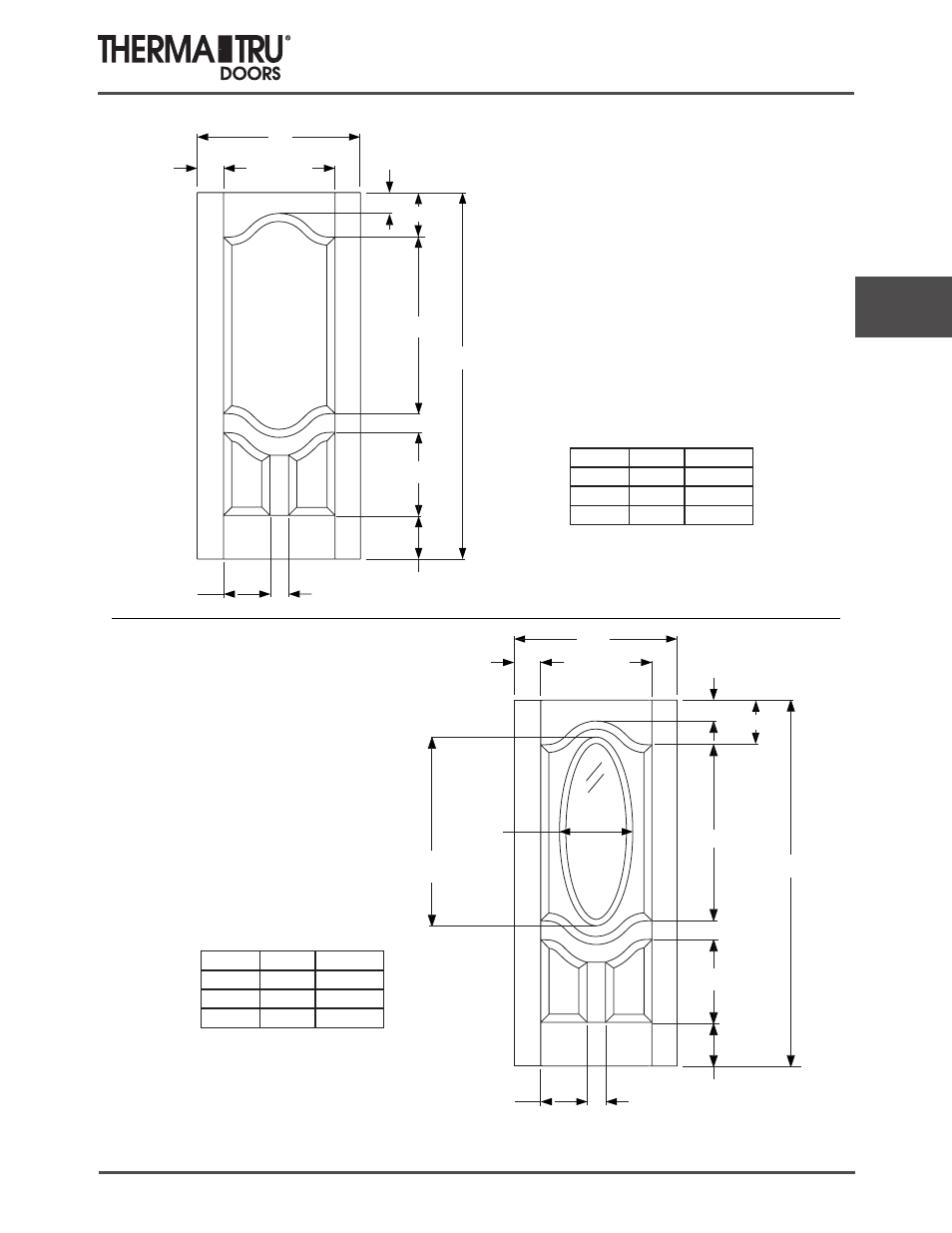

Smooth-Star
Door Panel
Dimensions
Comp 5 2014 (BOOK SIZE) 5.17
6/8 Smooth-Star Doors
10-1/16”
B 24-1/8”
A
4”
4-13/32”
17-15/16”
4-3/32”
9-17/32”
38-3/32”
41-25/32”
9-19/32”
17-23/32”
79-1/4”
10-1/16”
B 24-1/8”
A
4”
4-13/32”
17-15/16”
9-17/32”
38-3/32”
4-3/32”
9-19/32”
79-1/4”
Size A B
2/8 32” 3-15/16”
2/10 34” 4-15/16”
3/0 36” 5-15/16”
Size A B
2/8 32” 3-15/16”
2/10 34” 4-15/16”
3/0 36” 5-15/16”
3/4 Deluxe Oval 2 Panel
(1640)
(Slab-SS755)
3 Panel Scroll
(Slab-SS755)
(Impact-SS755H)
Daylight Opening: 14-23/32" x 38-25/32"
(442 sq.in.)
