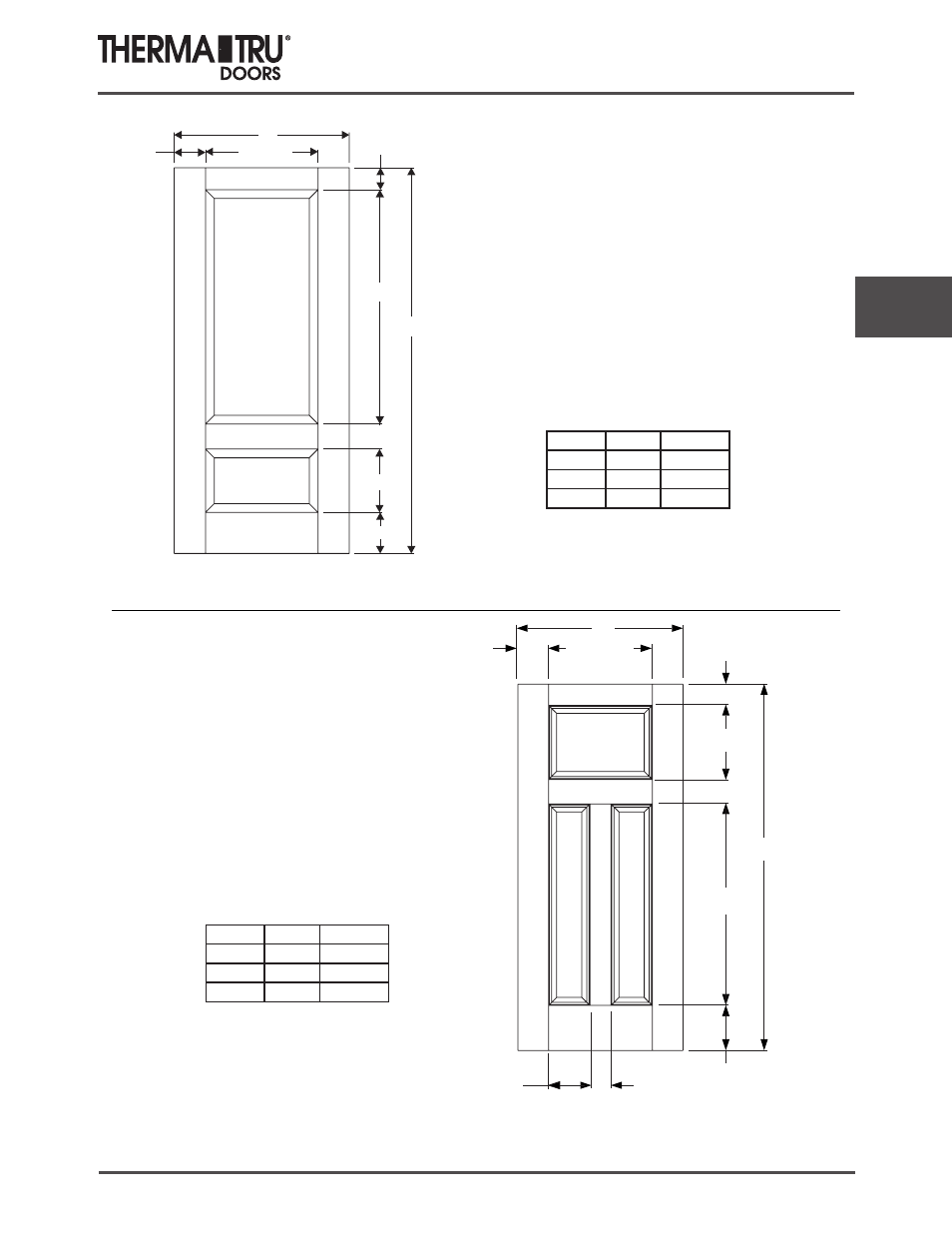

Smooth-Star
Door Panel
Dimensions

Comp 5

2014 (BOOK SIZE)

5.11

6/8 Smooth-Star Doors

B

A

23-1/8

4-9/16”

79-1/4

48-1/8

13

9-9/16”

A

B

4-17/32”

22-11/32”

4-17/32”

79-1/4”

16-3/32”

5-11/32”

43-23/32”

9-9/16”

8-29/32”

Size

A

B

2/8

32”

4-27/32”

2/10

34”

5-27/32”

3/0

36”

6-27/32”

Size

A

B

2/8

32”

4-7/16”

2/10

34”

5-7/16”

3/0

36”

6-7/16”

2 Panel 3/4 Top

(Slab-SS200)

(Impact-SS200H)

2 Panel Craftsman

(Slab - SS203)

(Impact - SS203H)
