Smooth-Star
Door Panel
Dimensions
Comp 5 2014 (BOOK SIZE) 5.35
6/8 Smooth-Star
Noise Reduction Doors

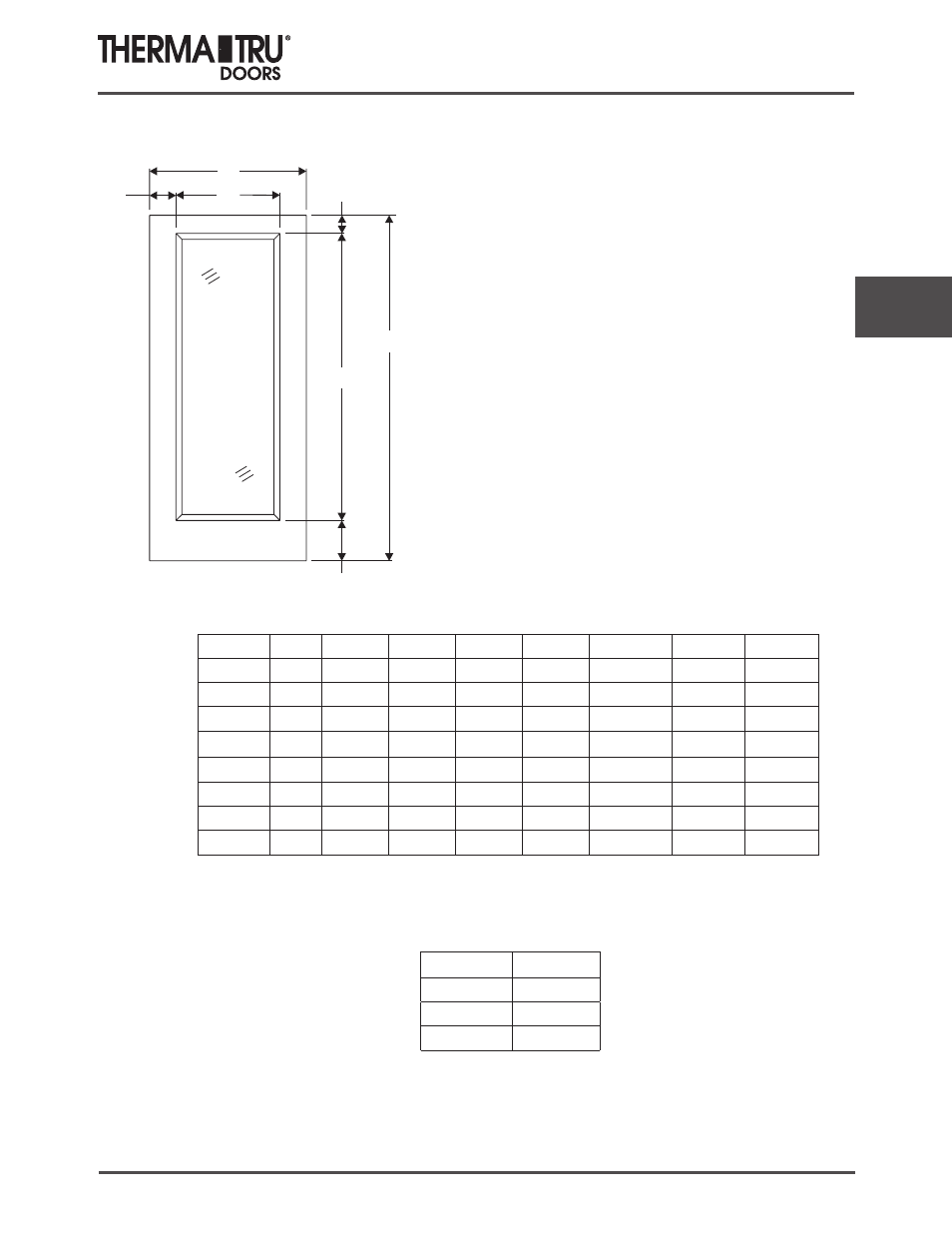

A
B C E
G
D
F
Full Lite Flush
(2064, 2264)
(Slab - S010STC, SP010STC)
(Slab - S7010STC)
Size A B C D E 6/8 F 6/6 F 7/0 F
2/6 30” 4-1/16” 21-7/8” 65-7/8” 4-5/32” 9-7/32” 6-21/32” 13-7/32”
2/6 EC 30” 4-1/16” 21-7/8” 65-7/8” 3-1/32” 10-11/32” N/A N/A
2/8 32” 5-1/16” 21-7/8” 65-7/8” 4-5/32” 9-7/32” 6-21/32” 13-7/32”
2/8 EC 32” 5-1/16” 21-7/8” 65-7/8” 3-1/32” 10-11/32” N/A N/A
2/10 34” 5-1/16” 23-7/8” 65-7/8” 4-5/32” 9-7/32” 6-21/32” 13-7/32”
2/10 EC 34” 5-1/16” 23-7/8” 65-7/8” 3-1/32” 10-11/32” N/A N/A
3/0 36” 6-1/16” 23-7/8” 65-7/8” 4-5/32” 9-7/32” 6-21/32” 13-7/32”
3/0 EC 36” 6-1/16” 23-7/8” 65-7/8” 3-1/32” 10-11/32” N/A N/A
EC - ELEVATED CUTOUT 6/8 HEIGHT ONLY
Height G
6/6 76-23/32”
6/8 79-1/4”
7/0 83-1/4”
Note:
For Optional Grille Locations,
See Arch 1.
Daylight Opening: 20-15/16" x 62-15/16"
(2264) (1317 sq.in.)
Daylight Opening: 18-29/32" x 62-29/32"
(2064) (1252 sq.in.)
