Smooth-Star
Door Panel
Dimensions
5.24 2014 (BOOK SIZE) Comp 5

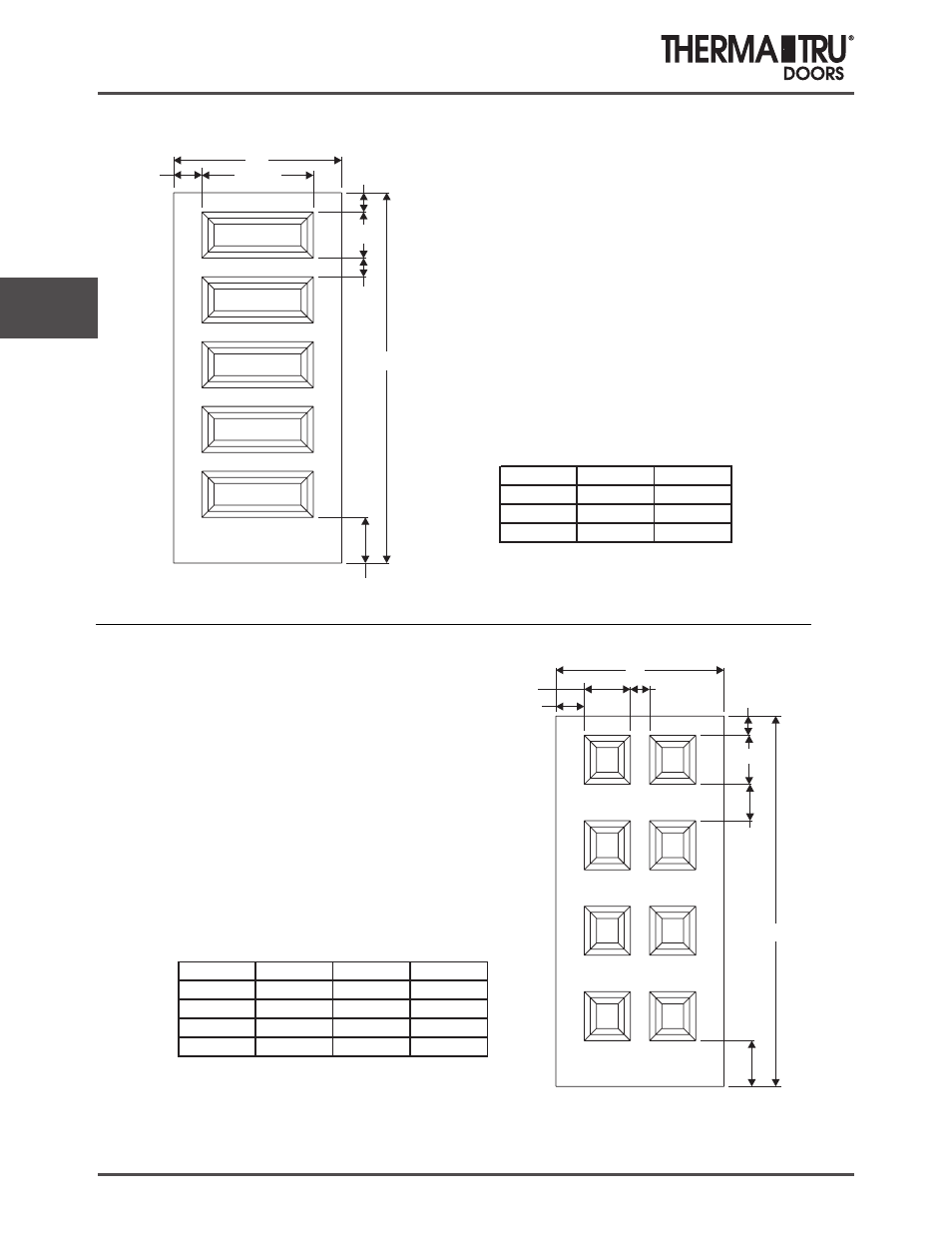

6/8 Smooth-Star Raised Panel Doors
A
B 23-7/8 ”
79-1/4 ”
4-1/8 ”
9-7/8 ”
4 ”
9-3/4 ”
Size A B
2/8 32” 4-1/16”
2/10 34” 5-1/16”
3/0 36” 6-1/16”
Raised 5 Panel Flush
(DP1024SS)
(Slab-SS010)
B
9-7/8 ” C
A
4-1/8 ”
10-1/2 ”
7-25/32 ”
9-3/4 ”
79-1/4 ”
Size A B C
2/6 30” 3-31/32” 2-5/16”
2/8 32” 4-1/16” 4-1/8”
2/10 34” 5-1/16” 4-1/8”
3/0 36” 6-1/16” 4-1/8”
Raised 8 Panel Flush
(DP1010SS)
(Slab - SS010)
