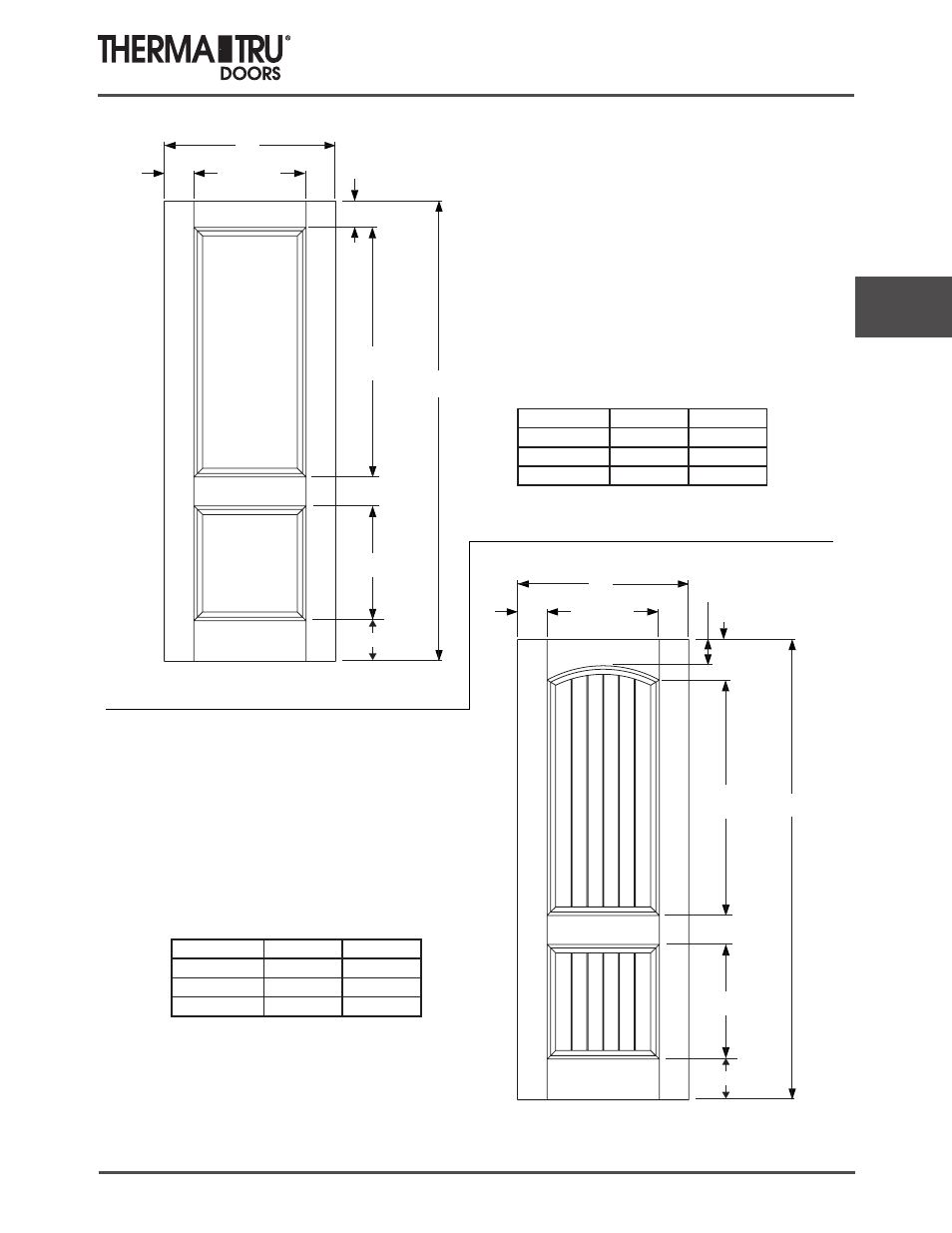

Therma-Tru COMP 5 Smooth-Star Door Panel Dimensions - Book Size - Manual (Page 31)

Smooth-Star
Door Panel
Dimensions
Comp 5 2014 (BOOK SIZE) 5.31
8/0 Smooth-Star Doors
A
23-1/8” 8-13/32”
95-1/4”
6”
23-3/4”
48-3/4”
B
5-15/32”
A
23-1/8” 5-15/32”
95-1/4”
6”
23-3/4”
51-11/16”
B
Size A B
2/8 32" 4-7/16"
2/10 34" 5-7/16"
3/0 36" 6-7/16"
Size A B
2/8 32" 4-7/16"
2/10 34" 5-7/16"
3/0 36" 6-7/16"
8’ 2 Panel Square Top
(Slab - S8220
(Impact - S8220H)
8’ 2 Panel Plank Soft Arch
(Slab - S8205)
(Impact - S8205H)
8-11/32”
8-11/32”
