Smooth-Star
Door Panel
Dimensions

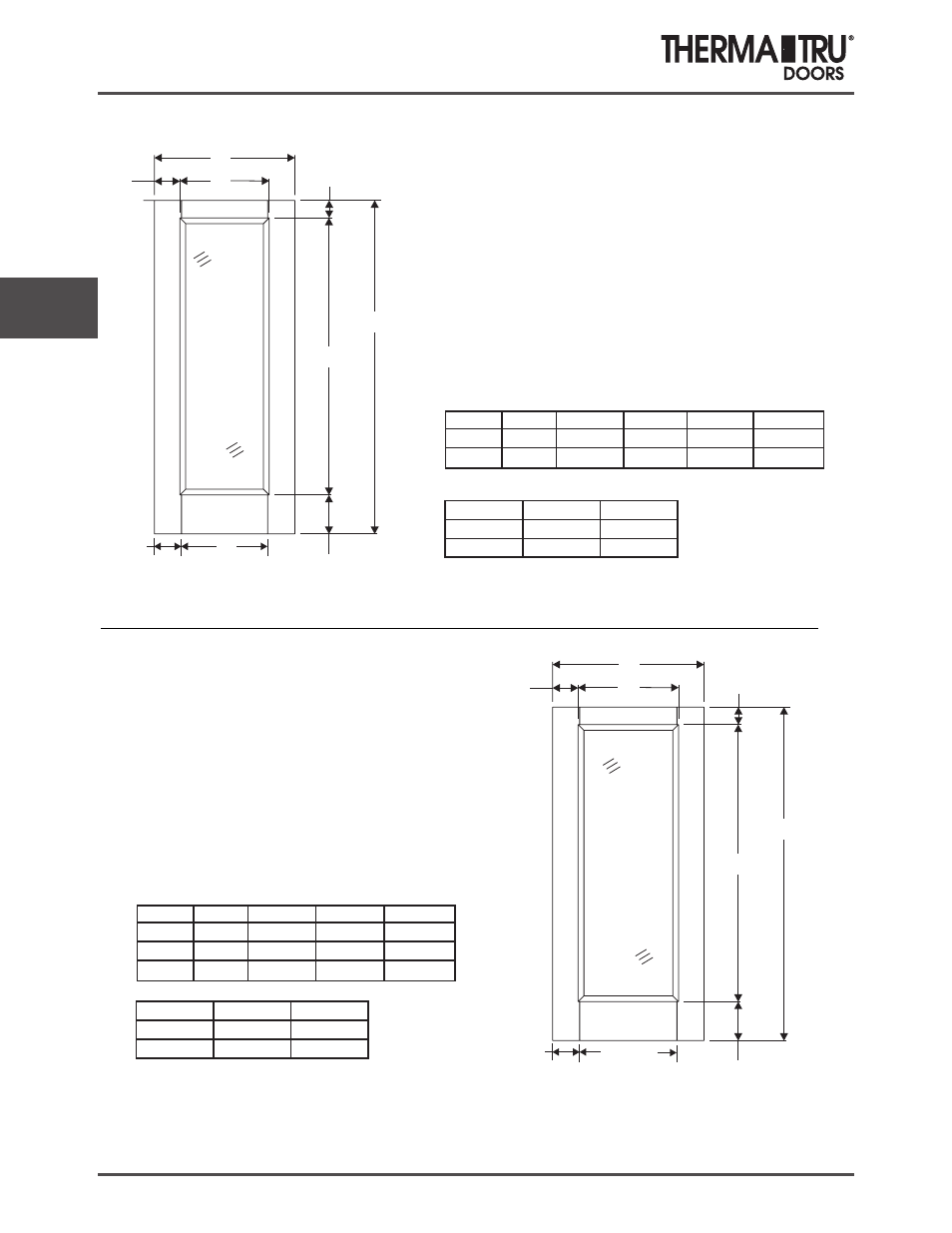

5.18 2014 (BOOK SIZE) Comp 5
6/8 Smooth-Star Doors
A
B C 4-5/32”
E
65-7/8”
D
A
B C 4-5/32”
E
65-7/8”
D
Size A B C
2/8 32” 4-1/16” 23-7/8”
2/10 34” 5-1/16” 23-7/8”
3/0 36” 6-1/16” 23-7/8”
Size A B C
2/6 30” 4-1/16” 21-7/8”
2/8N 32” 5-1/16” 21-7/8”
Note:
For Optional Grille Locations,
See Arch 1.
*Impact slab not available.
*Impact slab not available.
Height D E
*6/6 6-11/16” 76-23/32”
6/8 9-7/32” 79-1/4”
Height D E
*6/6 6-11/16” 76-23/32”
6/8 9-7/32” 79-1/4”
Note:
For Optional Grille Locations,
See Arch 1.
Full Lite w/ Stile Lines
(108N, 118N, 128N, 198N, 916N, 2064)
(Impact - 108NH, 118NH, 128NH, 916NH)
(Slab - SO2064, SS060N)
(Impact - SS060NH)
Full Lite w/ Stile Lines
(108, 118, 128, 198, 916, 2264)
(Impact - 108H, 118H, 128H, 198H, 916H)
(Slab - SO2264, SS060, SS400, SS020)
(Impact - SS060H, SS400H)
F G
F
21”
23-1/8”
G
4-1/2”
4-7/16”
23-1/8” F
F
4-7/16”
5-7/16”
6-7/16”
Daylight Opening: 20-15/16" x 62-15/16"
(1317 sq.in.)
Daylight Opening: 18-29/32" x 62-29/32"
(1189 sq.in.)
