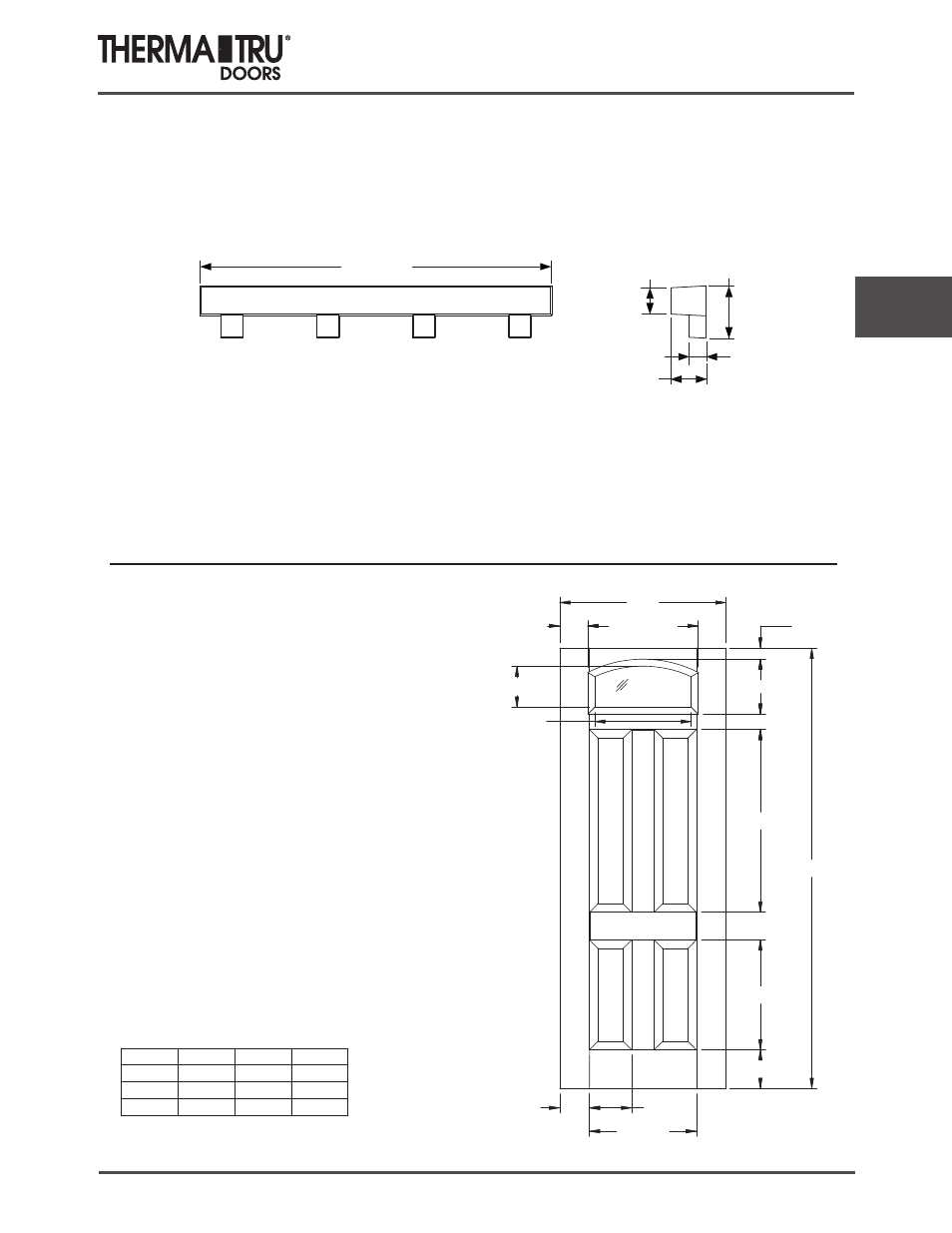

Smooth-Star
Door Panel
Dimensions

Comp 5

2014 (BOOK SIZE)

5.33

8/0 Smooth-Star Doors

4 Block Dentil Shelf

(Shelf-DSW4BLK)

25-3/8”

2-5/8”

1-5/16”

1-5/16”

2-5/8”

8' Camber Top Lite 4 Panel

(Glass - 2210A)

(Slab - S8060)

95 1/4"

A

B

23 29/32"

2 13/32"

11 29/32"

3 5/16"

39 1/2"

23 3/4"

8 3/8"

8 29/32"

20 29/32"

Size

A

B

C

2/8

32"

4-1/16" 4-7/16"

2/10

34"

5-1/16" 5-7/16"

3/0

36"

6-1/16" 6-7/16"

C

23 1/8"

9 1/8"

Daylight Opening: 20-29/32" x 8-29/32"

(170 sq.in.)
