Smooth-Star
Door Panel
Dimensions
Comp 5 2014 (BOOK SIZE) 5.13

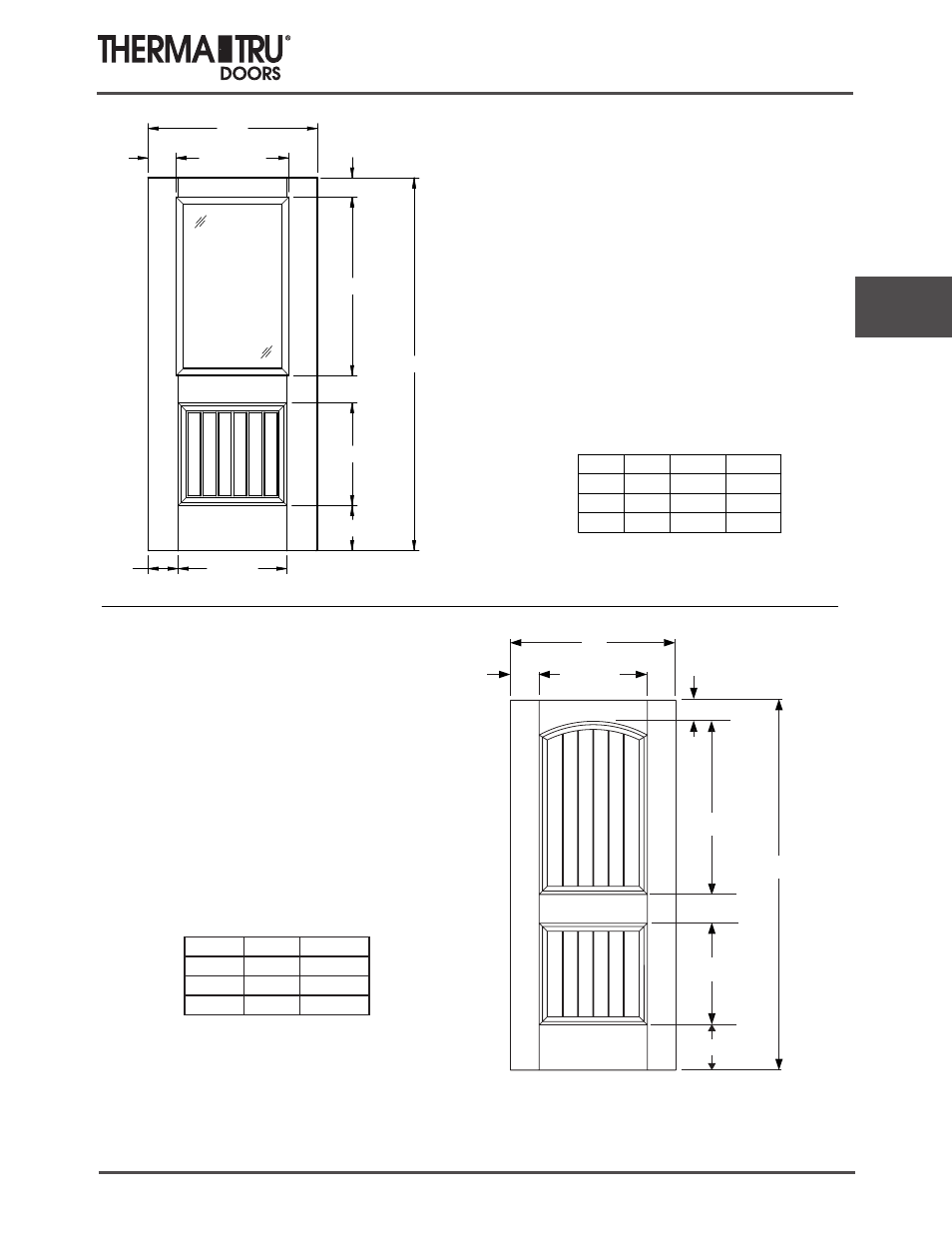

6/8 Smooth-Star Doors
A
B 23-1/8”
4-19/32”
79-1/4”
21-13/16”
37-5/32”
Size A B
2/8 32” 4-7/16”
2/10 34” 5-7/16”
3/0 36” 6-7/16”
2 Panel Plank Soft Arch
(Slab - SS205)
(Impact - SS205H)
9-9/16”
A
B 23 29/32"
37 29/32"
21 13/16"
C 23 1/8"
Half Lite 1 Panel Plank
(Glass - 104, 137, 612, 904, 2236)
(Impact Glass - 104H, 612H, 904H)
(Slab - SS205)
(Impact Slab - SS205H)
79 1/4"
4 5/32"
9 9/16"
Size A B C
2/8 32" 4-1/16" 4-1/4"
2/10 34" 5-1/16" 5-1/4"
3/0 36" 6-1/16" 6-1/4"
Daylight Opening: 20-15/16" x 34-15/16"
(729 sq.in.)
Note:
For Optional Grille Locations,
See Arch 1.
