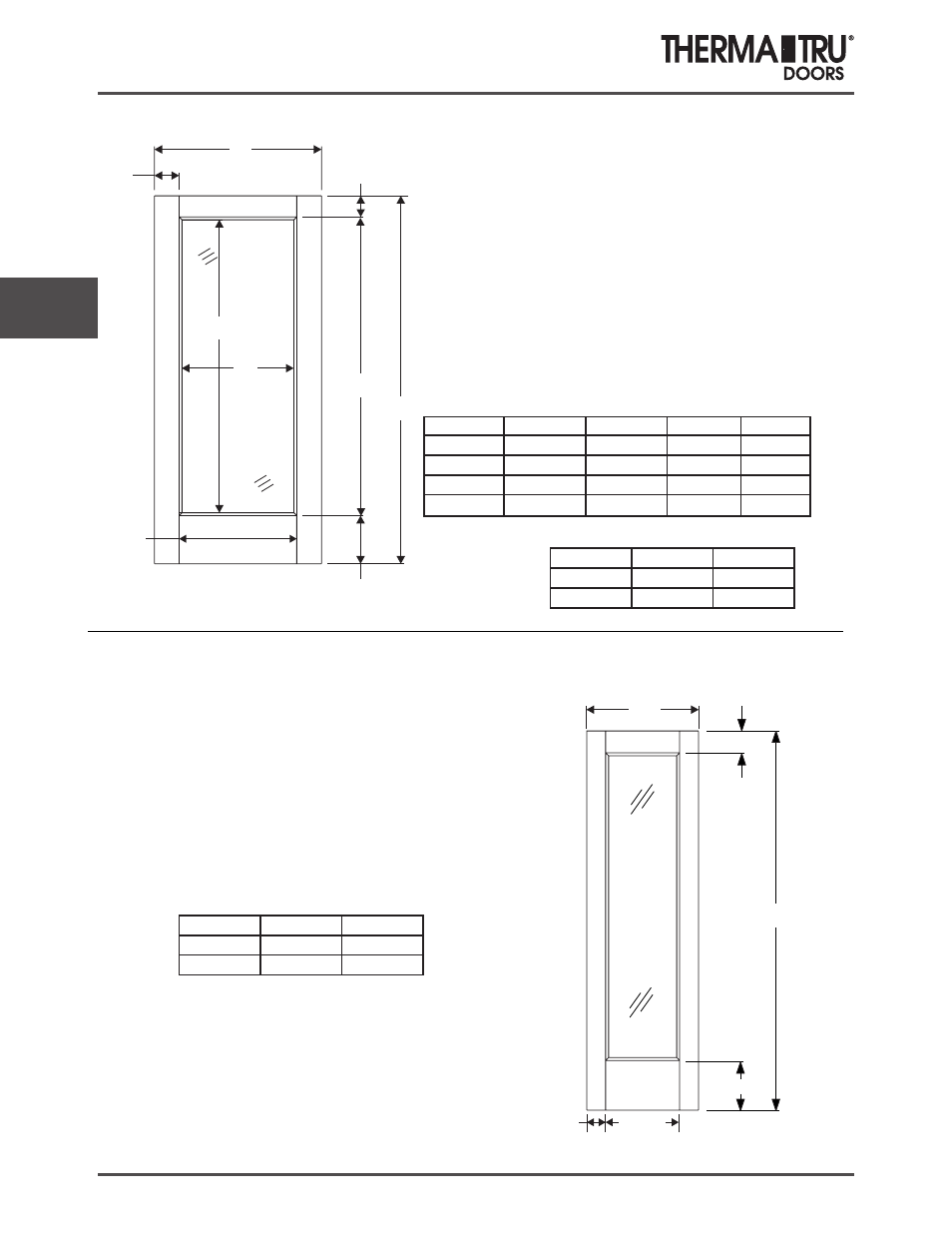

Smooth-Star
Door Panel
Dimensions

5.22

2014 (BOOK SIZE)

Comp 5

6/8 Smooth-Star Flush-Glazed Doors

A

B

4-17/32”

E

D

63-1/8”

C

64-3/8”

B

24”

A

4-23/32”

Height

A

B

6/6

76-23/32”

7-5/8”

6/8

79-1/4”

10-5/32”

Height

D

E

6/6

76-23/32” 7-13/16”

6/8

79-1/4”

10-11/32”

Size

A

B

C

2/6

30”

4-3/8” 19-31/32”

2/8

32”

5-3/8”

2/10

34”

4-5/16”

24-3/32”

3/0

36”

5-5/16”

Note:

For Optional Grille Locations,

See Arch 1.

Full Lite Flush-Glazed

(Slab - SN_3025, SN_2125,

SN_2820, SN_2620)

Full Lite Flush-Glazed

(Slab - SN_2014)

Note:

For Optional Grille Locations,

See Arch 1.

F

21-1/4”

21-1/4”

25-3/8”

25-3/8”

F

15-1/2”

4-1/4”

Daylight Opening: 19-31/32" x 63-1/8"

(2064) (1261 sq.in.)

Daylight Opening: 24-3/32" x 63-1/8"

(2564) (1522 sq.in.)

19-31/32”

24-3/32”

Daylight Opening: 14-1/4" x 63-1/8"

(899 sq.in.)
