INSTALLATION INSTRUCTIONS
MODEL PBD2090A
READ THOROUGHLY BEFORE INSTALLING
CAUTION: This device for center hung doors only
INSTALLATION
1. Review the installations shown in figures A
through D. Center line of panic device deter-
mines location of release.
2. The locking bolt will function as long as it
enters the top latch bolt at some point. If it is
not possible to line up on the panic device
center line, a larger notch may have to be cut
in the lock stile of the door to clear the lock
latch bolt.
3. Remove bottom rod assembly.
4. A metal filler block must be placed in the top
rail at the point of automatic relock switch.
This block must be flush with the top of the
door (required for the automatic relock
switch). Because of variables, this filler block
is not supplied by SDC. Notch inside top rail
at relock switch.
5. After reinforcement tabs have been installed,

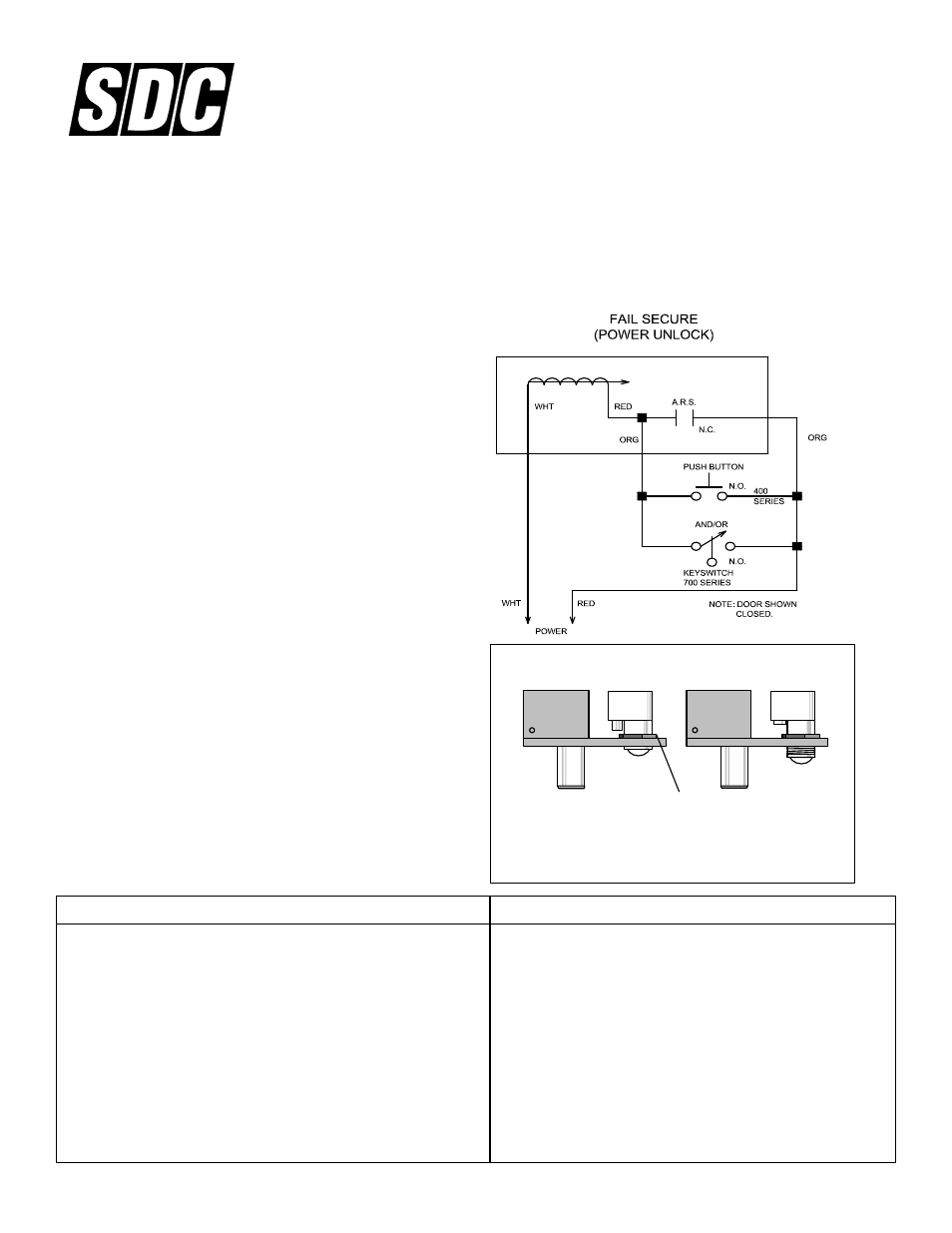

attach power leads as shown in wire diagram.
6. Insert lock into mortise and attach with
machine screws provided.
Faceplate: 10" x 1-1/2” x 1/8"
I.D. Requirements: 10" x 1-1/2" x 1-1/2"
Solenoid: Continuous Duty 2 Stage
24 VAC and 24 VDC available
Pull-in Coil – 57.6 watt/2.4 amp at 24VDC
Holding Coil – 8.4 watt/.35 amp at 24VDC
Bolt: Beveled stainless steel 1/2" diameter x 1/2" throw
B Bolt position indicates bolt locked or
unlocked 5 amp at 30VDC
D Door position indicates door open or
closed 5 amp at 30VDC
SPECIFICATIONS TROUBLESHOOTING
Problem
Top latch will not
stand up.
Bolt will not retract.
Bolt projects too soon.
Bolt projects when
door is open.
Solution
Adjust top latch.
Check voltage at lock. Check
rating of transformer. Check
for cracks in switch on side
of lock body.
Adjust auto relock switch
ARS has been bypassed.
Check wiring.
Fig. 2
Auto Relock Switch
Adjustable for Wide Door Gap
Loosen nut.
Turn assembly
clockwise for wide
door gap.
Tighten nut. Fig. 1
P:INSTALLATION INST\Electric Bolt Locks\INST-PBD2090A\INST-PBD2090A.vsd REV B 10-08 Page 1
