SDC 25 SERIES ELECTRIC STRIKE User Manual
SDC For Home
P:\INSTALLATION INST\Electric Strikes\INST-25 Series\TEMP-25 SERIES.vsd REV C 11-11 Page 1
801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • Fax: (805) 494-8861
www.sdcsecurity.com • E-mail: [email protected]

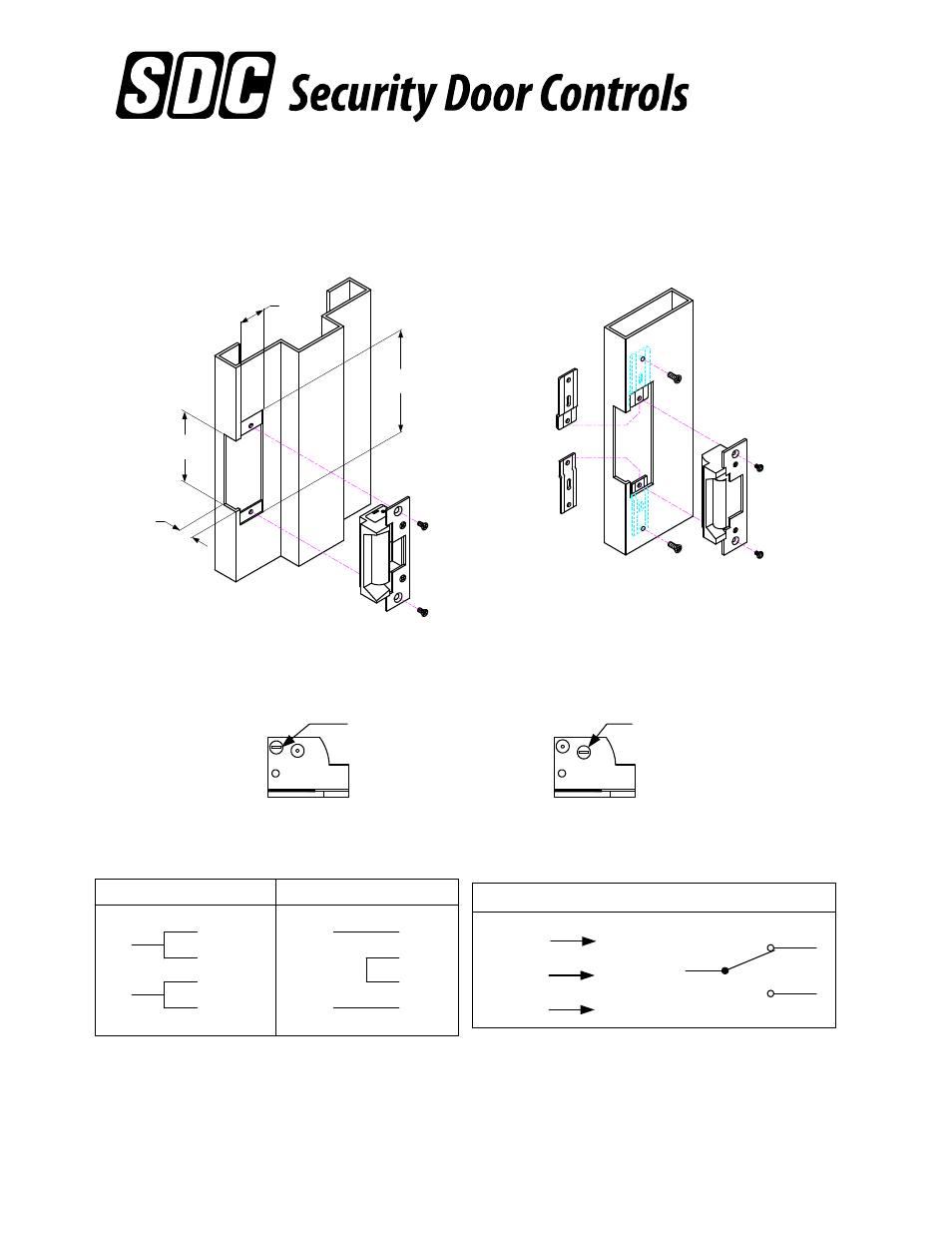

INSTALLATION INSTRUCTIONS
25 SERIES ELECTRIC STRIKE
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email [email protected]
FAIL
SAFE
SCREW
POSITION
FAIL
SECURE
SCREW
POSITION
ORANGE
COM
N/C
WHITE
COM
YELLOW
N/O
N/O
N/C
LATCH BOLT MONITOR
ELECTRICAL DATA:
200/100mA @12/24VDC
RED
BLACK
+
-
BLUE
WHITE
WHITE
RED
BLACK
+
-
BLUE
DC12V
DC24V
[17.5]
.688
2X
12/24
SCREWS
[mm]
Inches
[85.7]
3.375
[123.8]
4.875
[31.8]
1.250
MODEL 25-4
RETROFIT MOUNTING TABS
