SDC 15 SERIES ELECTRIC STRIKE User Manual
SDC For Home
P:\INSTALLATION INST\ELECTRIC STRIKES\INST-15 SERIES\INST-15.vsd REV H 07-13 Page 1
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email [email protected]
ELECTRICAL DATA
FAIL SAFE = 200mA @ 12VDC
50mA @ 24VDC
FAIL SECURE = 200mA @ 12VDC
50mA @ 24VDC
[31.75]
1.25
[123.83]
4.875
[22.23]
.875
[85.73]
3.375
Pressure
Sensitive Spacer
MOUNTING
TABS
#12-24 Screws
[31.75]
1.25
[22.23]
.875
[104.78]
4.125
[85.73]
3.375
[123.83]
4.875
Pressure
Sensitive Spacer
#12-24 Screws
Faceplate
1-1/4” x 4-7/8”
[31.75 x 123.83]

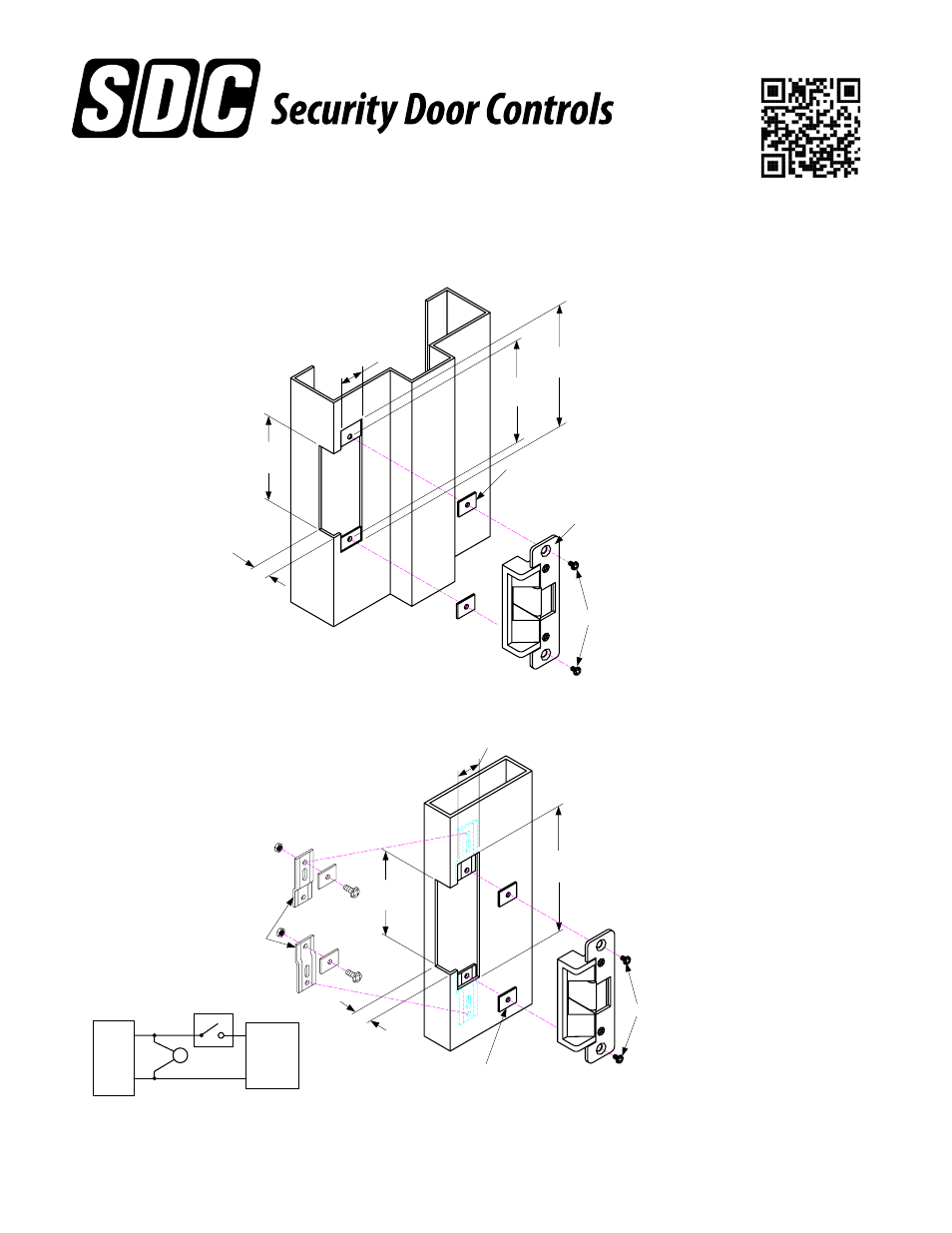

15 SERIES
ELECTRIC STRIKE
INSTALLATION INSTRUCTIONS
801 Avenida Acaso, Camarillo, Ca. 93041 • (805) 494-0622 • Fax: (805) 494-8861
www.sdcsecurity.com • E-mail: [email protected]
PS
AC
MOV
