SDC 1583 CABINET LOCK User Manual
Installation instructions cabinet lock 1583, Electronics 24v configuration, Electronics 12v configuration
P:\INSTALLATION INSTRUCTIONS\ELECTROMAGNETIC LOCKS\INST-1583\INST-1583.vsd REV B 05-11 Page 1

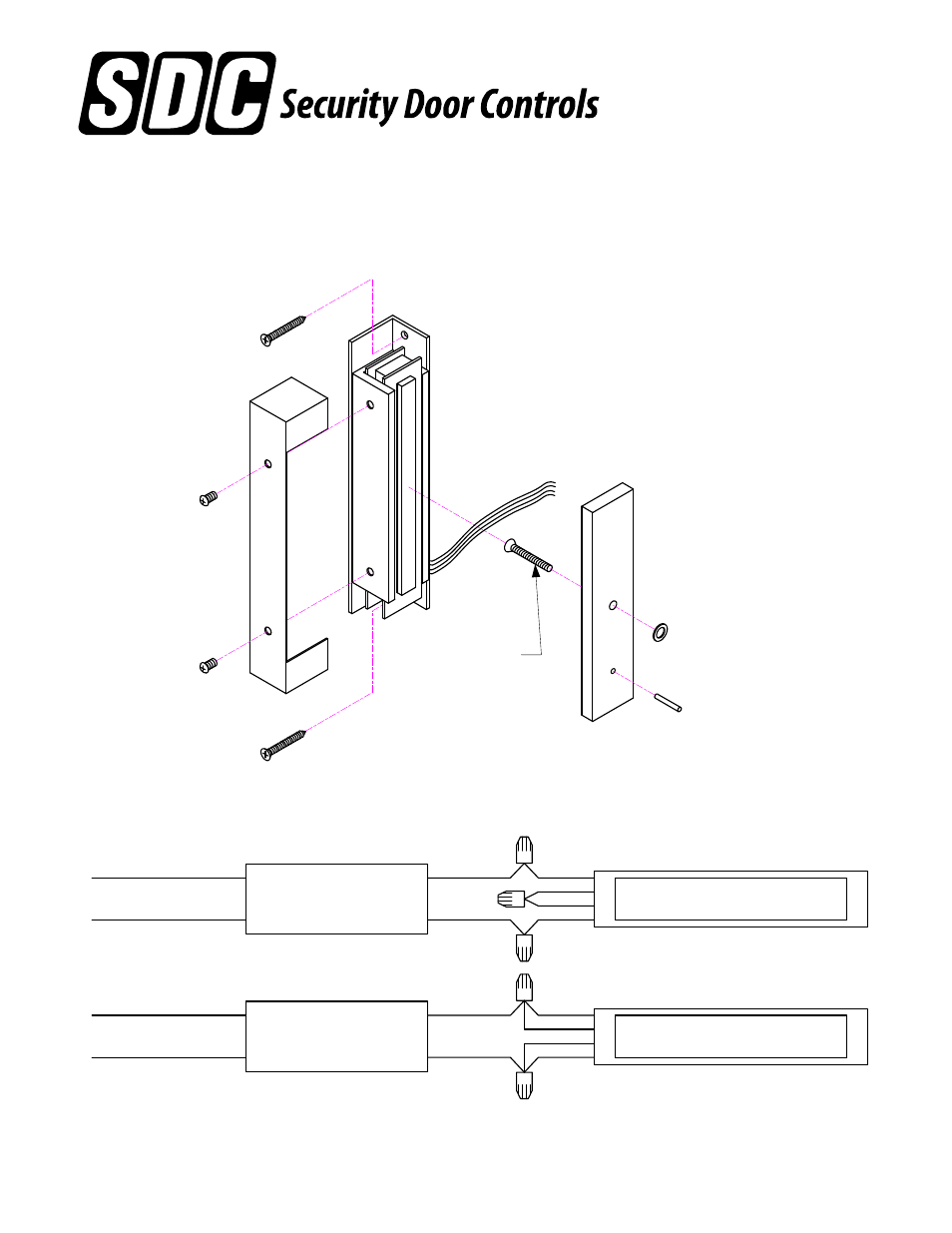

INSTALLATION INSTRUCTIONS
CABINET LOCK 1583
Wire per drawing below depending on Voltage.
24VDC - .25 Amp
12VDC - .45 Amp
#10-32 x 1.00"
PHIL FLT
801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 •
www.sdcsecurity.com • E-mail: [email protected]
ELECTRONICS
24V CONFIGURATION
BLK
RED
ORG
WHT
(+) RED/BLK
TO POWER
(-) WHT/BLK
RED
RED
VOLTAGE SELECTION
ELECTRONICS
12V CONFIGURATION
BLK
RED
ORG
WHT
(+) RED/BLK
TO POWER
(-) WHT/BLK
RED
RED
VOLTAGE SELECTION
