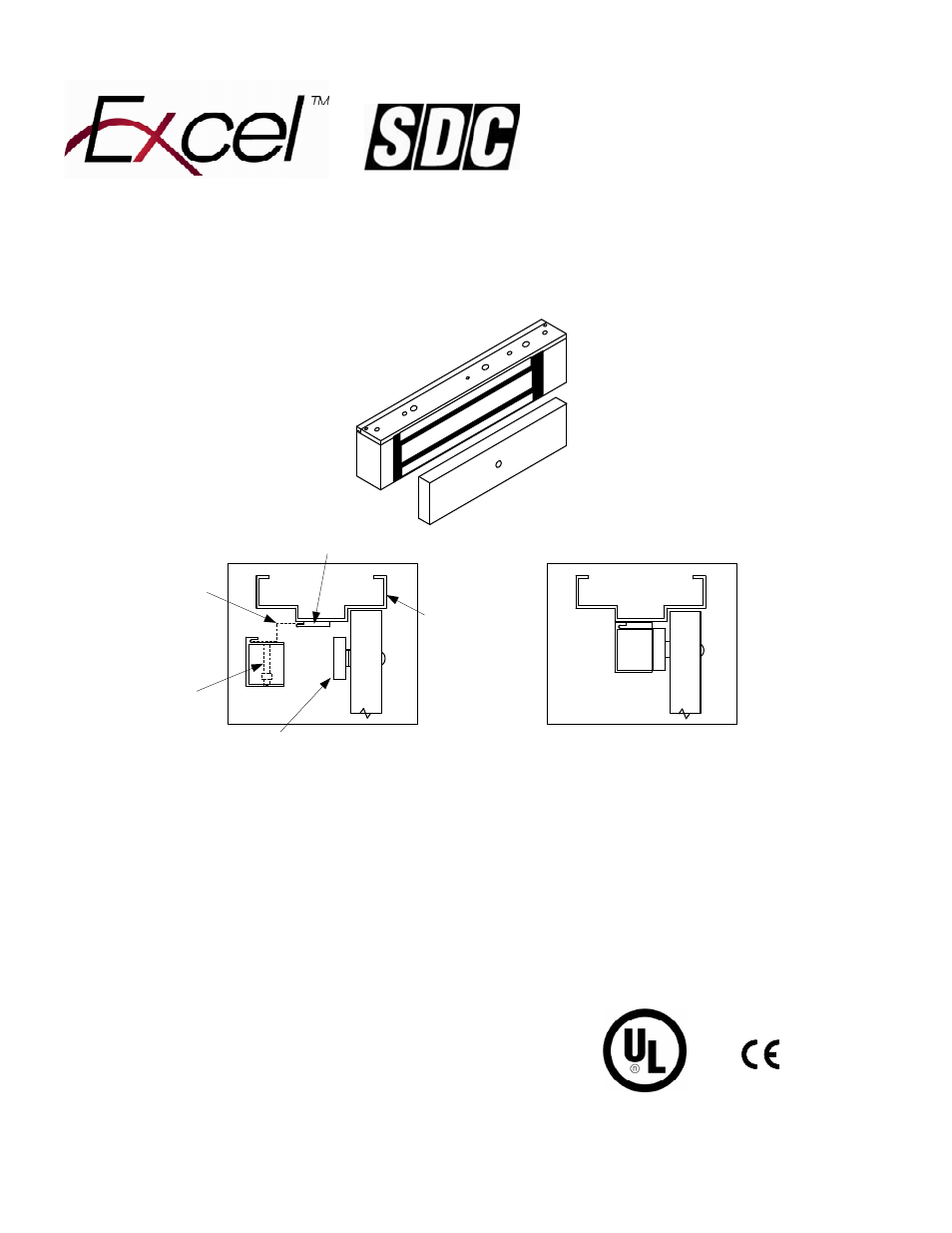

The E300 Series magnetic lock is mounted to the underside of the header, on the stop side of the
door. An inswing mounting kit (optional) can be used when mounting on the hinge side of the door.
P:\INSTALLATION INST\Electromagnetic Locks\EXCEL\INST-E300.vsd REV - 07-10 Page 1
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email [email protected]
INSTALLATION INSTRUCTIONS
E300 SERIES MAGNETIC LOCK
Electrical Instructions:
Use properly fused U. L. Listed Power Supply
Do not install a diode in parallel with any magnetic lock. A diode
will cause a delay when releasing the door and residual magnetism
to occur.
Although SDC recommends the use of a DC power supply, a
transformer with an adjacent mounted full wave bridge rectifier
may be used. A significant drop will occur when using a full wave
bridge rectifier.
Any low voltage condition will cause erratic operation of the
optional board sensor.
When using a full wave bridge rectifier all access controls and/or
release contacts must be located between the magnetic lock and rectifier
to ensure quick release.
Electrical Specifications:
Dual Voltage 12 or 24VDC
Power Consumption 360mA@12VDC
180mA@24VDC
DS Door Status Sensor SPDT, 500mA@30VDC
LS Lock Status Sensor SPDT, 2A@30VDC
Outswing
Quick Mount
Interlocking
Mounting Assembly
Mounting Screws
Armature
Interlocking
Mounting Plate
Frame
