Prescolite SLLED1 - Manual (Page 3)

www
.prescolite.com
•
Prescolite T
ollFree T
echnical
Support
1.888.PRS.4TEC
• Hours: 8am - 5pm ET
Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93017296
Instruction
Sheet
701 Millennium Blvd., • Greenville, SC 29607
With representatives offices in principal cities throughout North America.
Copyright 2008, 9/12 revision, All Rights Reserved - Printed in U.S.A.
DRY CONSTRUCTION
GASKET
TYPICAL
FACE OF HOUSING MUST
BE FLUSH OR PROTRUDE
SLIGHTLY FROM WALL FOR
PROPER SEAL.
CONDUIT
CONNECTION
HOUSING
FIGURE 5
CONDUIT
(BY OTHERS)
SUPPORT FRAME
(BY OTHERS)
HOUSING
3.87
HANGER
BARS
BRACKET
MOUNTING SCREWS

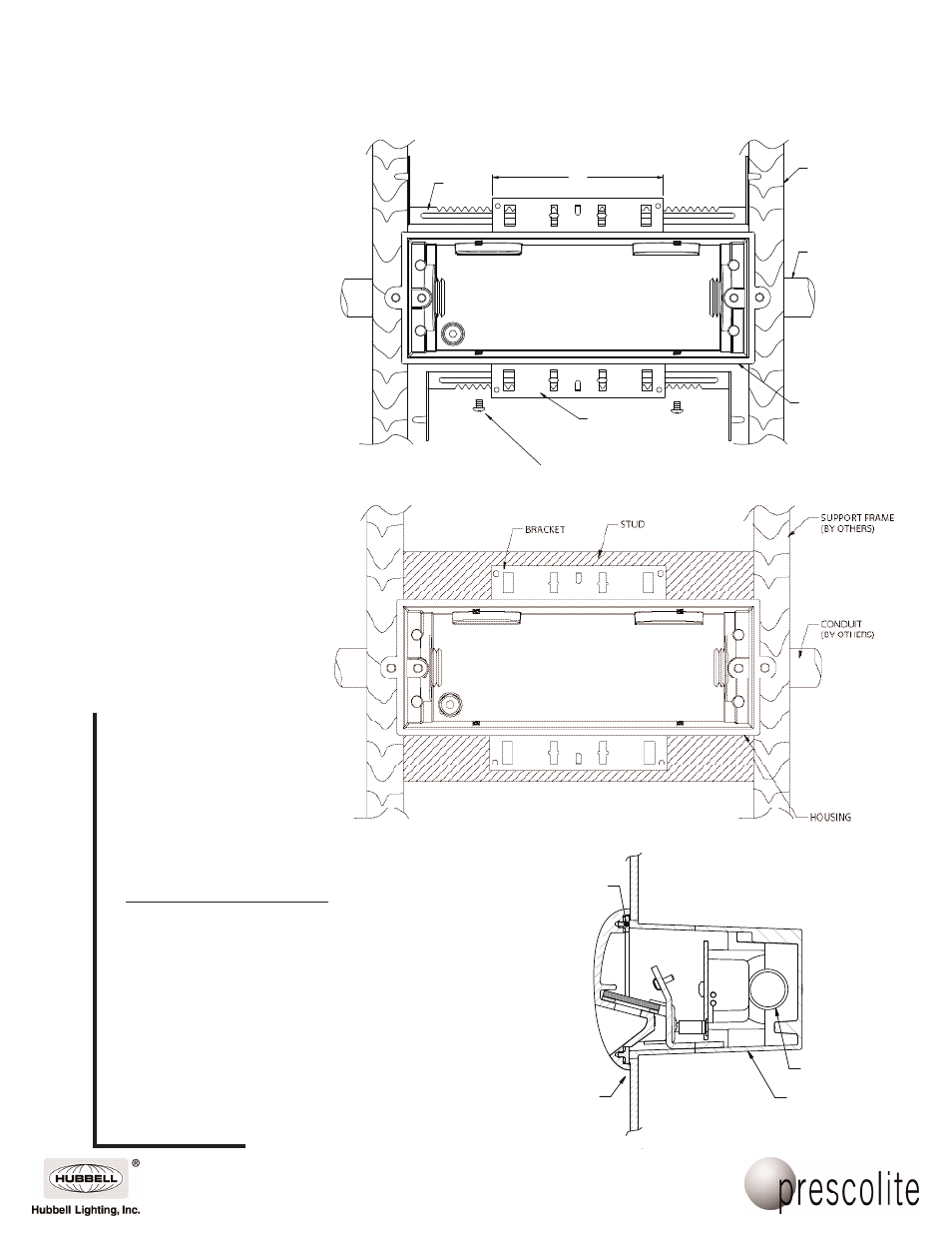

Installation Instructions Recessed LED Aisle Light – SLLED 1
For Wet or Drywall Installation (Housing Installation)
(For concrete installation see figure 2)
FIG. 4
FIG. 6
For Wet or Drywall Installation
1. Use the hanger bar bracket which is sold seperately as
SLMB.
2. Remove screws from housing and use them to secure
brackets to housing shown in figure 4.
3. Slip bar hangers into brackets.
4. Hold housing in desired position and drive bars into studs.
If needed reinforce with nails.
5. If desired brackets can be mounted directly to framing
members as shown in FIG 5.
6. Run supply wires in accordance with local and national
electical codes.
FIG. 5
