Installation Instructions Recessed LED Aisle Light- SLLED1
For Concrete Installation (Housing Installation)

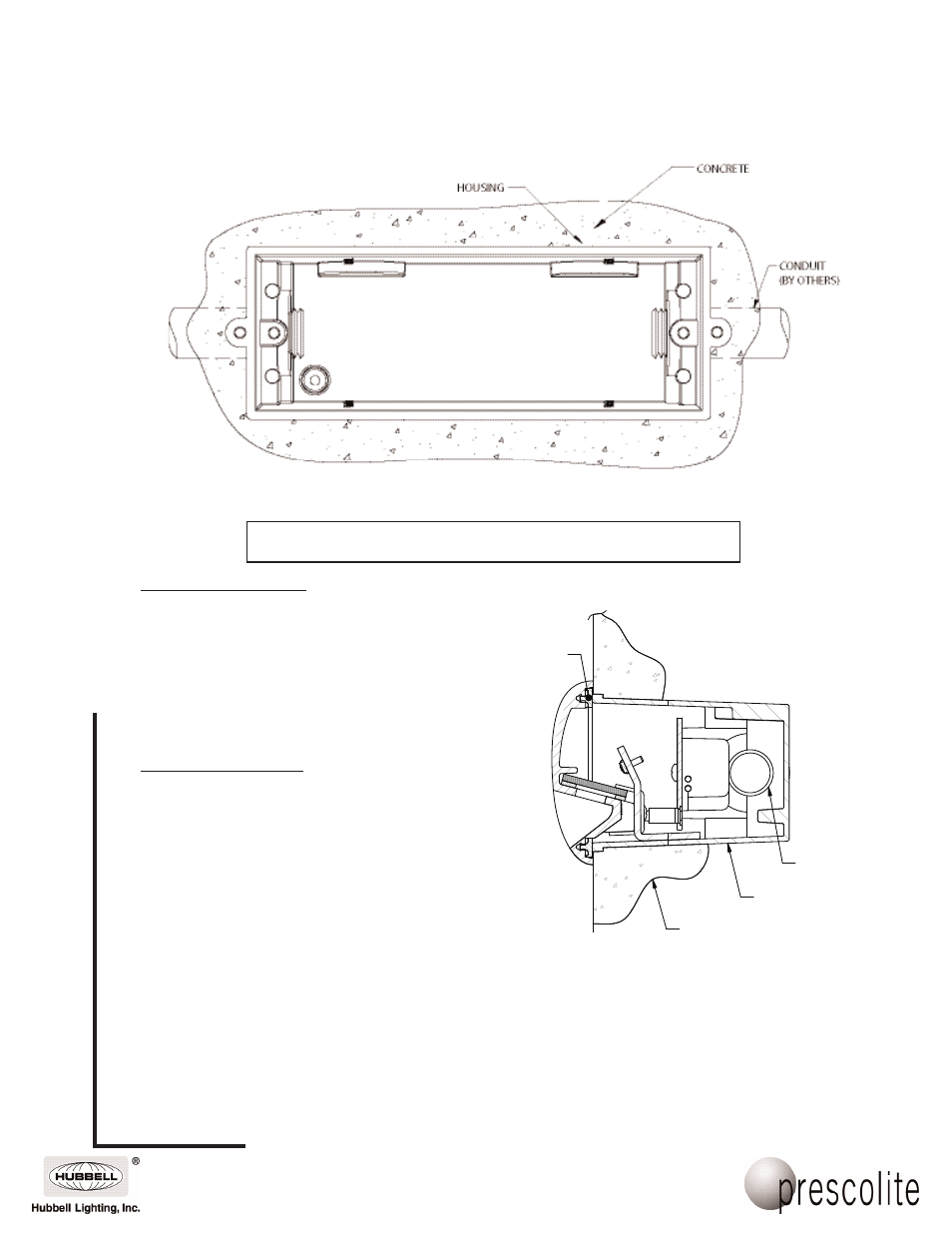

FIG. 2
CONCRETE
GASKET
TYPICAL
CONDUIT
CONNECTION
HOUSING
FIG. 3
For Concrete Installation
1. Select a threaded hole in housing to be used for
supply wire access. Insert plugs into threaded holes
not being used.
2. Attach housing with conduit mounted to concrete
form, housing flange face must be flush with con-
crete surface.
3. Run supply wires in accordance with local and
national electrical codes.
(For wet or drywall installation see figure 4)
For Masonry Installation
1. Select a threaded hole in housing to be used for
supply wire access. Insert plugs into threaded holes
not being used.
2. Remove one masonry brick from the wall at the
desired location for the fixture.
3. Insert the fixture housing into the wall and secure in
place with mortar. Front surface of housing must be
flush with masonry surface.
NOTE: IT IS RECOMMENDED THAT THE ALUMINUM HOUSING BE
COATED WITH AN ASPHALT PAINT CONTAING ALUMINUM PIGMENT.
NOTE:
PRESCOLITE CONCRETE MOUNTING BOX P/N: SLD12CMB IS TO BE USED WITH SLLED1 OR SLLED2
HOUSINGS ONLY.
