Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01863200

Instruction

Sheet

WET CEILING ADAPTOR (FLANGELESS)

SLOPE OF CEILING

DRY CEILING ADAPTOR (FLANGED)

MAJOR AXIS OF ADAPTOR

DRILL (2) 3/16” DIA HOLES

MINOR AXIS OF HOUSING

8-32 TINNERMAN NUTS

8-32 PAN HEAD SCREWS

FIXTURE HOUSING

NOTE: MOUNTING HOLES HAVE BEEN ROTATED

40° OUT OF POSITION FOR FIGURE 4.

FIGURE 4

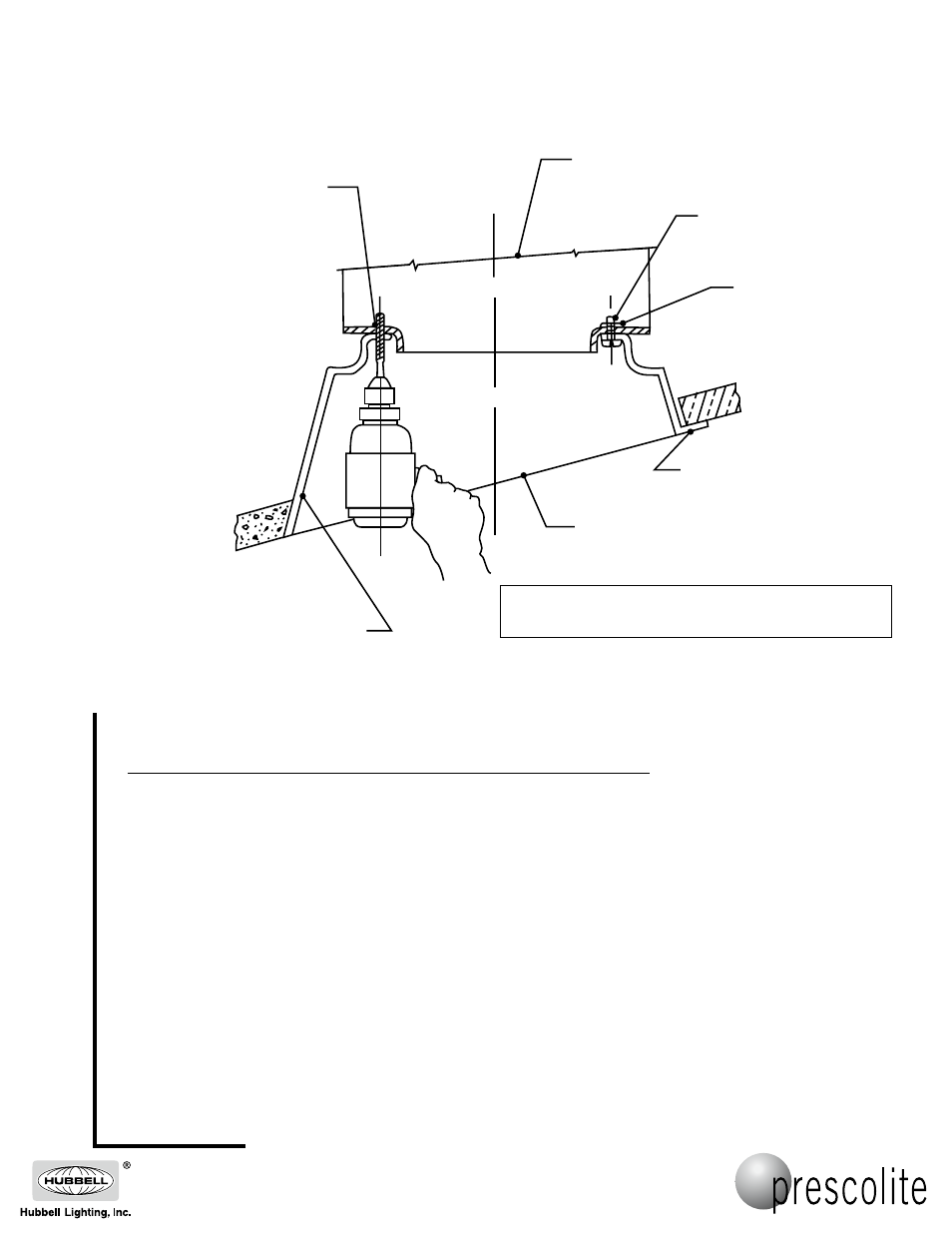

FIGURE 4. ATTACHMENT OF SCA 4/7 CEILING ADAPTORS TO FIXTURE HOUSINGS.

Place ceiling adaptor on housing over plaster flange.

Align MAJOR AXIS of ceiling adaptor with MINOR AXIS of fixture housing.

NOTE: THE (2) MOUNTING HOLES IN THE CEILING ADAPTOR ARE NOT LOCATED ON

THE MAJOR AXIS OF THE CEILING ADAPTOR AS SHOWN IN FIGURE 5, BUT ARE

LOCATED 40° OFF CENTER LINE OF THE MAJOR AXIS. THEREFORE, DO NOT ALIGN

CENTER LINE OF THE MOUNTING HOLESIN THE CEILING ADAPTOR WITH THE MINOR

AXIS OF THE HOUSING.

Use the (2) 13/64” dia. holes in the ceiling adaptor as drill guides to drill through the housing with a

3/16” dia. drill.

Secure ceiling adaptor to housing to housing with (2) 8-32 pan head self tapping screws and (2)

Tinnerman nuts (included in packet).

Turn to page 4 and follow FIGURE 5 instructions.
