Page 5: Overview, Configuring dip-switches

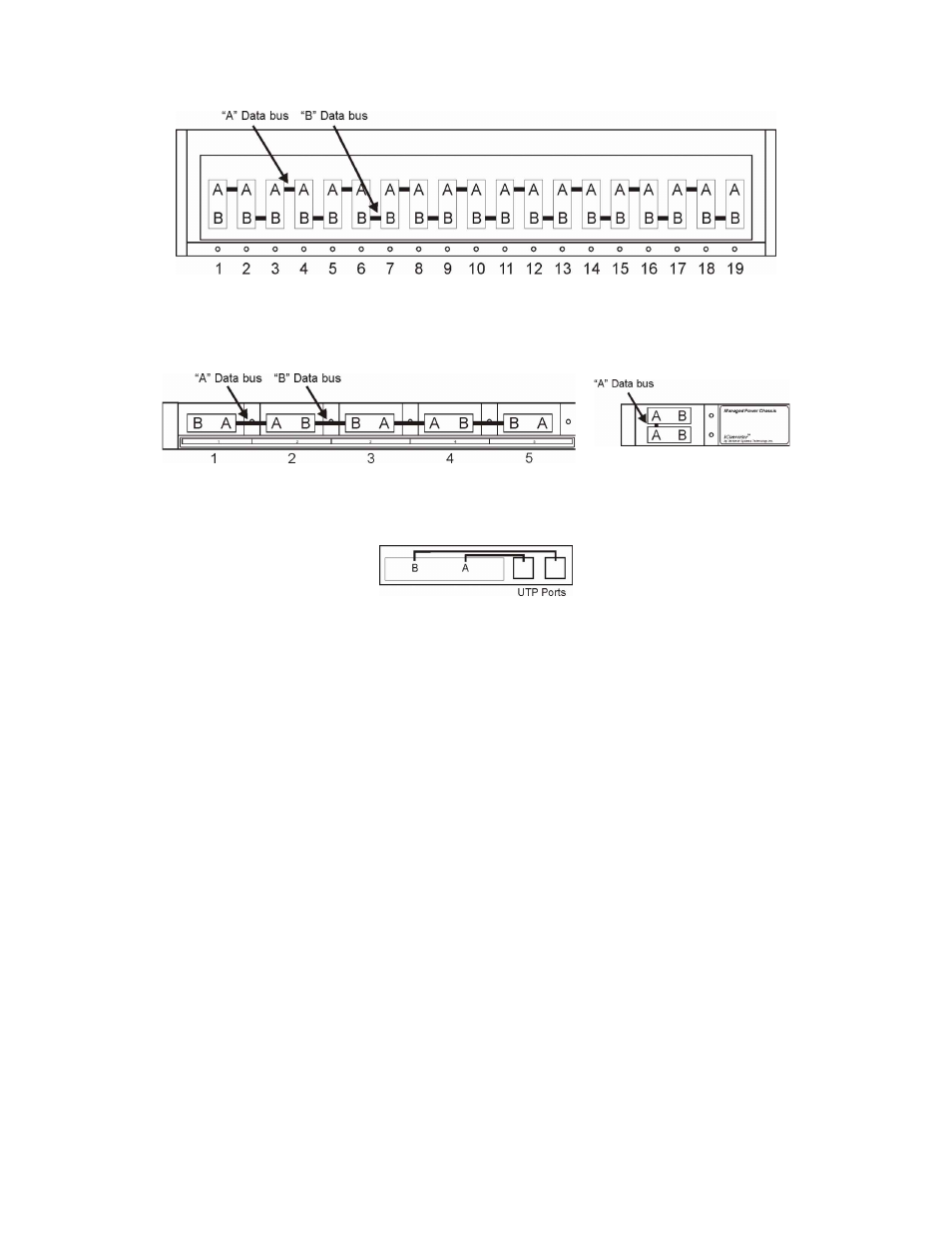

19-Module Chassis
5-Module Chassis
2-Module Chassis
1-Module Redundant Chassis
3.0
INSTALLATION PROCEDURE
3.1
OVERVIEW
The following steps outline the installation and configuration procedures for the 2FXM. Refer to the
specified sections for detailed instructions.
•
Configure DIP-switches (Section 3.2)
•
Installing the Module and Connecting Cables (Section 3.3)
•
Configure Module via Command Line Interface (Section 3.4)
•
Verify Operation (Section 3.5)
When the setup and configuration procedures are completed, the 2FXM has been configured with the basic
setup requirement for standard operation. To configure the module with additional features, see Section
4.0, “Detailed Module Configuration”.
Page 5
