Page 98
MTS Criterion
®
Series 40 Product Manual
98
Model C45.605Accessory Mounting Dimensions
Installation
Model C45.605Accessory Mounting Dimensions
Base beam
Crosshead

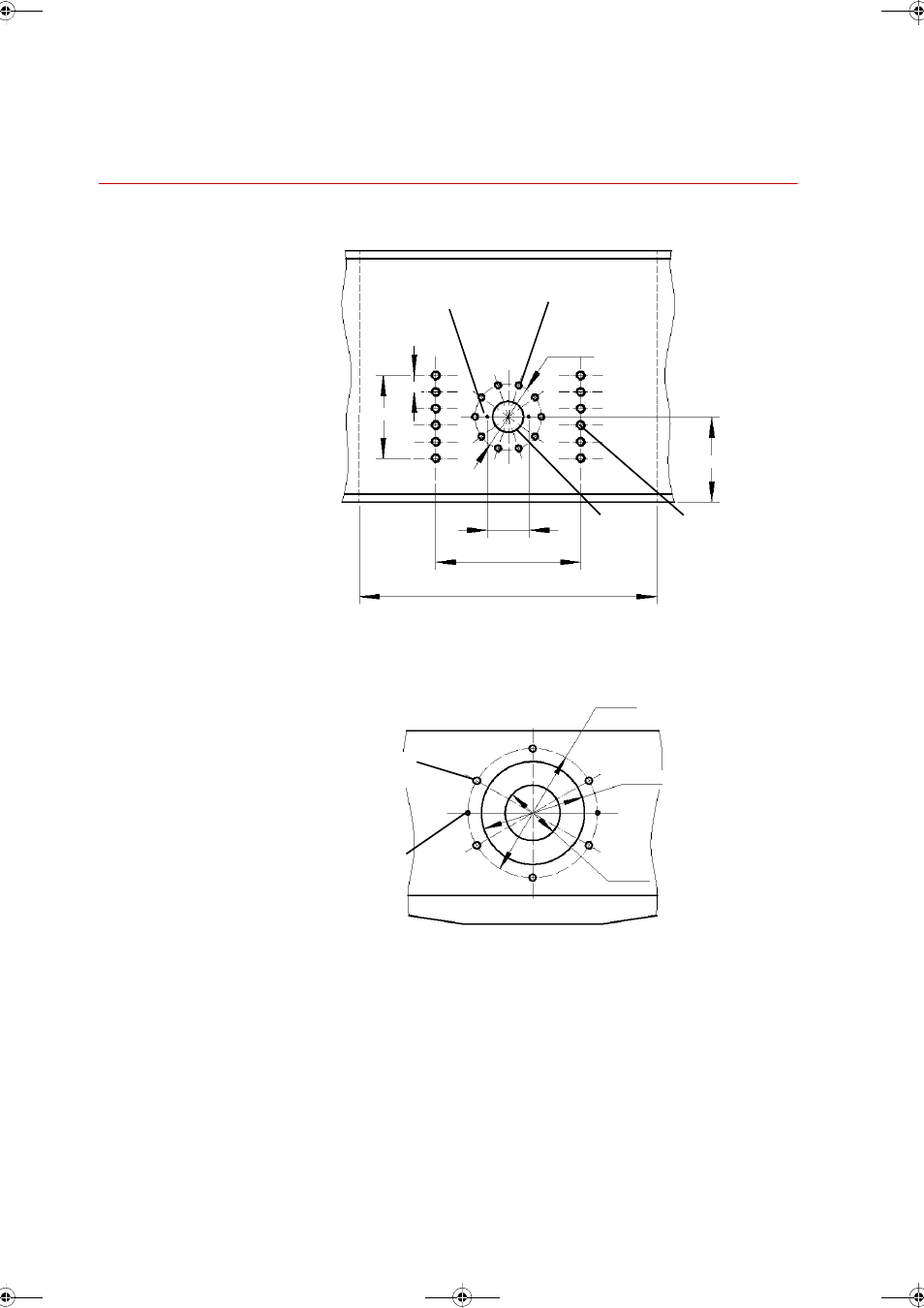

Model C45.605 Base Beam Mounting Dimensions
750 Horizontal Clearance
Φ5.4x12 Deep
DowelHole for Orientation
(2x)
M16-7H
(10x) 35 Deep
M20-7H(12x)
40 Deep
Φ160
40
350
206
100
200
Φ75 Deep 60
Model C45.605 Topside of Crosshead Mounting
Φ190
Φ5.4x12 Deep
Dowel Hole for Orientation
(2x)
M12-7H
(6x) 30 Deep
Φ152Deep 94
Φ82Thru
Criterion_product manual.book Page 98 Monday, July 28, 2014 3:52 PM
